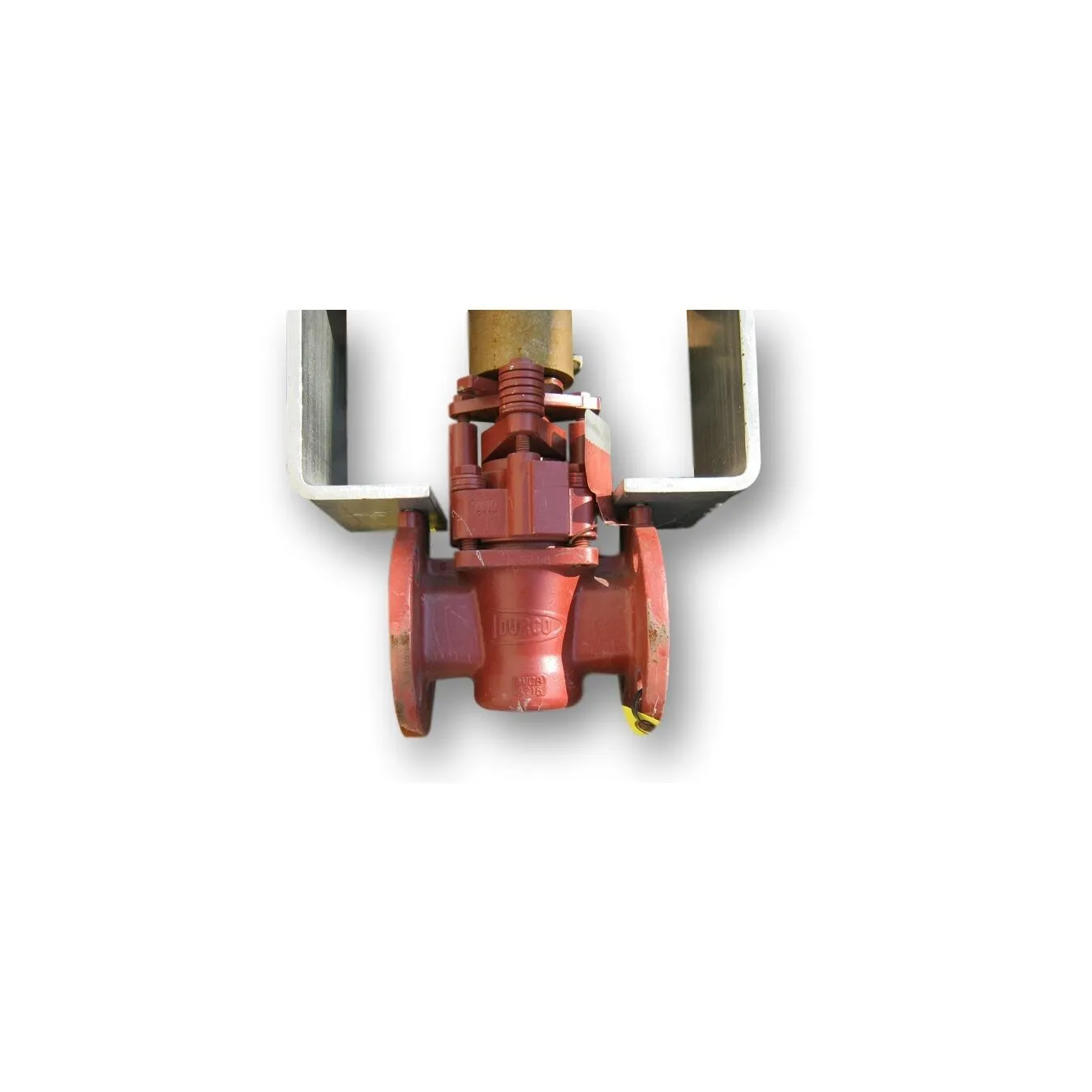

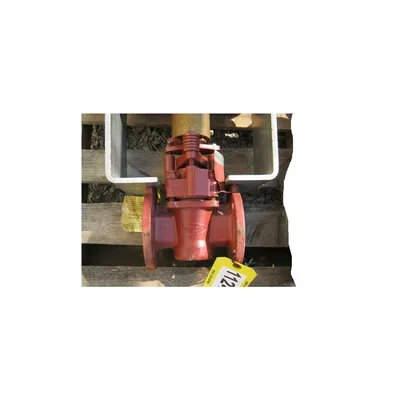

2" DURCO FLOWSERVE PROCESS PLUG VALVE 2TSG4-11C8LLT9M33AS

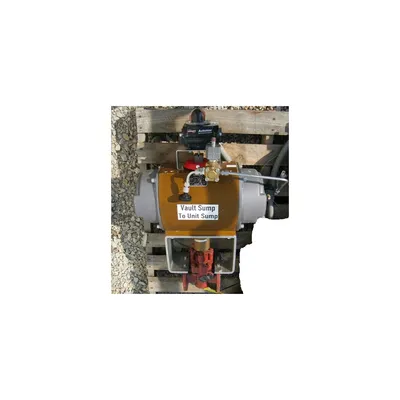

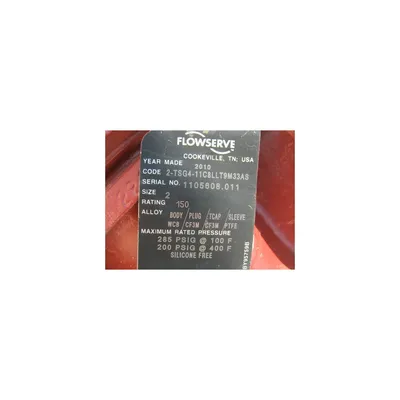

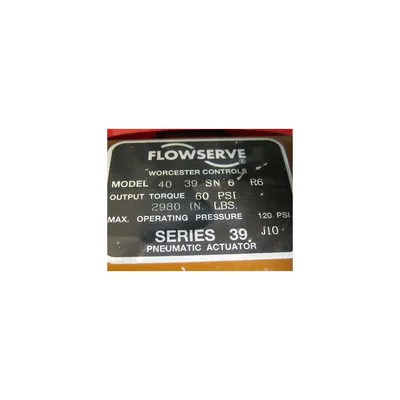

TRIPLE SEALED, LIVE-LOADED PTFE PACKING, ANSI 150 CLASS RAISED FACE FLANGES, NON-LUBRICATED, FIGURE G431 PLUG VALVE FOR SEVERE SERVICE. CARBON STEEL BODY, STAINLESS STEEL PLUG, AND CAP, AND PTFE SLEEVE. RATED FOR 285 PSI @ 100°F, 200 PSI @ 400°F. WORCESTER CONTROLS SPRING LOADED PNEUMATIC ACTUATOR MODEL 40, SERIES 39, 60 PSI OUTPUT WITH FLOWSERVE AUTOMAX XCL EXPLOSION-PROOF/FLAME-PROOF POSITION INDICATOR, AND SOLENOID WITH VENT. ACTUATOR ACTION: FAIL CLOSED. MFG. DATE: 2010. VALVE LENGTH: 7.00".

FOB: Millwood, WV 25262

Item: 11246
 MFG: Durco Flowserve
 Size (inches): 2
