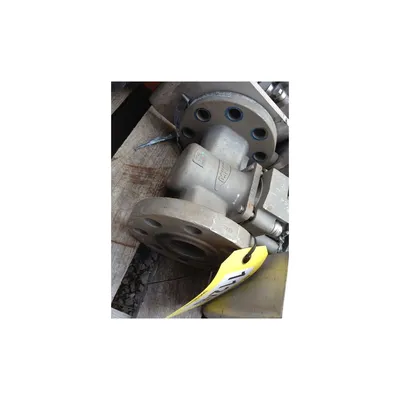

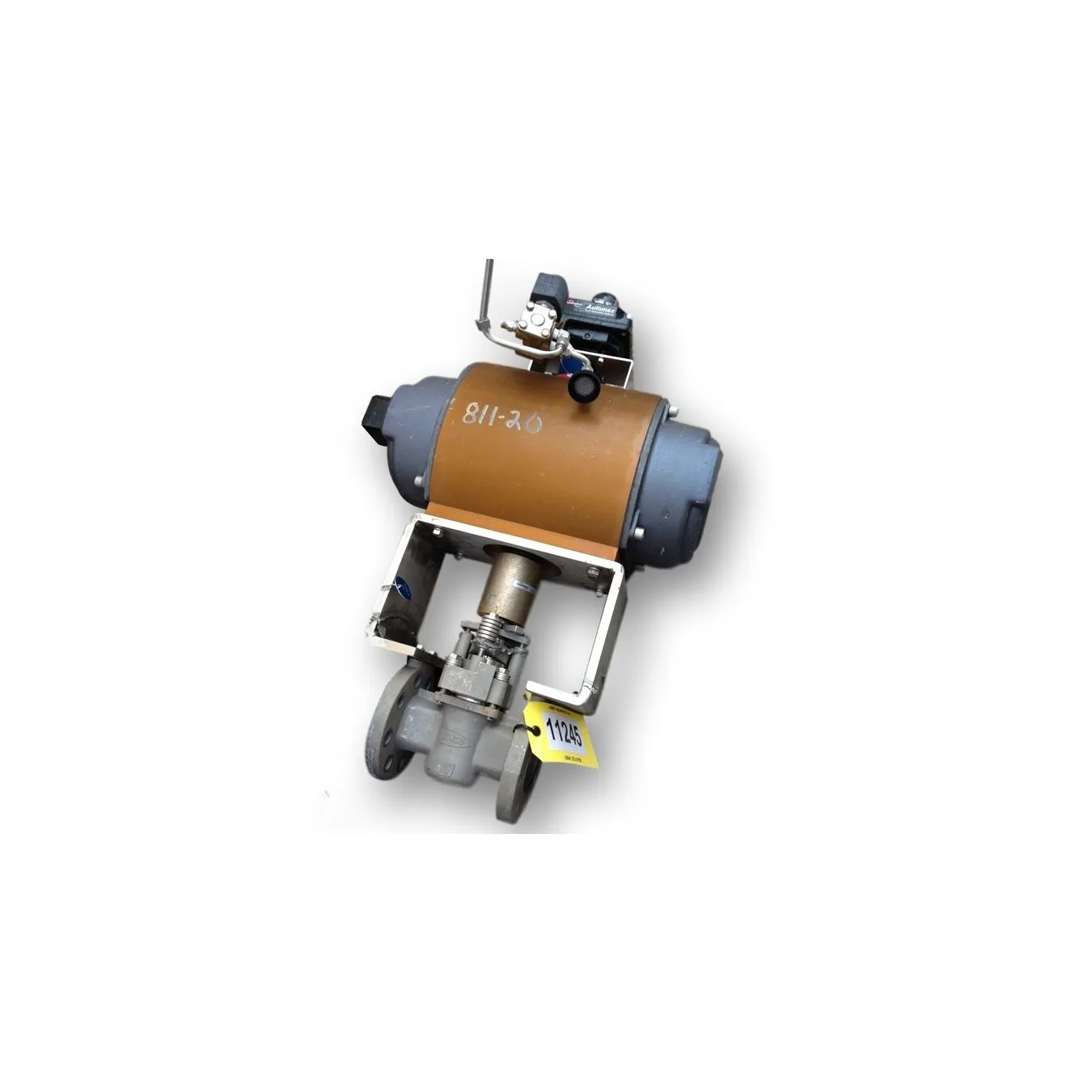

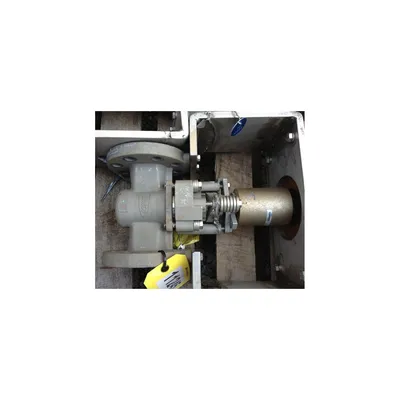

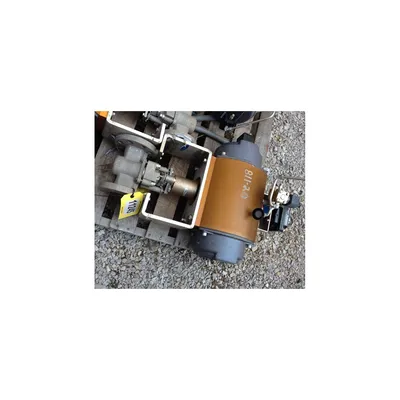

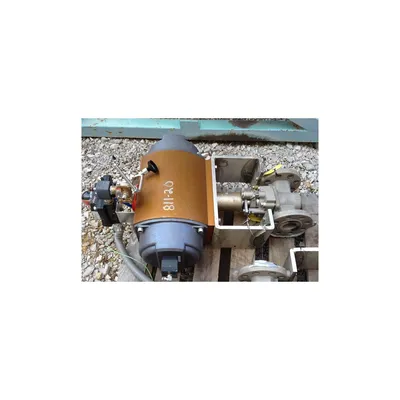

2" DURCO SLEEVELINE PLUG VALVE - TSG4 SEVERE SERVICE

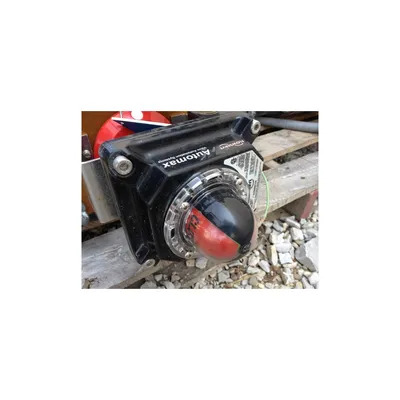

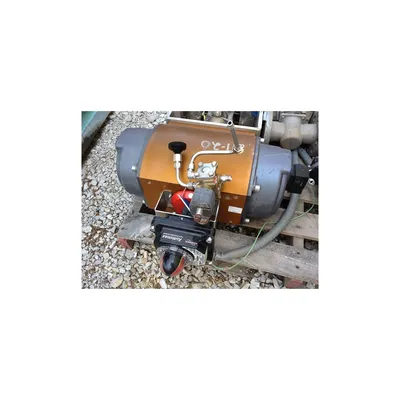

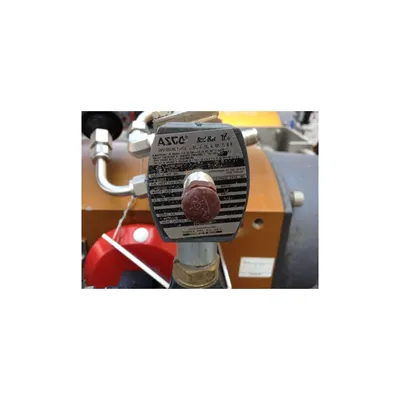

TRIPLE SEALED, LIVE-LOADED PTFE PACKING, ANSI 300 CLASS RAISED FACE FLANGES, NON-LUBRICATED, FIGURE G431 PLUG VALVE FOR SEVERE SERVICE. STAINLESS STEEL BODY, PLUG, AND CAP. PTFE SLEEVE. RATED FOR 720 PSI @ 100°F, 400 PSI @ 400°F. WORCESTER CONTROLS SPRING LOADED PNEUMATIC ACTUATOR MODEL 40, SERIES 39, 60 PSI OUTPUT WITH FLOWSERVE AUTOMAX XCL EXPLOSION-PROOF/FLAME-PROOF POSITION INDICATOR, AND SOLENOID WITH VENT. ACTUATOR ACTION: FAIL CLOSED. VALVE CODE: 2-TSG4-31C1LLT9M1GAS, MFG. DATE: 2010. VALVE LENGTH: 8.50".

FOB: Millwood, WV 25262

Item: 11245
 MFG: Durco Flowserve
 Size (inches): 2
