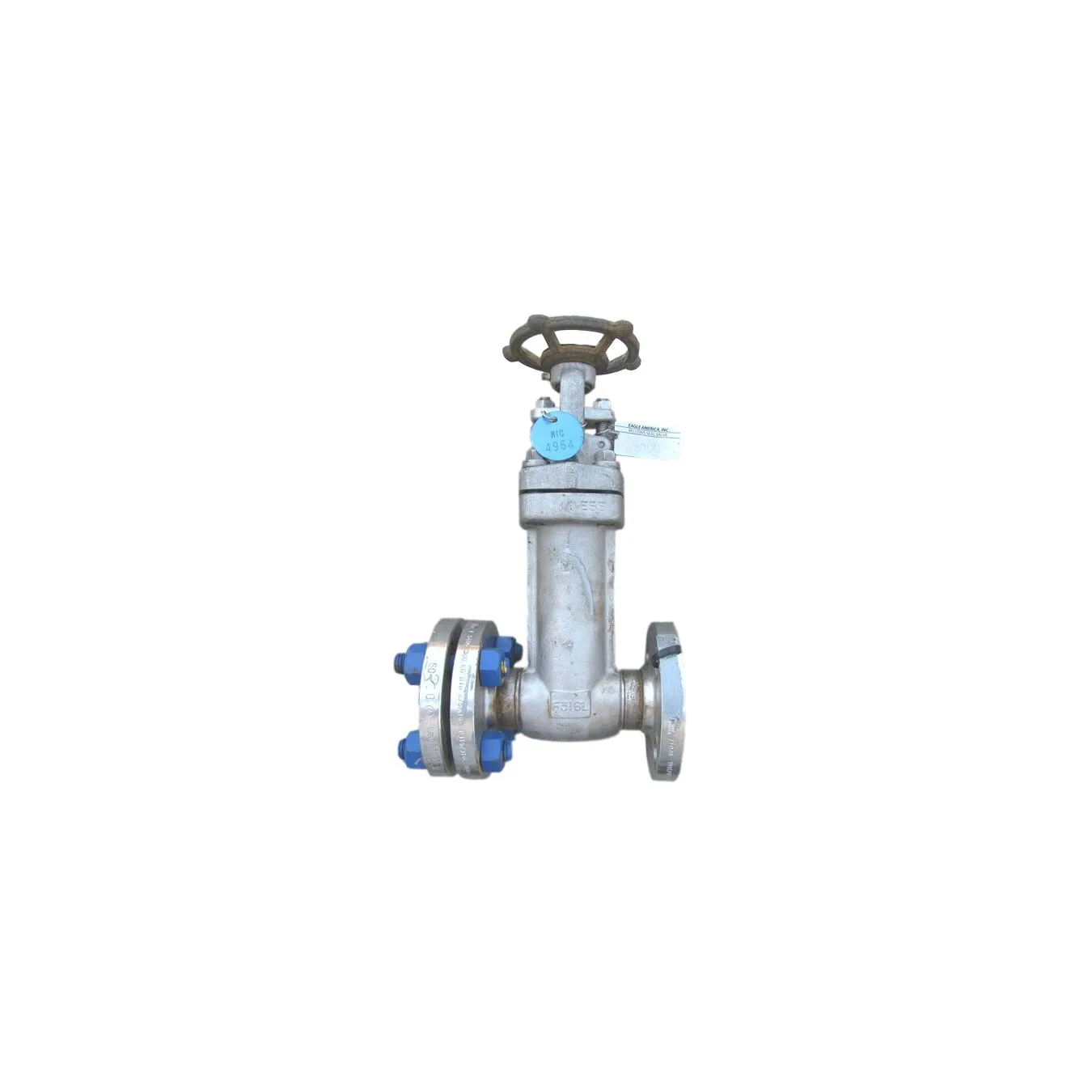

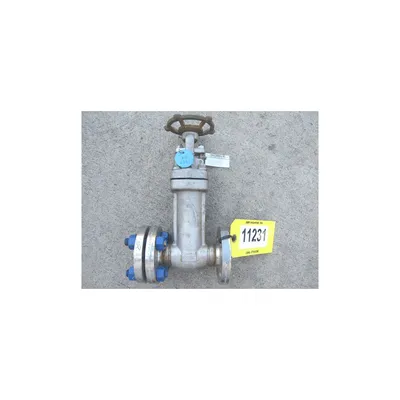

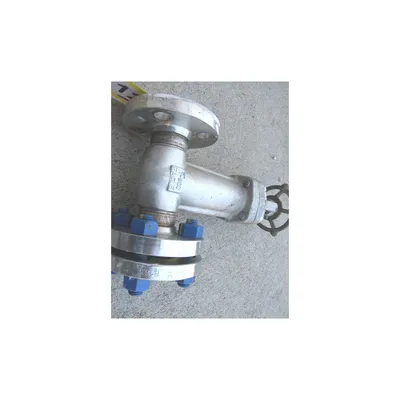

Eagle America 1" Forged Stainless Steel Gate Valve - W8 Series

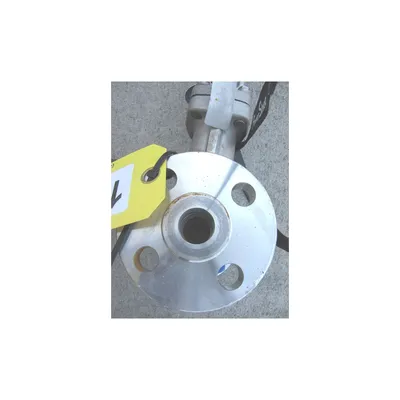

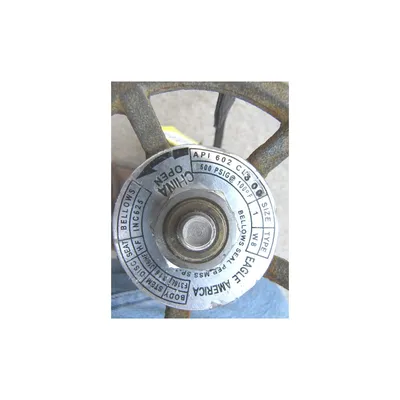

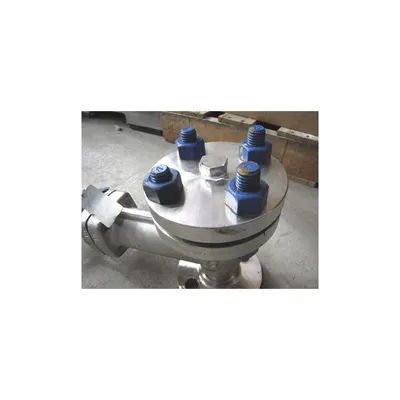

ANSI class 300 valve with bolted bonnet, handwheel actuated. Manufactured & tested to ANSI B16.34/API 602 standard. Raised face flange to flange length: 6.50". Material spec: body: 316L forged stainless steel, stem: 316, disc: 316/hf, seat: hf, bellows: inconel 625. Pressure rated for 600 PSI @ 100°F. Originally purchased for lethal service. These valves were installed in a complex piping system but the system was never started up. Original list price (each) on these valves was $12,500.00 each.

FOB: Millwood, WV 25262

Item: 11231
 MFG: Eagle America
 Size (inches): 1
