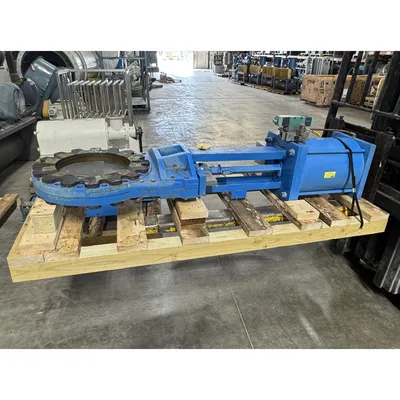

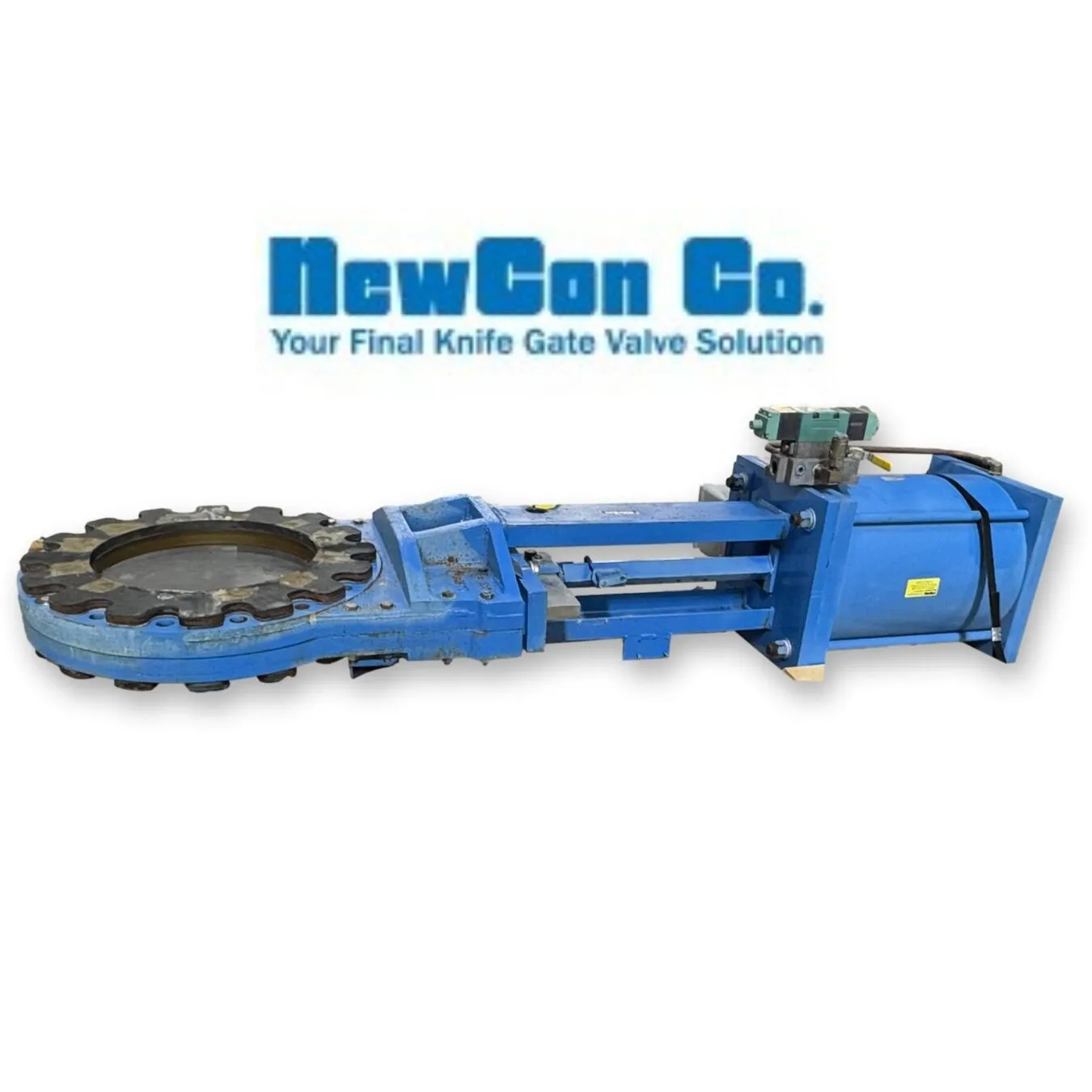

16" NEWCON KNIFE GATE SLURRY VALVE

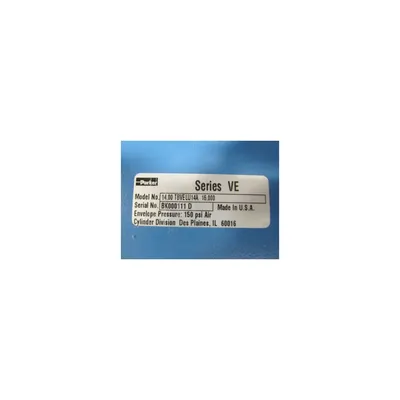

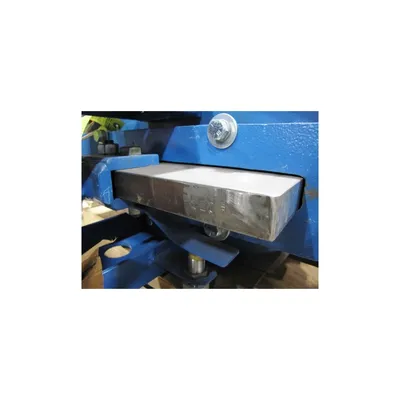

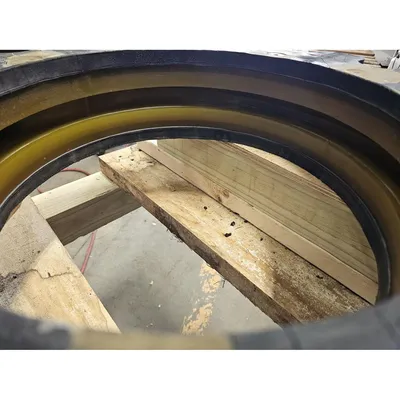

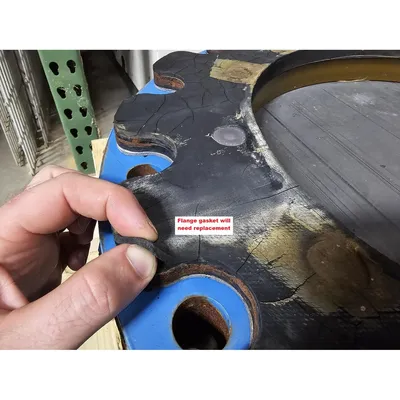

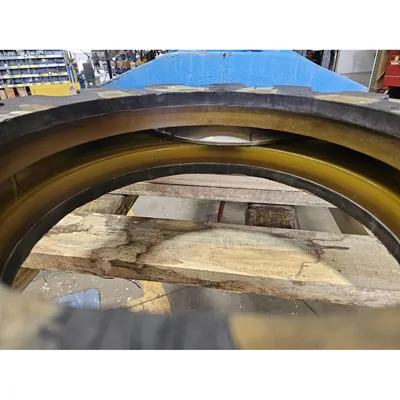

FOR SEVERE DUTY, ABRASIVE SLURRY APPLICATIONS. DUCTILE IRON ASTM A536 BODY; 2205 ALLOY STAINLESS STEEL GATE; FIELD REPLACEABLE URETHANE LINER; STEEL REINFORCED RUBBER COATED FLANGE SEALS; 14" DOUBLE ACTING PNEUMATIC CYLINDER WITH DUAL COIL SOLENOID VALVE, PROXIMITY SWITCHES, AND LOCKING BALL VALVE. ALL PRE-WIRED TO FIBERGLASS TERMINAL ENCLOSURE. RATED FOR 150PSI @200°F. ACTUATOR FAIL POSITION: FAIL IN PLACE LOS/FAIL IN PLACE LOA. The flanges have rubber gasket seals that have surpassed their shelf life and are in need of replacement. The valve is unused but has been sitting in storage for several years.

FOB: Millwood, WV 25262

Item: 12872

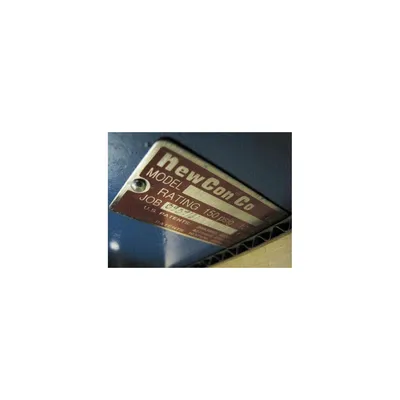

 MFG: Newcon Co.
 Size (inches): 16
  Actuation: Pneumatic
