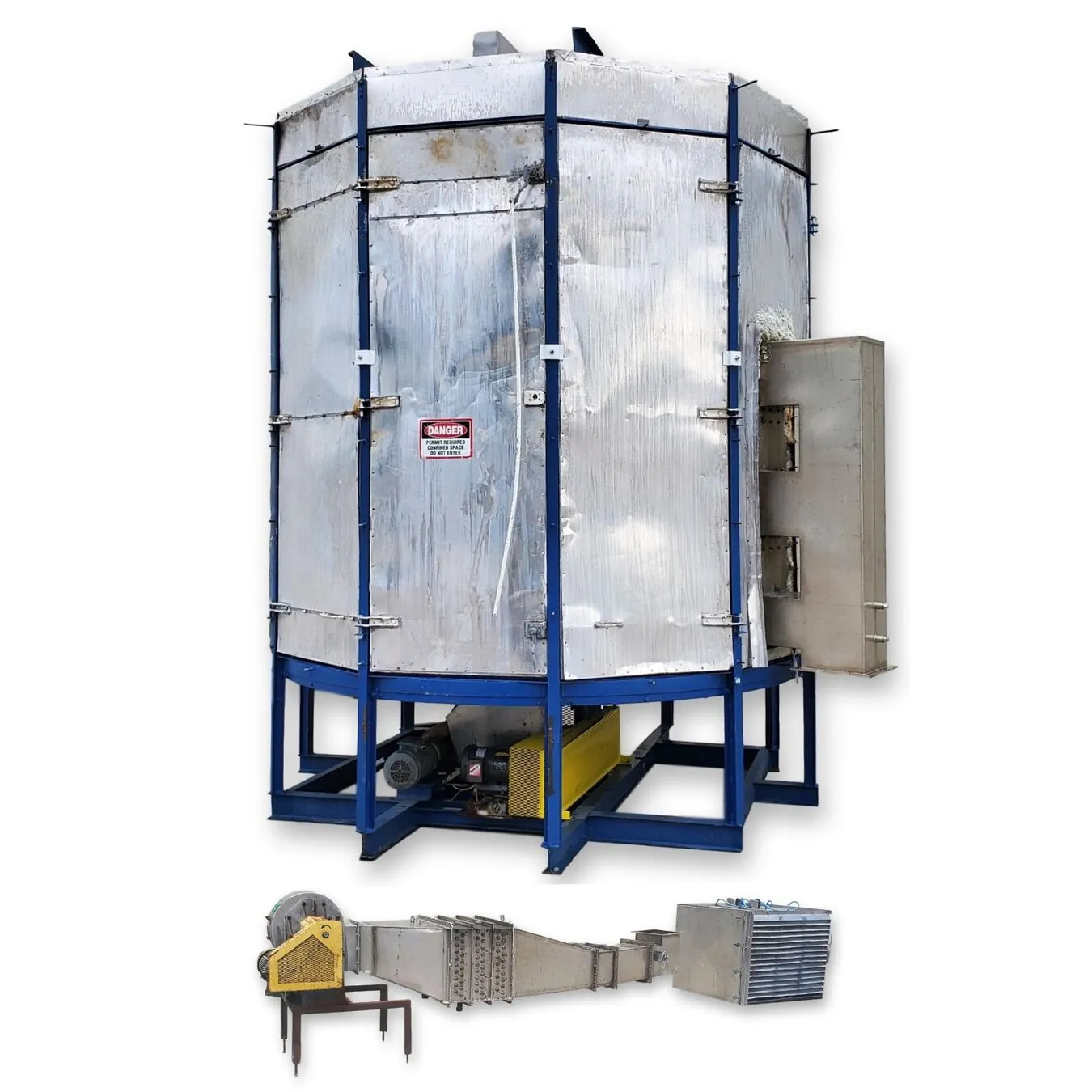

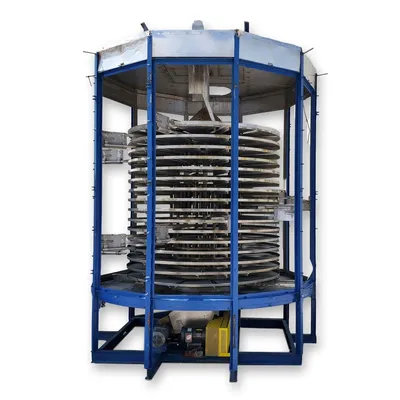

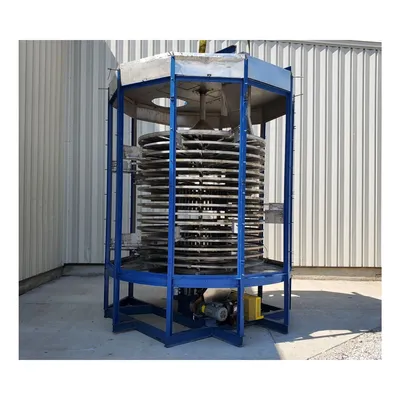

USED WYSSMONT N-16/22

Serial No: J-121

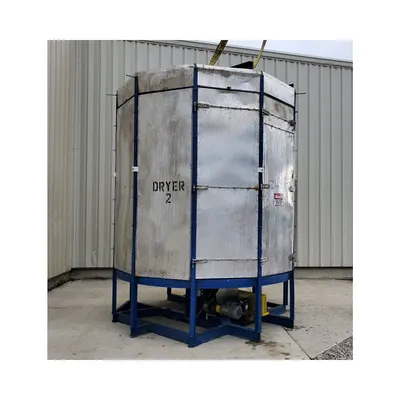

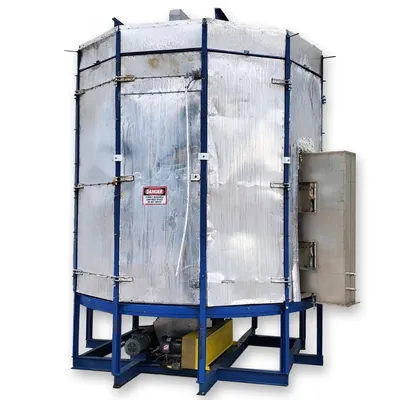

Structural steel support frame with 1.5" thick insulated panels, stainless steel sheet cladded.
Base area is a decagon shape measuring 9'-9" across corners and a 11'-7" roof height.

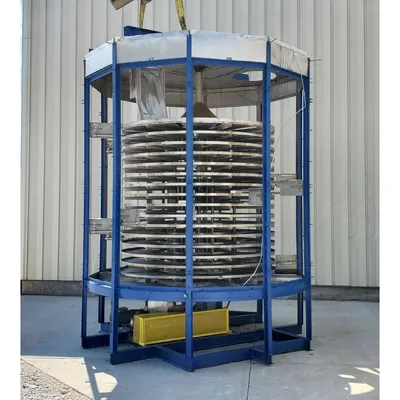

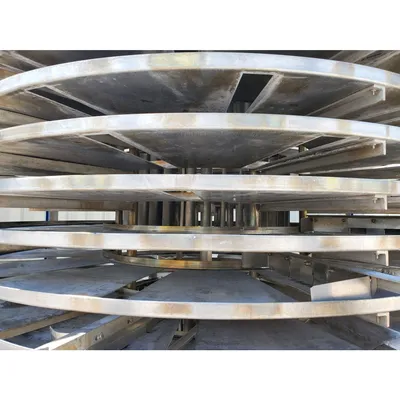

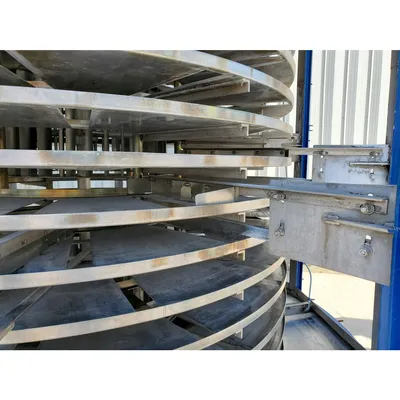

Dryer Trays: quantity of 16, diameter of 78", stacked on 4-11/16" spaces
Product Inlet: 5" X 15" sleeve @ 12'-7" elev.
Product Discharge: 5.5" X 25.5" opening @ 2'-5-1/2" elev.
Drying Air Outlet: 24"Ø opening @ 11'-7" elev.

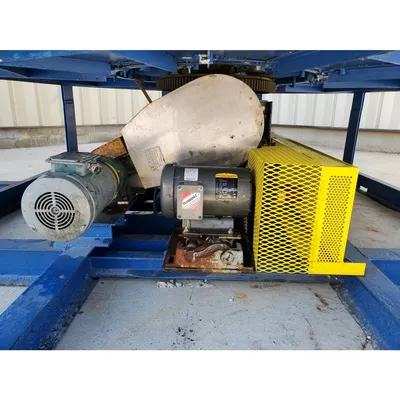

Turbo Fan Drive: 1.5HP with Roto-clone variable speed pulley
Tray Drive: 1HP gearmotor & chain

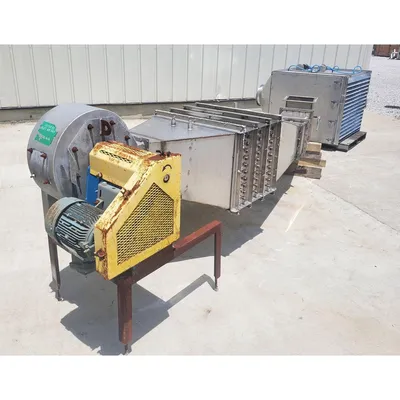

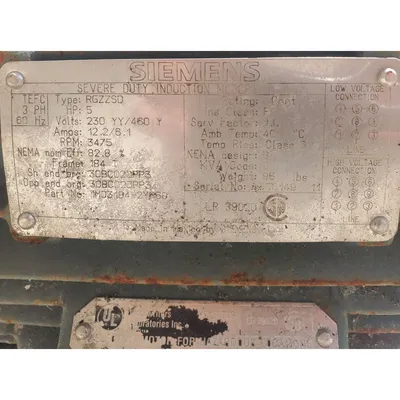

Heater Fan: 5HP stainless steel, backward incline, 3475RPM

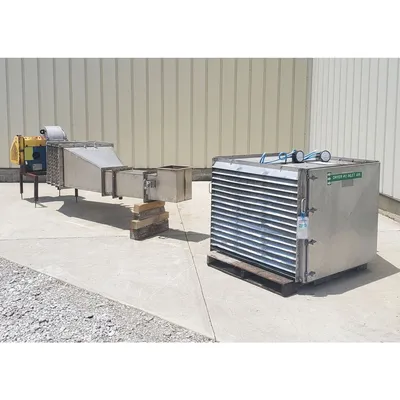

Heating Coils: quantity of 3 inline Aerofin steam coil heating units
Inlet Air Filter: filter housing, holds 44"W X 35"H HEPA filters

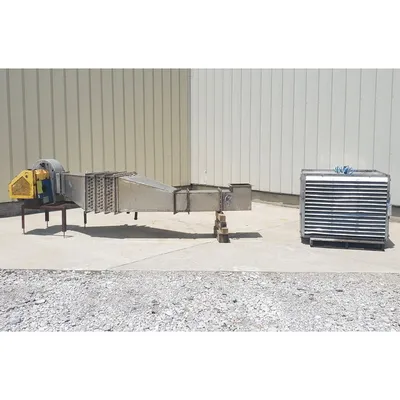

Includes inlet air header and some stainless steel duct
Approximate Weight: 15,000LBS
Demonstration Video on File.

FOB: Millwood, WV 25262

Item: 16761      Model :   N-16/22
 MFG: Wyssmont
