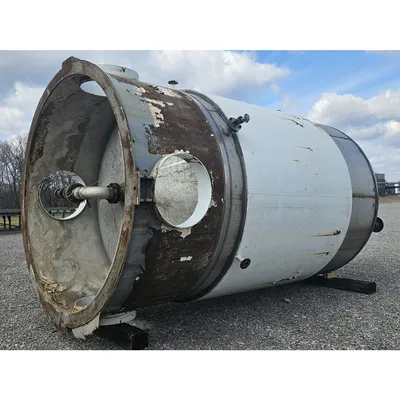

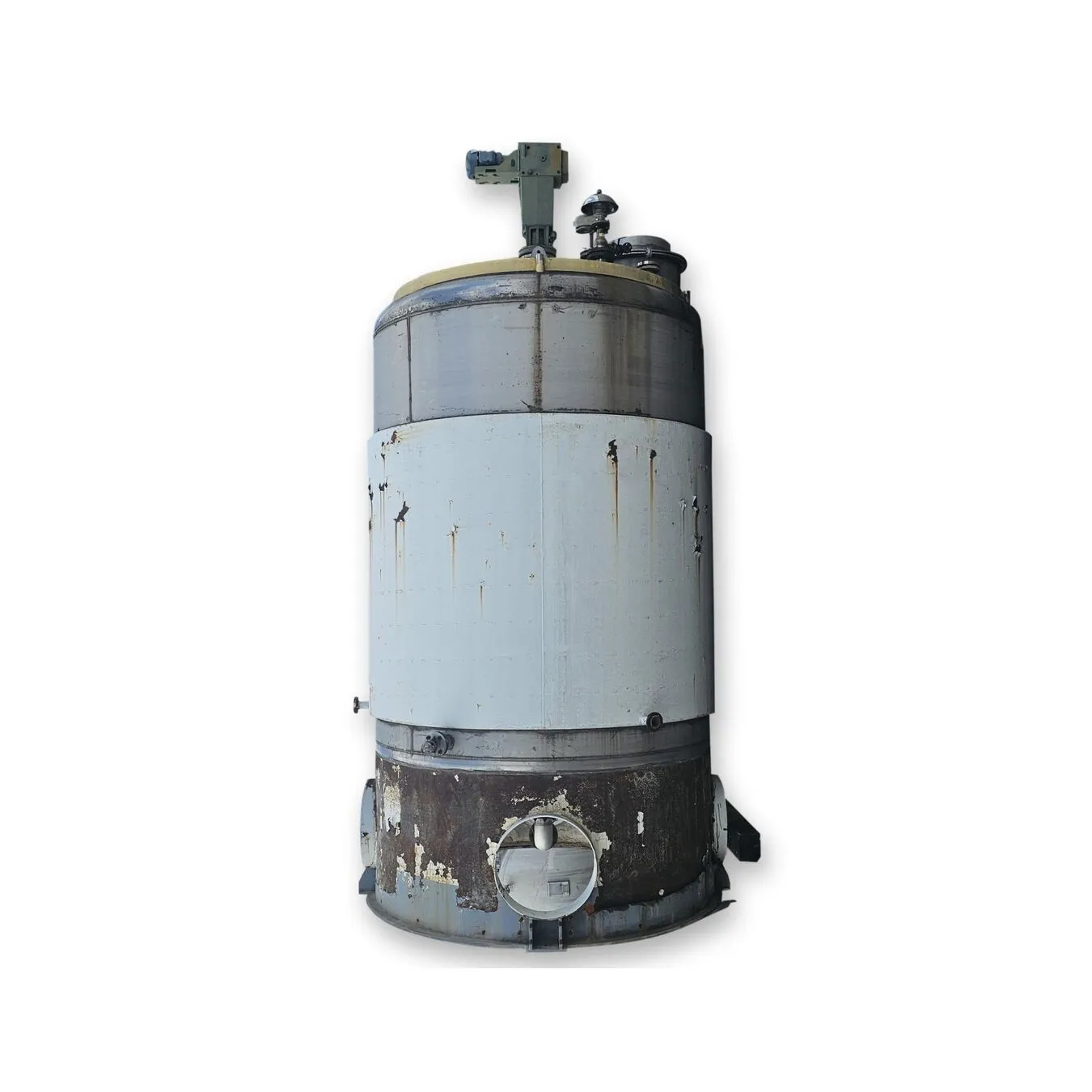

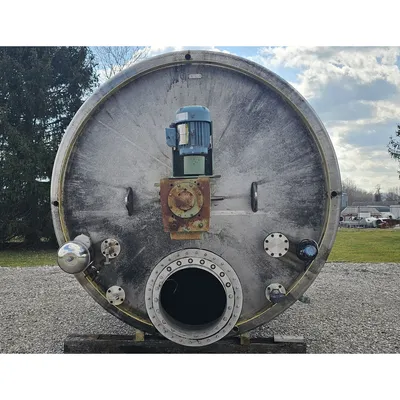

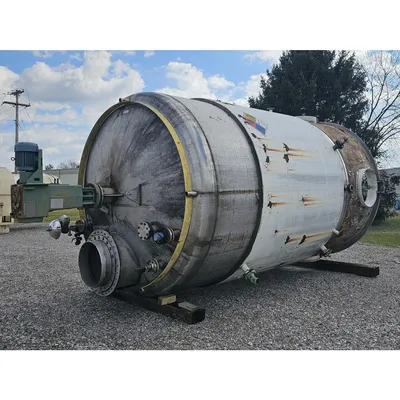

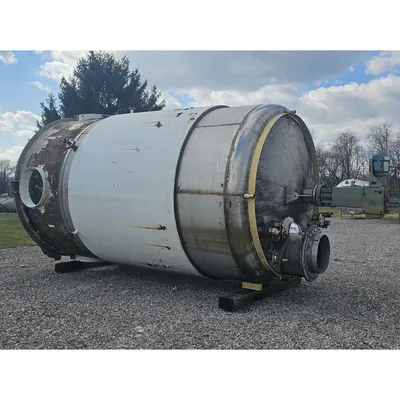

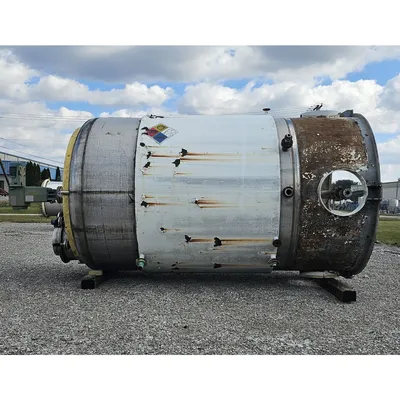

Used 6,850 Gal. Stainless Steel Liquid Mix Tank Jacketed

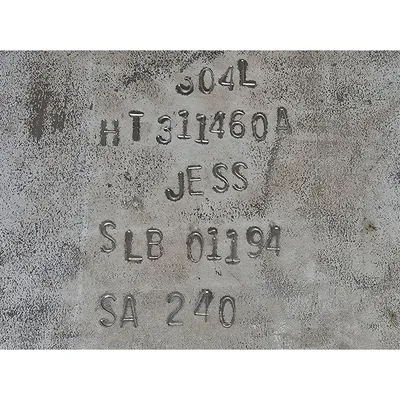

All wetted surfaces are 304 stainless steel, jacket material is carbon steel.
Tank cylinder is 120" diameter, 140" straight side, top and bottom dished heads.

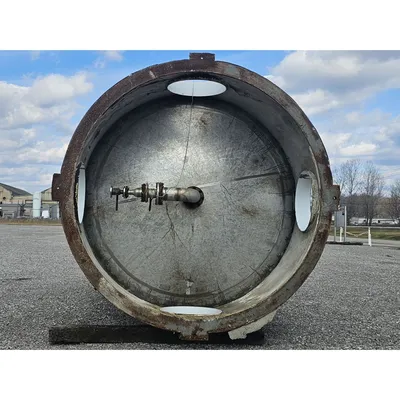

Tank is supported on a carbon steel skirted base ring.
6"Ø X 2"Ø flanged bottom drain with valve.
Tank wall thickness: 0.318" cylinder; 0.370" heads
Multi-zone, cylindrical side jacket, constructed from carbon steel (250 sq. ft. surface area).

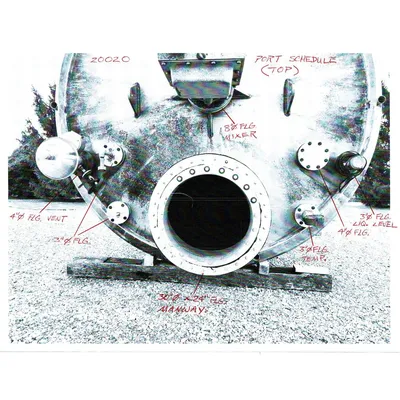

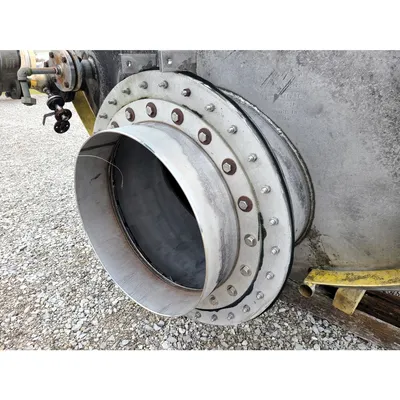

30"Ø X 24"Ø flanged access on top head (missing hinged cover).

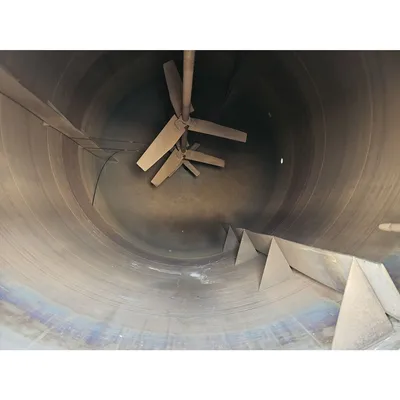

Quantity of three, internal sidewall baffles, spaced at 120°.

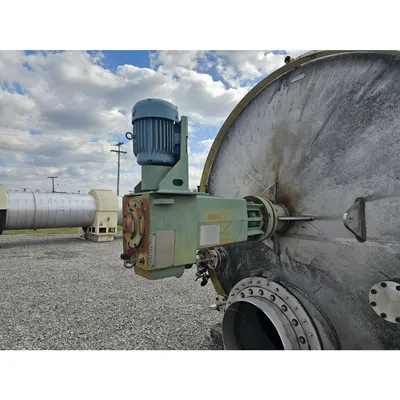

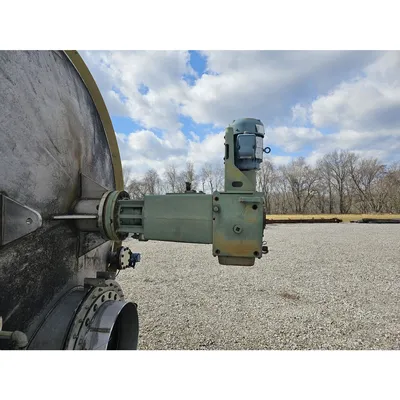

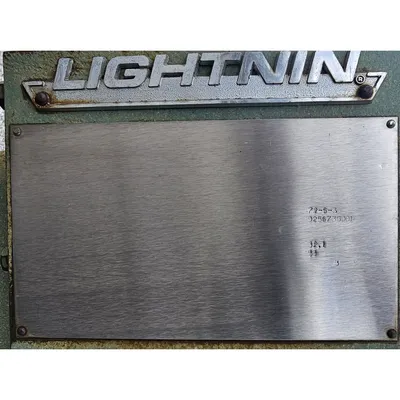

3HP Lightnin 70 Series vertical mixer/agitator, center positioned, twin 3-blade impellers.

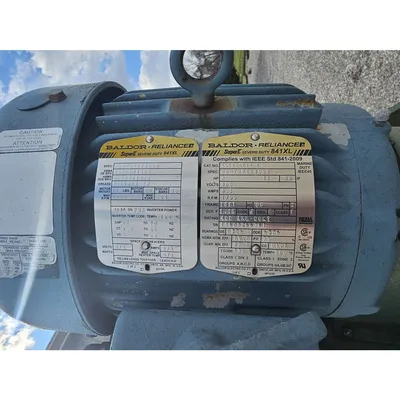

Power Required: 460V, 60Hz, 3ph AC
Total Vertical Height: 220" base to top of tank; 270" clearance height

FOB: Millwood, WV 25262

Item: 20020

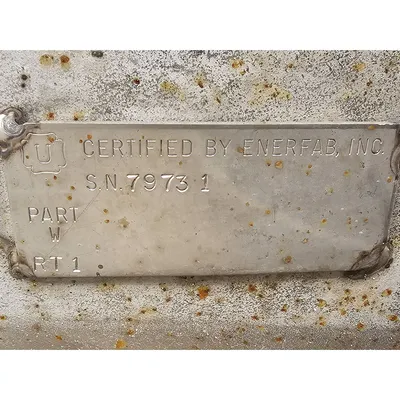

 MFG: Enerfab Inc.
 Size (gallons): 6850
