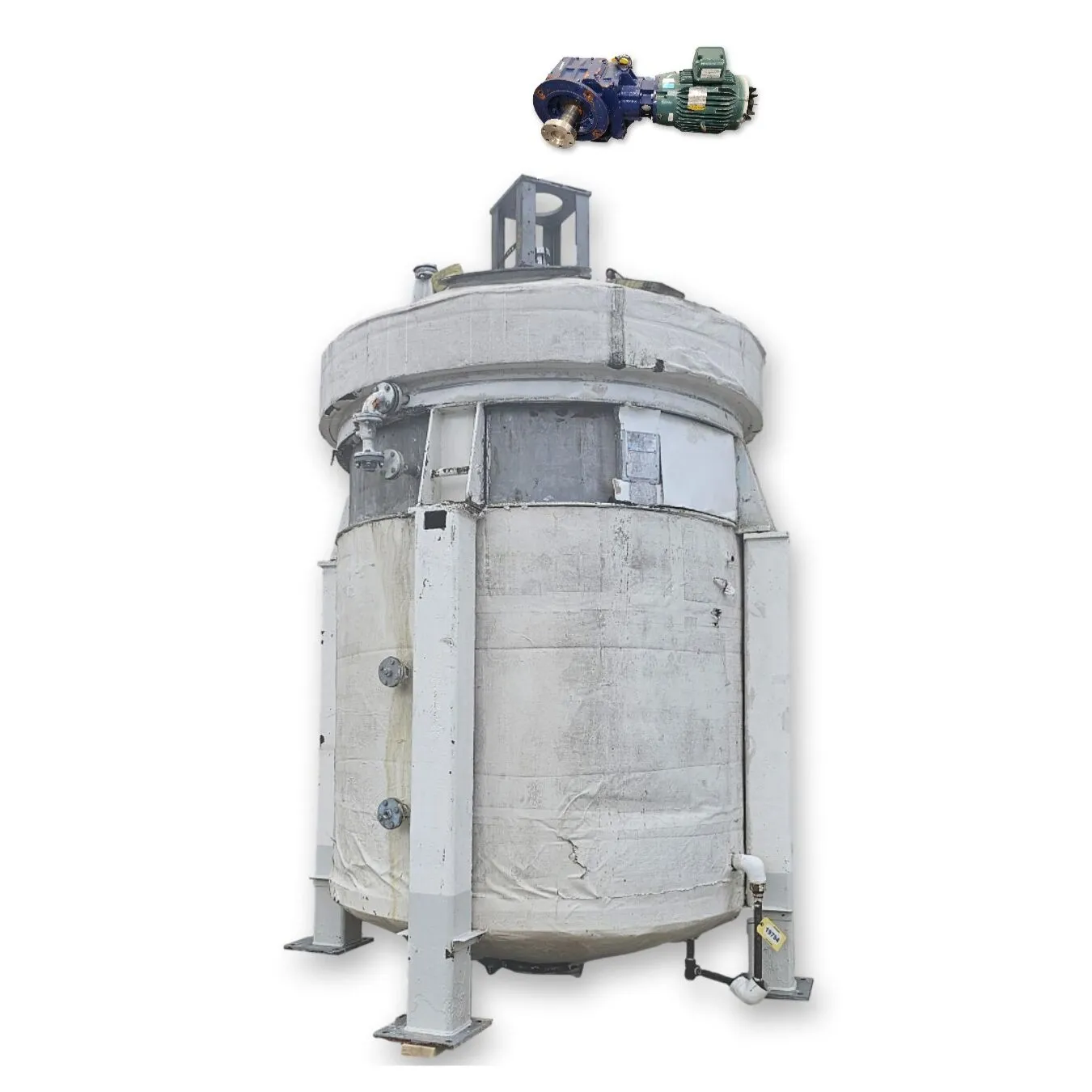

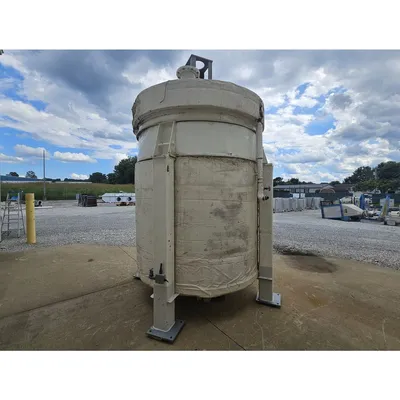

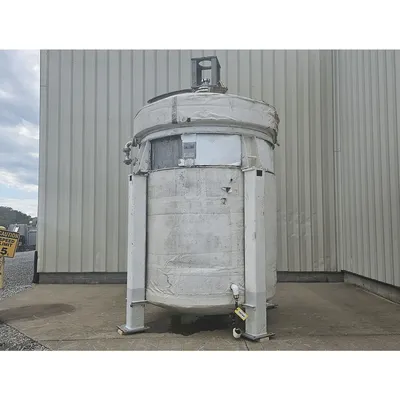

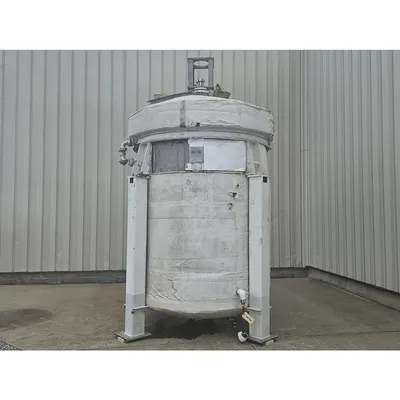

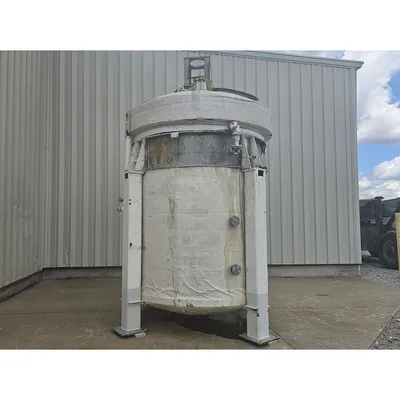

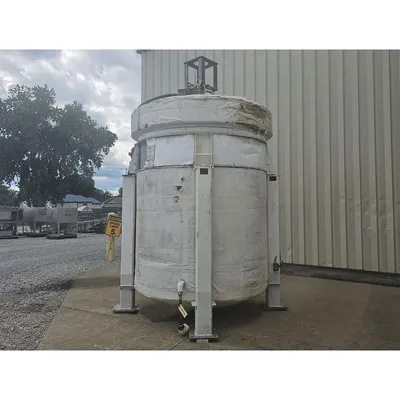

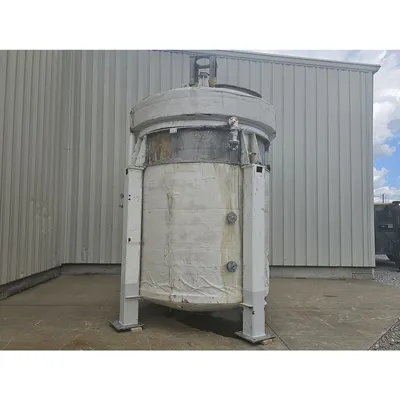

Used 2,200 Gal 316 Stainless Steel Jacketed Pressure Rated Reactor Mix Tank
Overview
Description

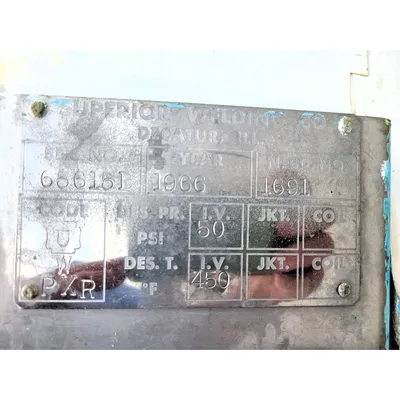

Serial # 65615B National Board #1691
All wetted surfaces are 316 stainless steel, jacket material is 304 stainless steel
Internals of the tank measure 78" diameter, 102" straight side, top and bottom dished heads
10"Ø flanged bottom drain (flush with base)
Tank shell is rated for 50PSI @ 450°F
Dimple jacketed on bottom head and a 5' long band on lower straight wall

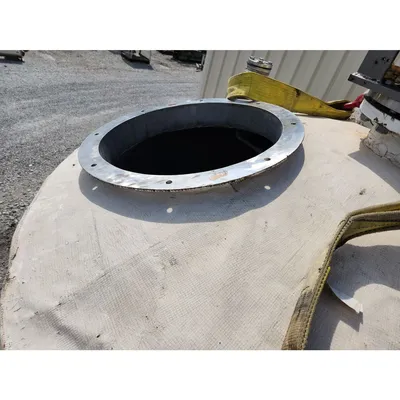

23"Ø flanged access on top head and 8"Ø flanged port

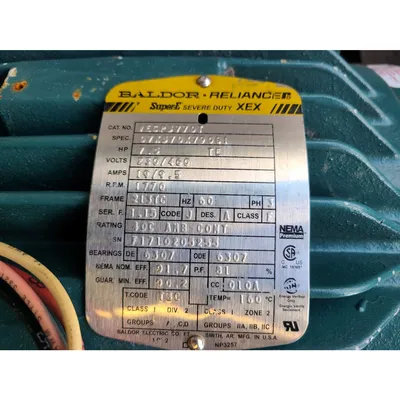

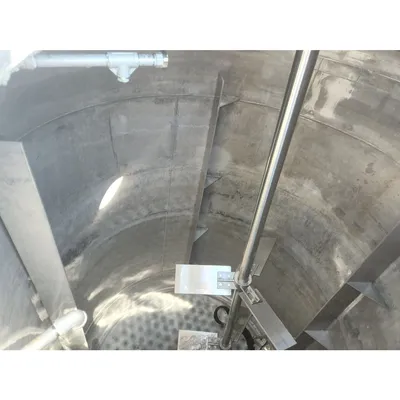

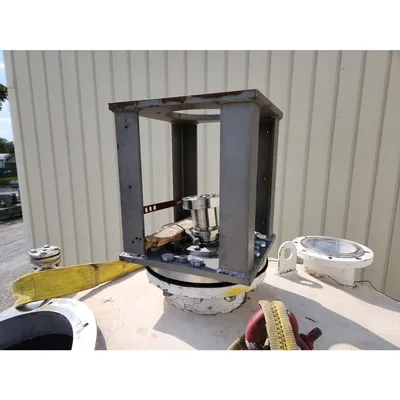

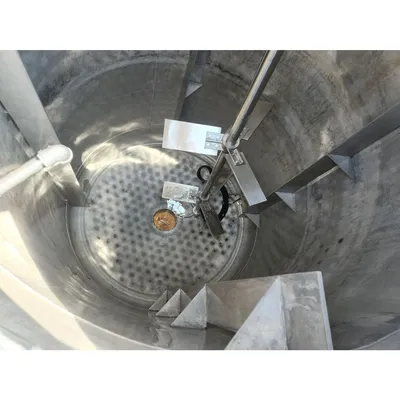

7.5HP vertical mixer/agitator, top/center positioned, twin 3-blade impellers
Impeller speed = 98 RPM.
Power Required: 230/460V, 60Hz, 3ph AC

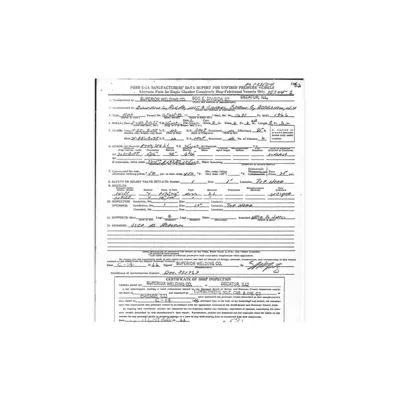

Current ASME U-1 Data Report on file
Weight of tank (w/o mixer drive) = 8,500 LBS.

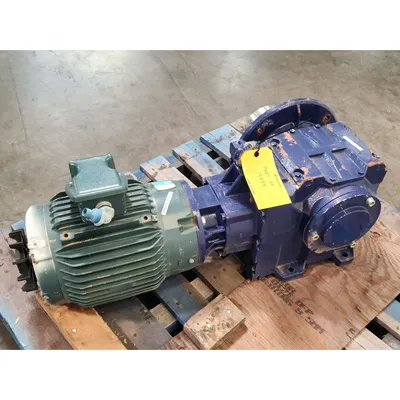

Weight of Mixer drive = 534 LBS.
FOB: Millwood, WV 25262
Specifications
Item: 19794
MFG: SUPERIOR WELDING FAB.
Size (gallons): 2200
