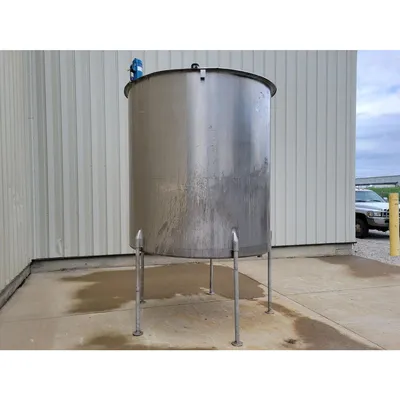

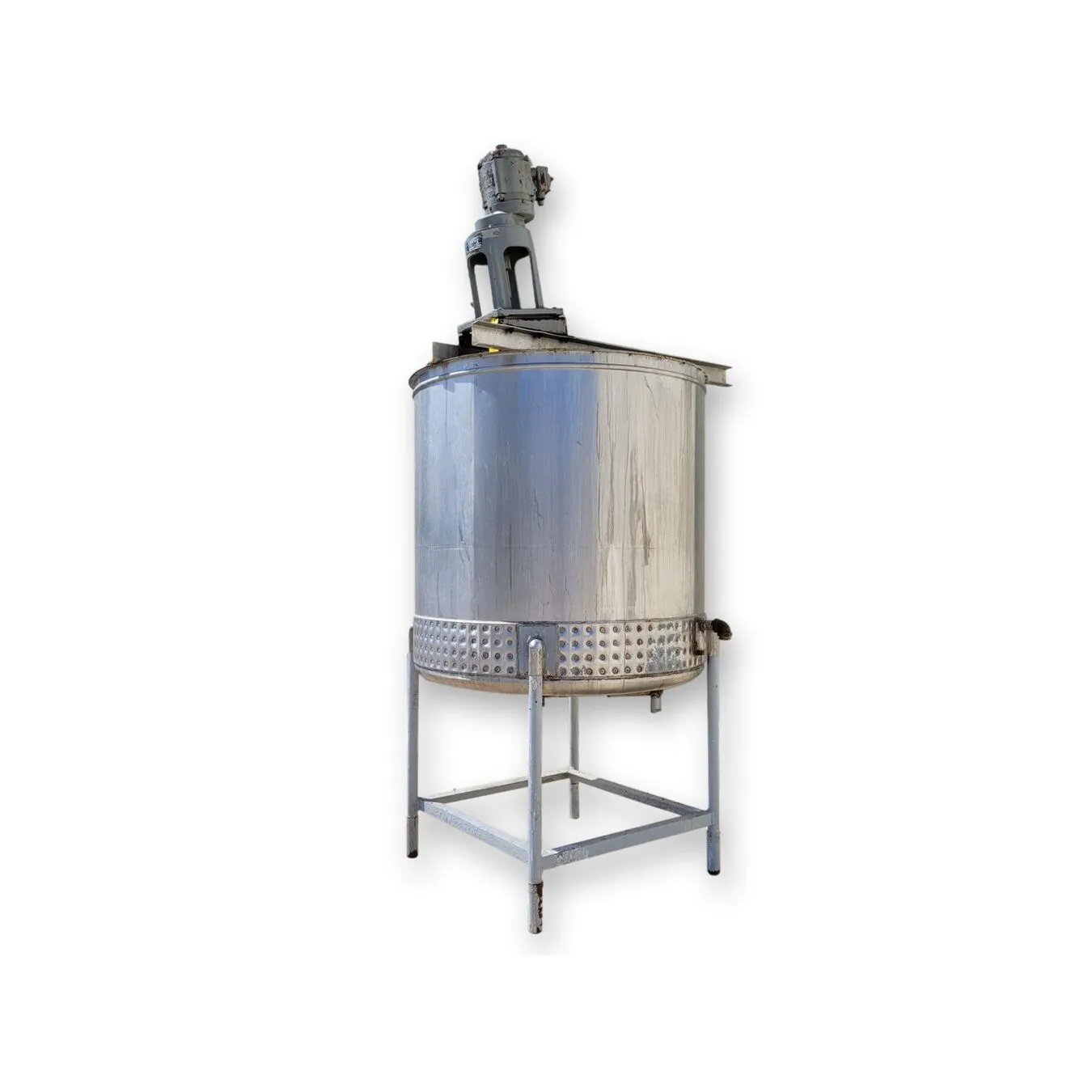

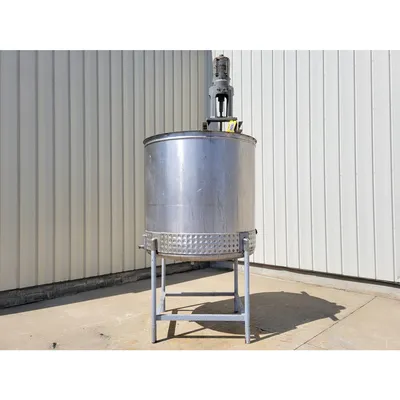

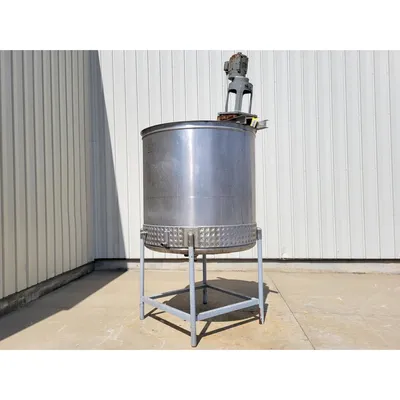

Used 750 Gallon Stainless Steel Jacketed Mixing Tank

Tank is constructed from 12GA, 316 stainless steel sheet
Tank measures 61"Ø X 60" straight side wall with dished head bottom and 2" threaded center drain
Dimple plate jacketing on low side and bottom (provides approximately 26 sq/ft total surface area)
Tank will hold 830 gallons flooded with a working capacity of approximately 750 gallons
1.5"Ø threaded socket pipe legs

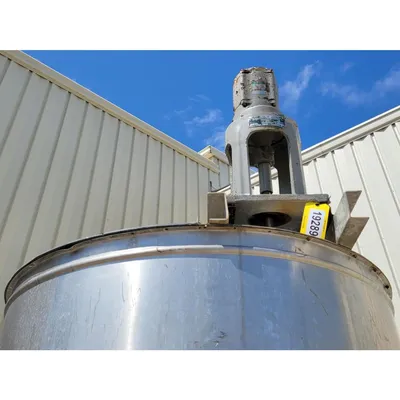

Hinged top covering with mixer bridge

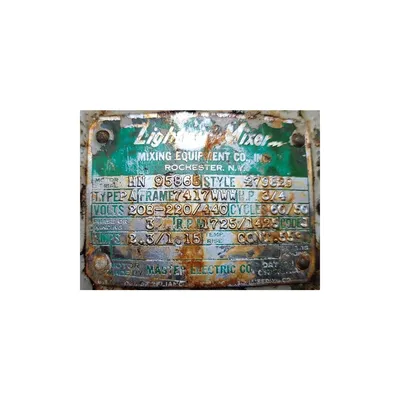

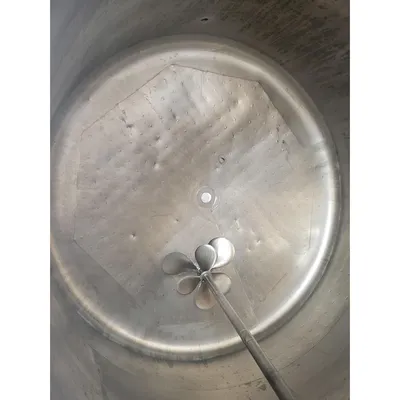

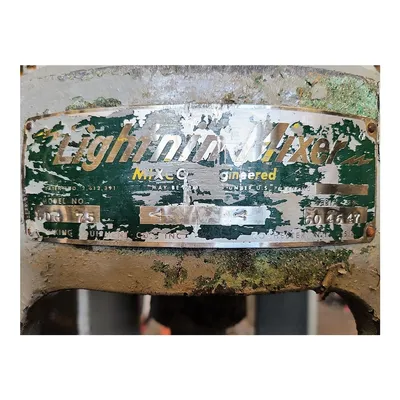

3/4HP top-entry, Lightnin mixer/agitator (208-220/440VAC)
Height to top of tank: 104"
Overall dimensions: 75" X 75" x 144" H
Weight = 995 LBS
*Jackets do not hold water. Several pin holes in both.

FOB: Millwood, WV 25262

Item: 19289
 Size (gallons): 750
