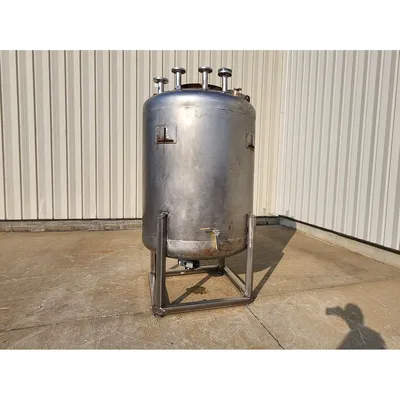

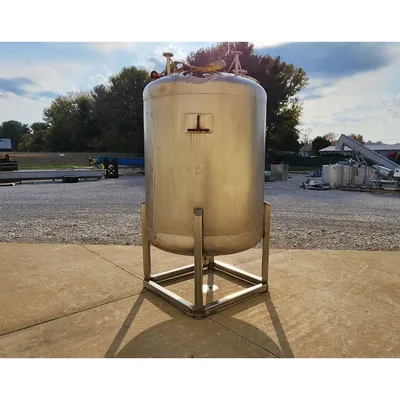

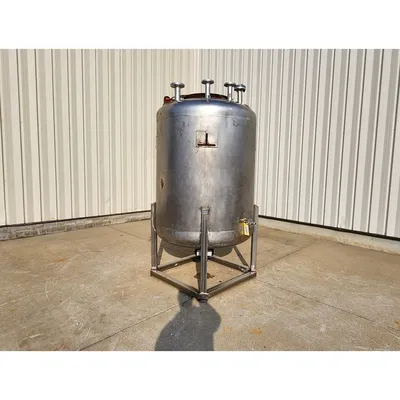

Used 316L Stainless Steel Reactor Pressure Rated Mix Tank - 590 Gal.

Stainless steel single wall liquid mixing tank with 2:1 elliptical top and bottom heads.

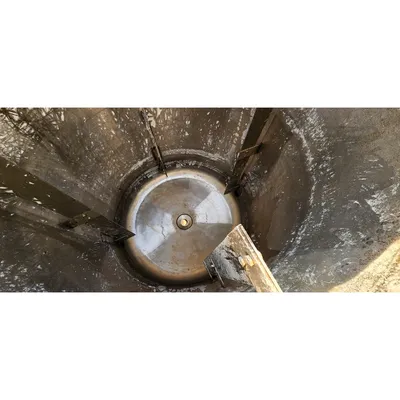

Tank Cylinder: 53" diameter with a 53" vertical length, four internal baffles at 90°
Wall Thickness: 0.204"
Bottom Drain: 3"Ø sanitary ball valve, pneumatic actuated

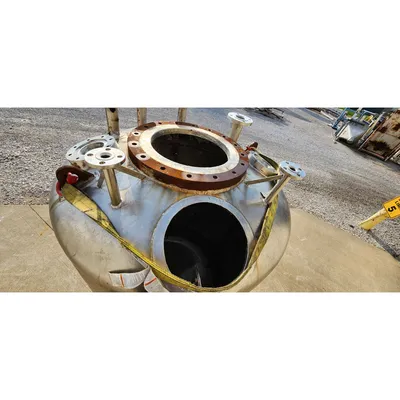

Multi-ported top head with 18"Ø mixer flange, 12"Ø opening and CIP spray ball.

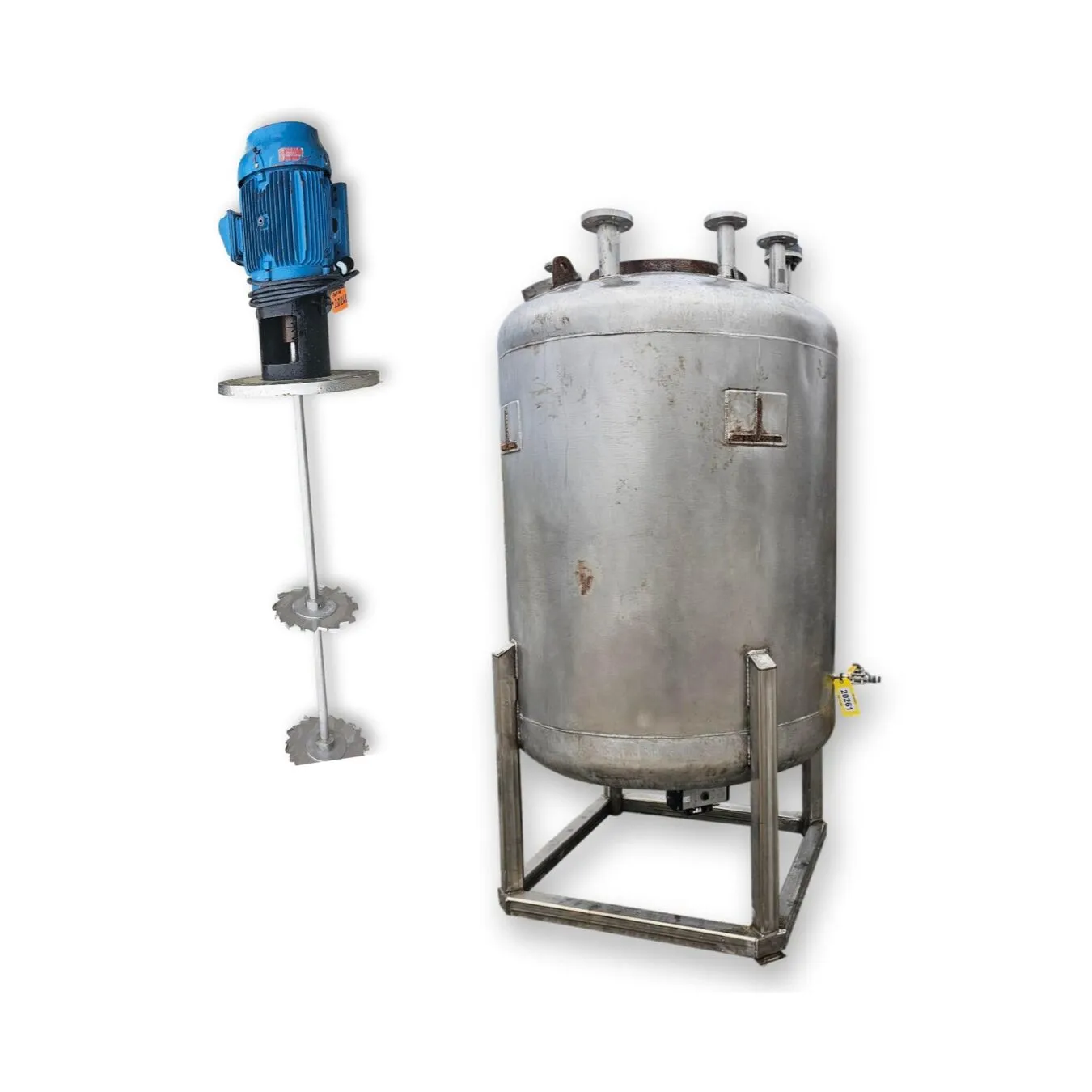

Mixer: 20HP direct-coupled severe duty motor (208-230/460V, 60Hz, 3ph, 1175RPM)
Impellers (2): 14"Ø dispersion blades (high shear for agglomerations and solids)
3" square tube base support frame measures 46" square.
Base elevation to top mixer flange is 97".

FOB: Millwood, WV 25262

Item: 20261
 Size (gallons): 590
