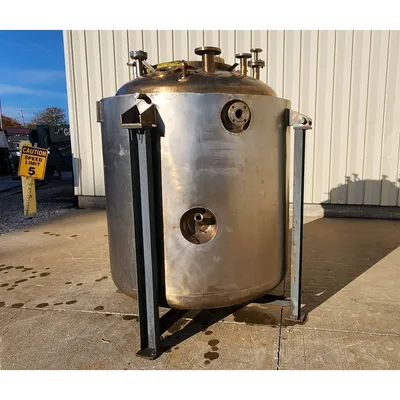

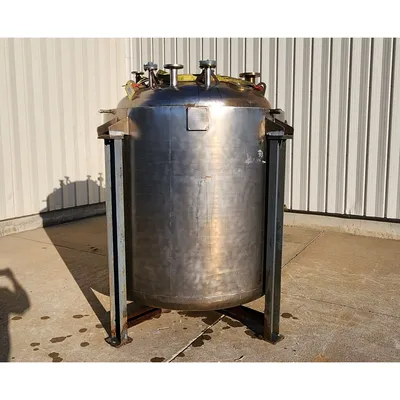

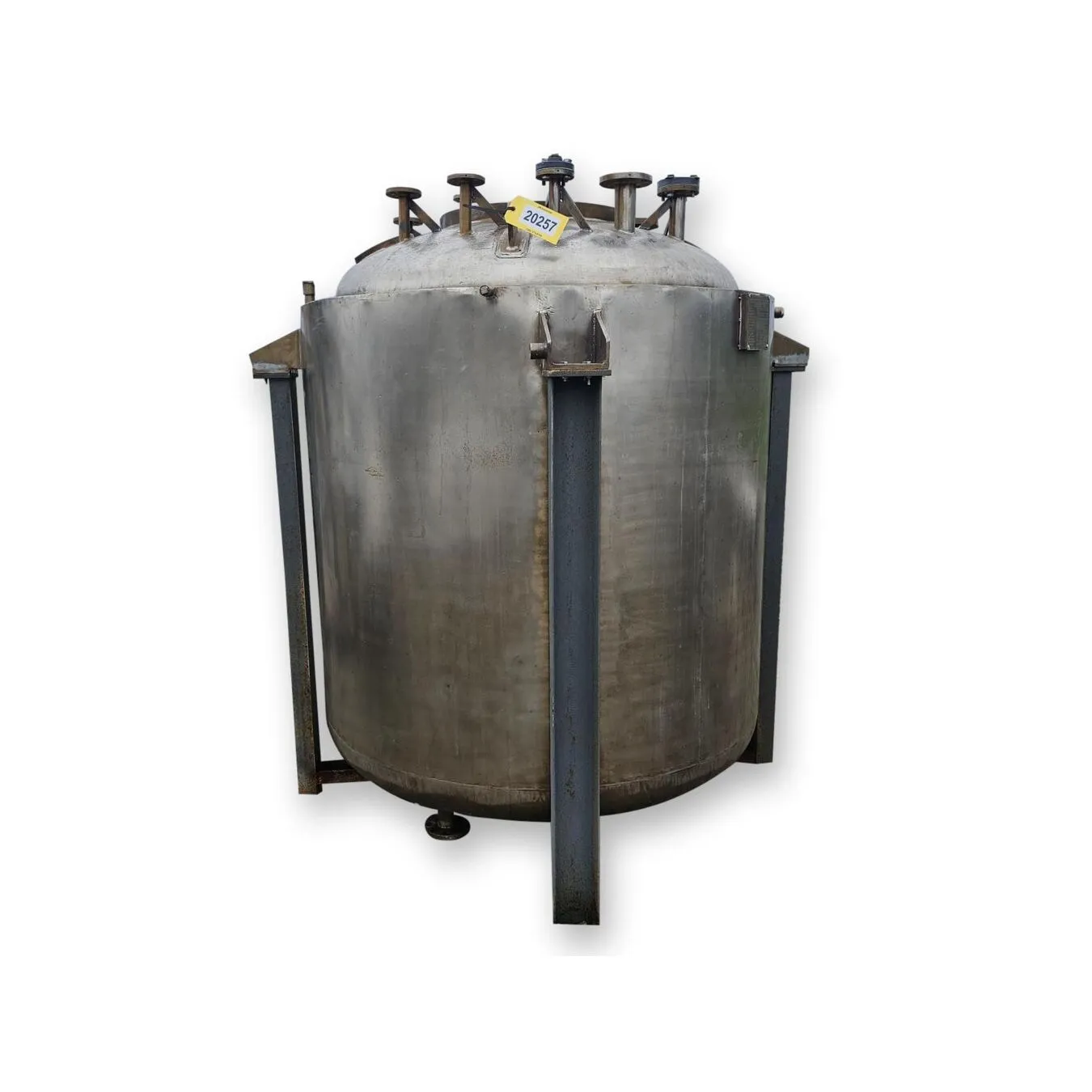

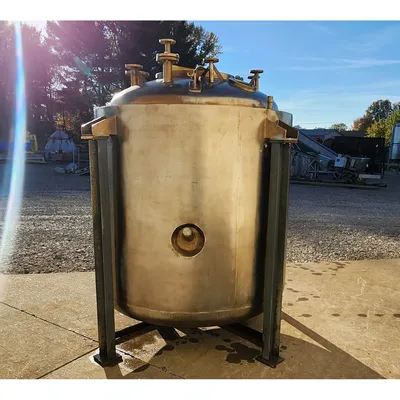

Used 2,000 L 316L Stainless Jacketed Pressure Vessel Reactor Slurry Feed Tank

Vessel shell is constructed of 316L stainless steel, cylinder wall thickness: 5mm
Vessel Dimensions: Ø1350mm X 1350mm cylinder length; Overall Vertical Height: 2001mm
Top & Bottom Heads: elliptical flange and dished
Tank side jacketing with 50mm thick insulation.
Operating Temperature: 40°C (104°F)
Test Pressure: 2 KG/CM²g (28.4PSI)

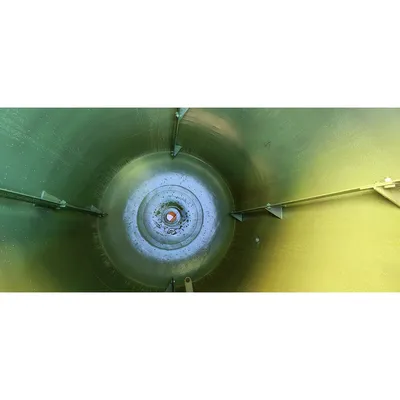

Internal baffle plates @ 90°, top-center mixer flange, inspection port, CIP spray ball.
Four-point side saddle brackets with carbon steel legs.
Mixer/agitator not included.

FOB: Millwood, WV 25262

Item: 20257

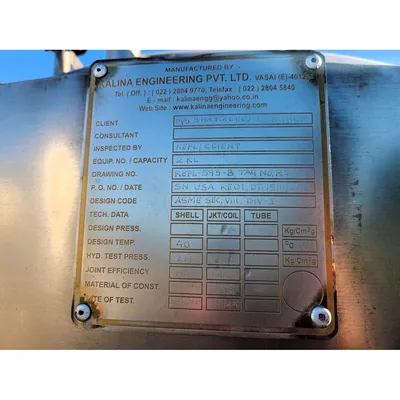

 MFG: Kalina Engineering
 Size (gallons): 528
