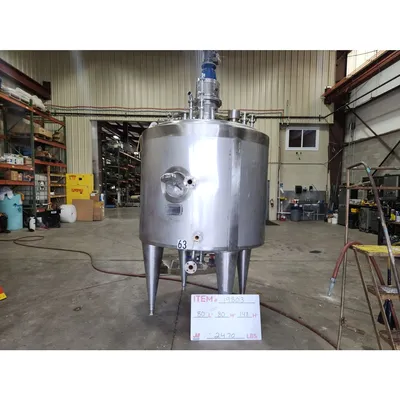

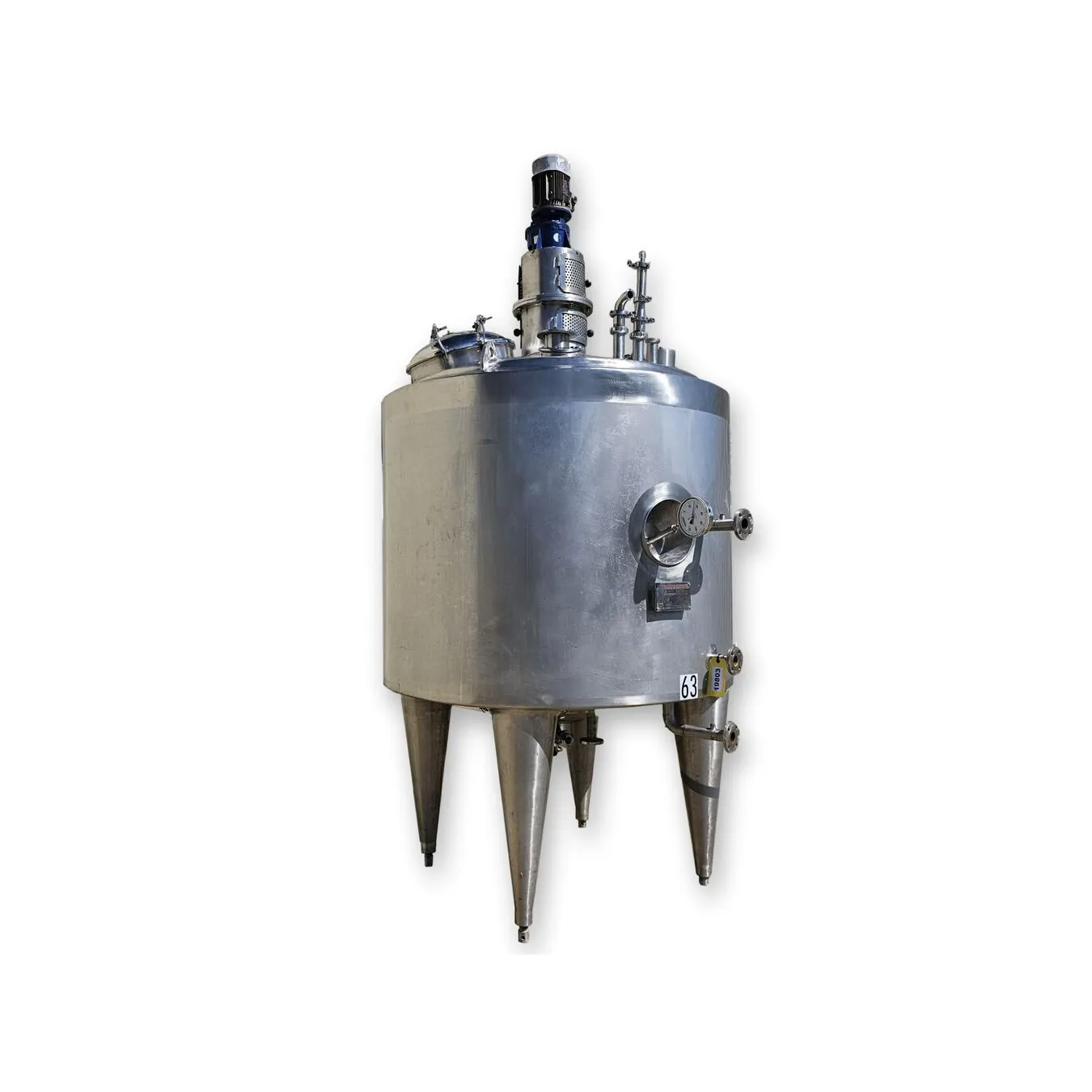

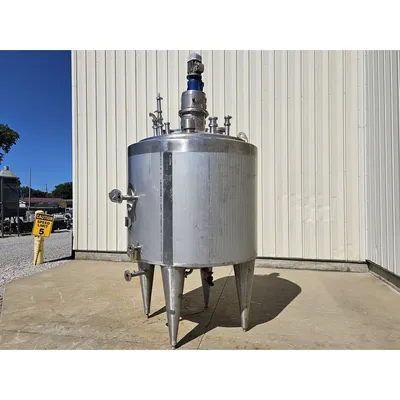

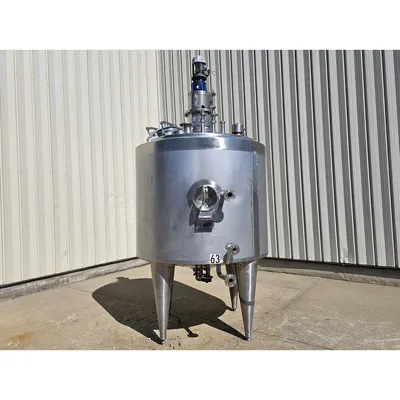

Used 2000L (528 gal) Stainless Sanitary Jacketed Insulated Mix Tank w/ Agitator

Stainless steel liquid mixing tank with side and bottom thermal (steam) heat zones
Tank inside measures 59"Ø with a 51" vertical straight side and bottom cone (10Ga. on side wall)
Internal steam coils with 40mm flange connections and condensate drain trap

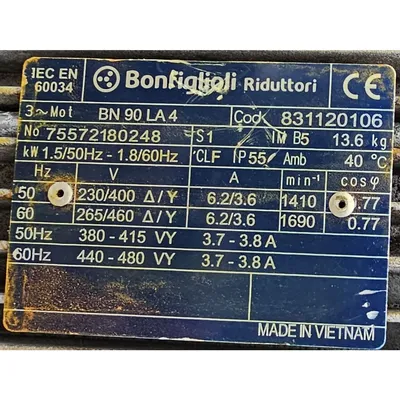

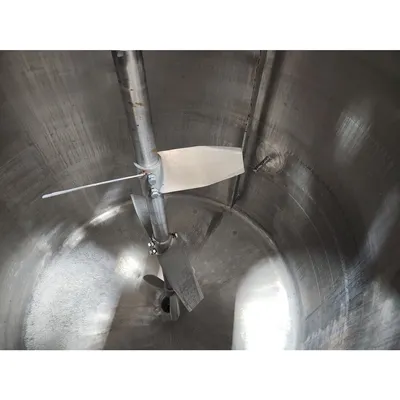

2.4HP geared mixer/agitator with two twin blade impellers (Ø24") and a single three blade (Ø15")
Tank top is sloped with a Ø20" gasketed access, sight glasses, vent, and multiple inlet ports
Bottom, center drain: 1.75"Ø sanitary flange
Steam connections: 40mm flanged
Impeller Speed: 93RPM max.

FOB: Millwood, WV 25262

Item: 19803

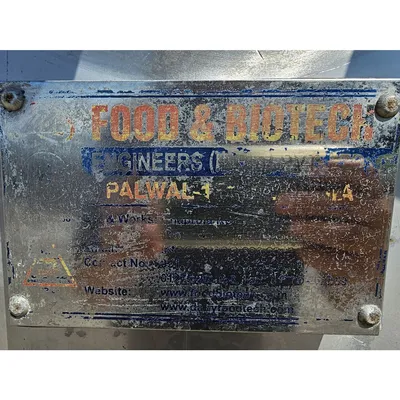

 MFG: Food & Biotech
 Size (gallons): 528
