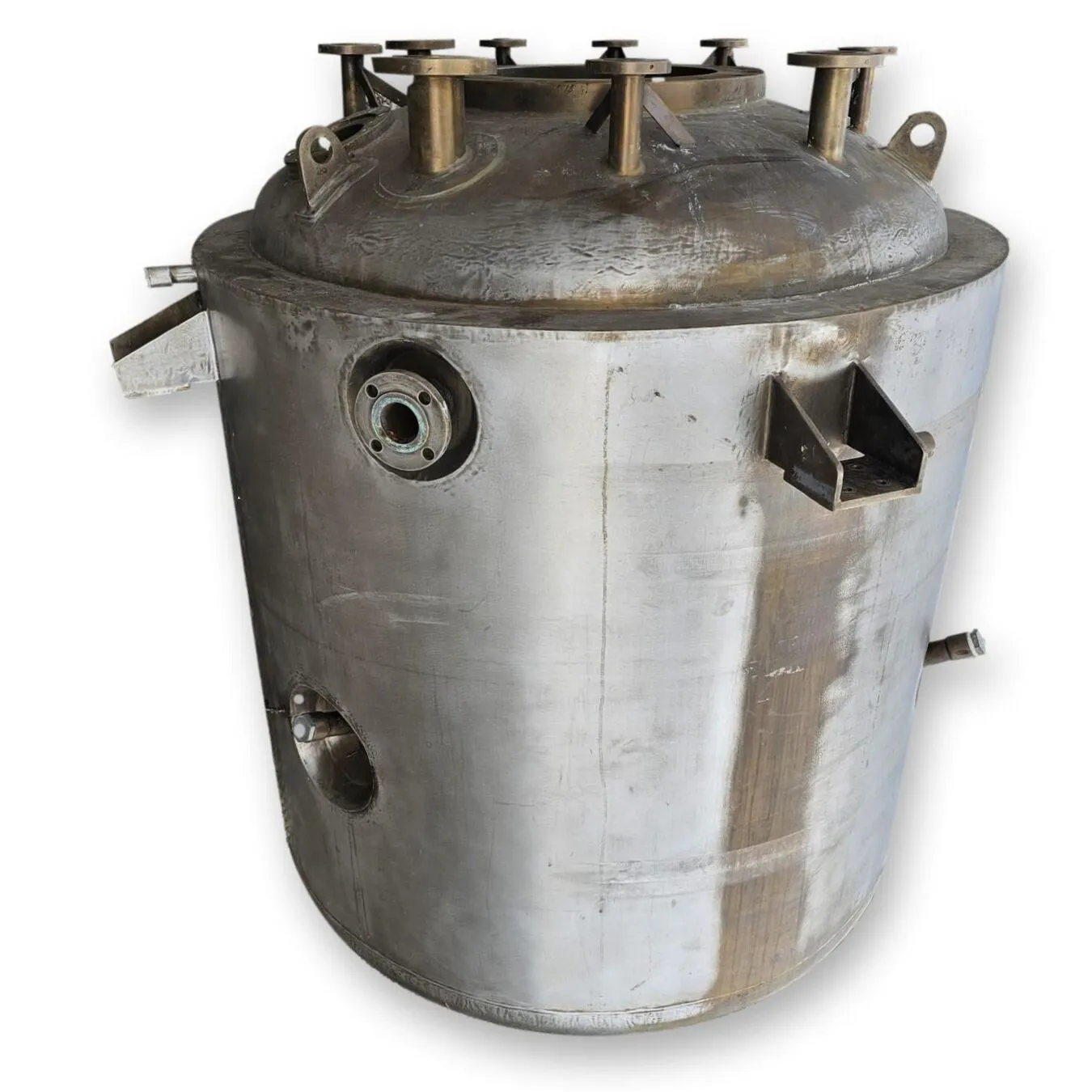

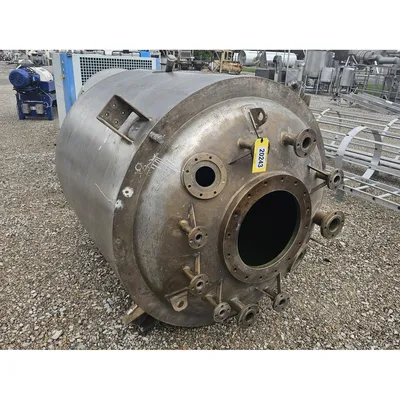

Used 2000L 528 GAL Jacketed Stainless Steel 316L Pressure Reactor Mix Tank

Vessel shell is constructed of 316L stainless steel, cylinder wall thickness: 5mm
Vessel Dimensions: Ø1350mm X 1350mm cylinder length; Overall Vertical Height: 2001mm
Top & Bottom Heads: elliptical flange and dished
Tank side jacketing with 50mm thick insulation.
Operating Temperature: 40°C
Non-pressure rated.
Internal baffle plates @ 90°, top-center mixer flange, inspection port, CIP spray ball.
Four-point side saddle brackets for mounting, does not included a base stand.
Mixer/agitator not included.

FOB: Millwood, WV 25262

Item: 20243
 MFG: Kalina Engineering
 Size (gallons): 528
