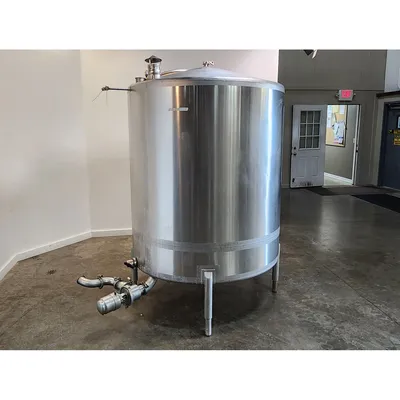

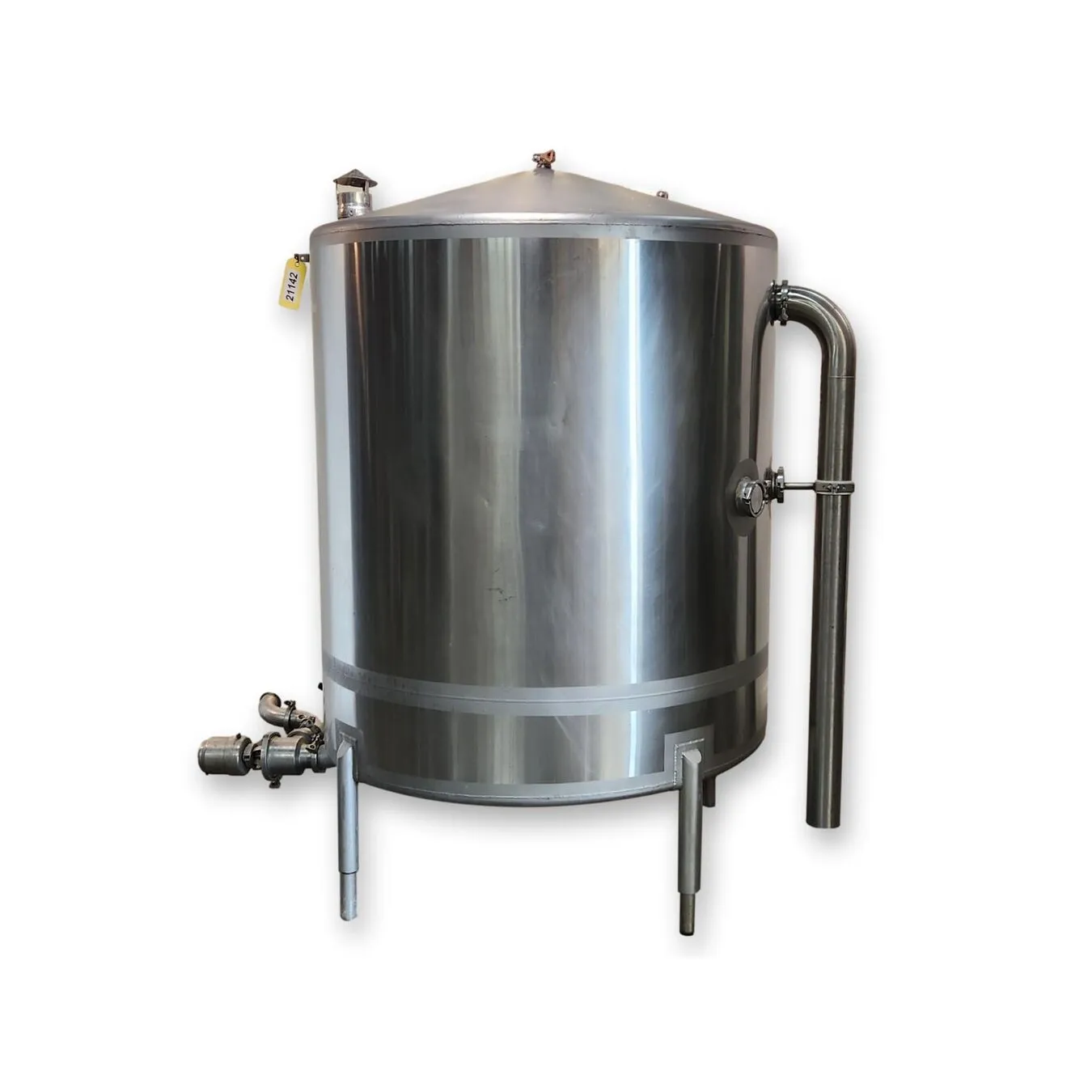

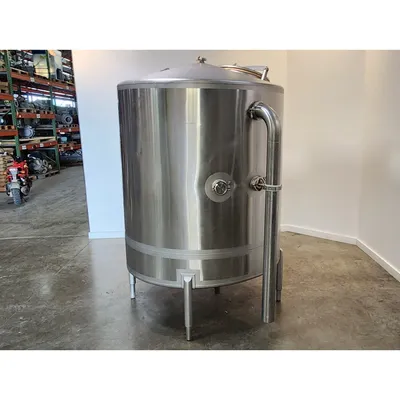

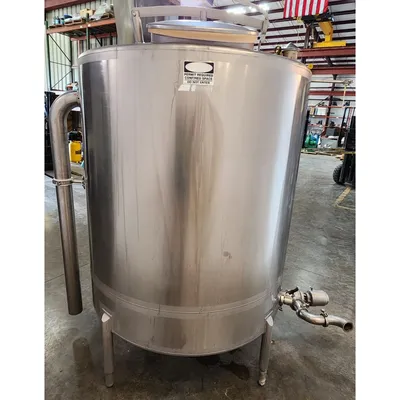

Used 475 Gallon Stainless Steel Liquid Holding Tank

Single wall, 316 stainless steel liquid tank with welded conical top and a sloped bottom.
Tank Cylinder: 53.75" diameter with a 58" vertical length, 14Ga wall thickness.
Side overflow allows a working volume of approximately 475 gallons.
Flooded capacity is near 570 gallons to top of the vertical wall.
Includes an installed hydrostatic level transmitter.
Top cone with an 18"Ø inspection hatch, 4" vent & flanged sanitary ports.

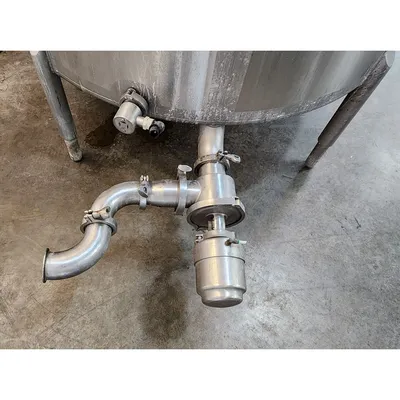

Sloped bottom with a 2.5"Ø sanitary drain and valve.
Ceiling clearance: 103' min. for inspection/access door swing.

FOB: Millwood, WV 25262

Item: 21142
 Size (gallons): 475
