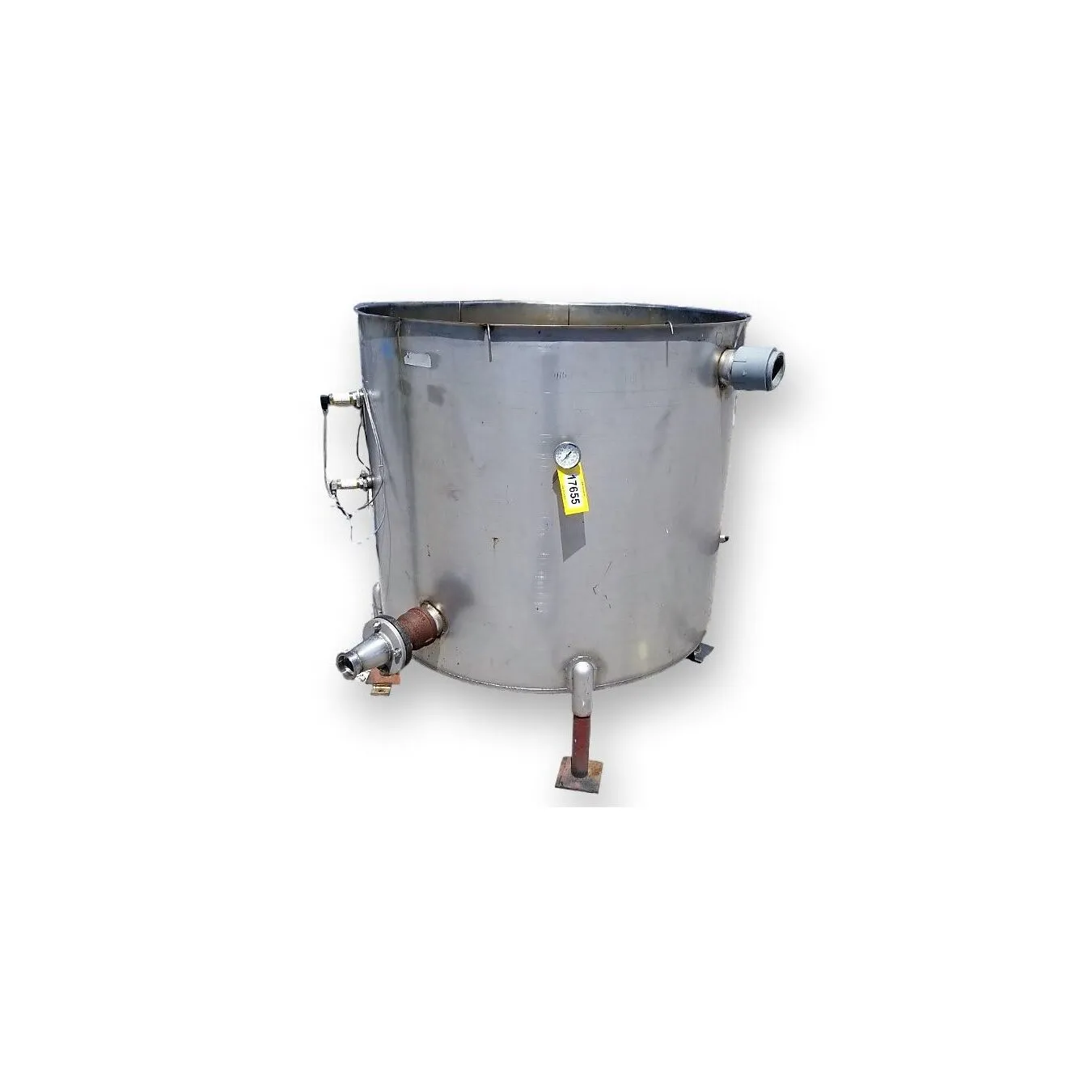

Used 420 Gallon Vertical Liquid Storage Tank

16Ga. formed & welded stainless steel sheet
56"Ø X 47" straight side with a formed top flange, open top
Sloped bottom with 1 1/2"NPT drain & ball valve
500 gallon flooded volume, 420 gallon working volume to overflow port
Pipe legs support (62" floor to top flange of tank)
Side ports: 4"NPT upper & lower, 2" tri-clover w/ included vibrating fork liquid level switches, 1/2"NPT w/temperature guage, 1"NPT
Previous use: Tomato Juice storage

FOB: Millwood, WV 25262

Item: 17655
 Size (gallons): 420
