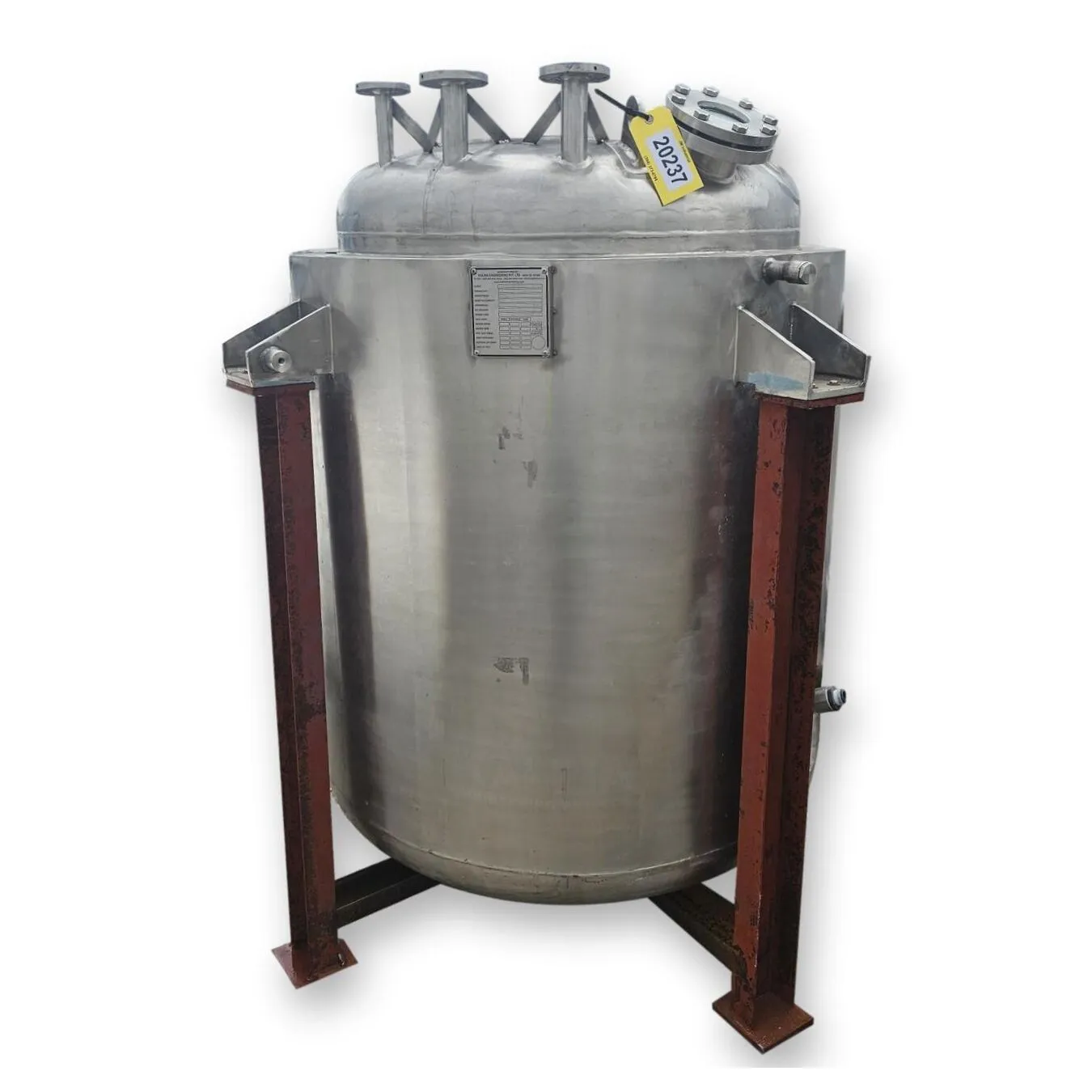

Used 1000L 264 GAL Jacketed Stainless Steel 316L Pressure Rated Mix Tank Vessel

Manufactured Date: 2017
Vessel shell is constructed of 316L stainless steel, cylinder wall thickness: 5mm
Vessel Dimensions: Ø1018mm X 1082mm cylinder length
Top & Bottom Heads: elliptical flange and dished
Tank side jacketing with 50mm thick insulation.
Operating Temperature: 40°C
Test Pressure: 2 KG/CM²g

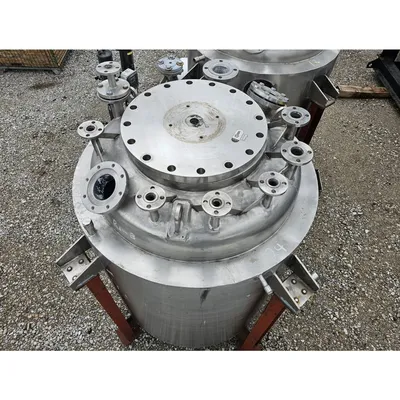

Internal baffle plates @ 90°, top-center mixer flange, inspection hatch, CIP spray ball.
Mixer/agitator not included.

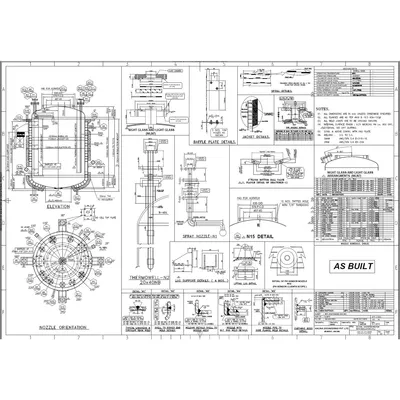

General Arrangement Drawing on file.

FOB: Millwood, WV 25262

Item: 20237

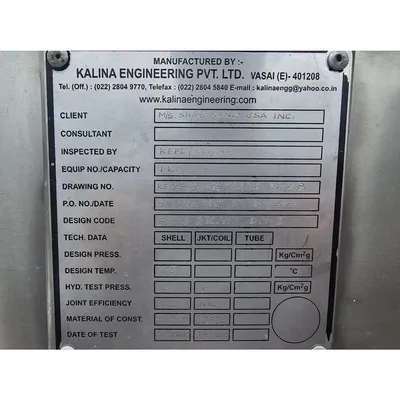

 MFG: Kalina Engineering
 Size (gallons): 264
