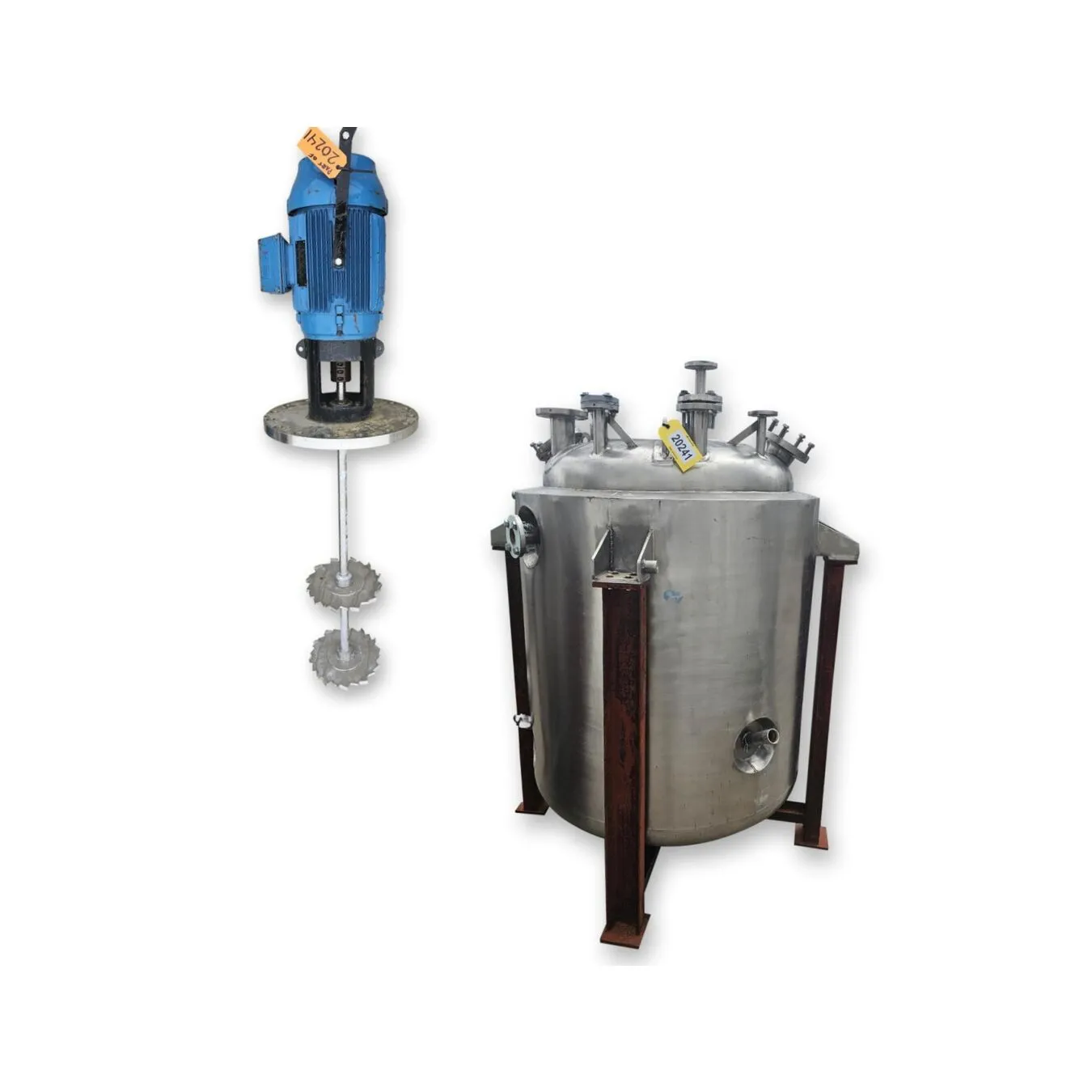

Used 1000L 264 GAL Jacketed Stainless Steel 316L Pressure Rated Mix Tank Reactor

Manufactured Date: 2017
Vessel shell is constructed of 316L stainless steel, cylinder wall thickness: 5mm
Vessel Dimensions: Ø1018mm X 1082mm cylinder length
Top & Bottom Heads: elliptical flange and dished
Tank side jacketing with 50mm thick insulation.
Operating Temperature: 40°C
Test Pressure: 2 KG/CM²g
Bottom-center drain with 3"Ø pneumatic actuated ball valve.

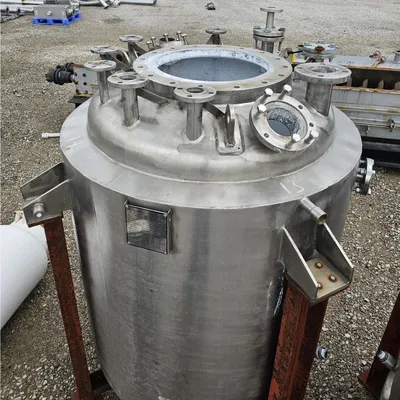

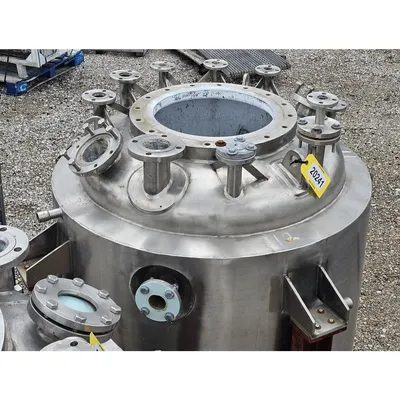

Internal baffle plates @ 90°, top-center mixer flange, inspection hatch, CIP spray ball.
Mixer: 20HP direct-coupled severe duty motor (208-230/460V, 60Hz, 3ph, 1175RPM)
Impellers (2): 14"Ø dispersion blades (high shear for agglomerations and solids)

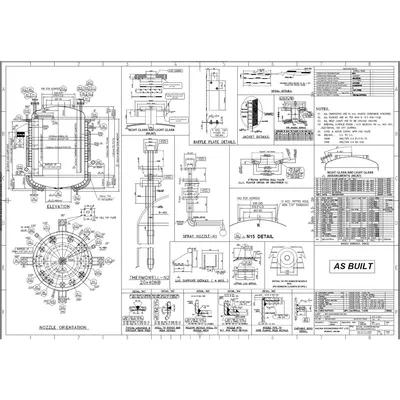

General Arrangement Drawing on file.

FOB: Millwood, WV 25262

Item: 20241

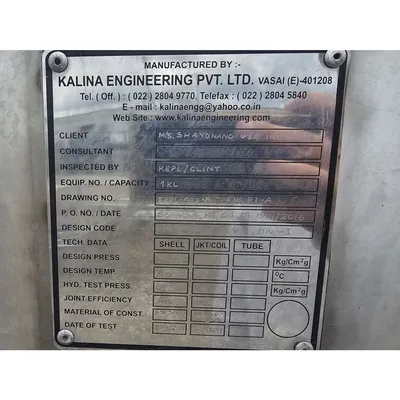

 MFG: Kalina Engineering
 Size (gallons): 264
