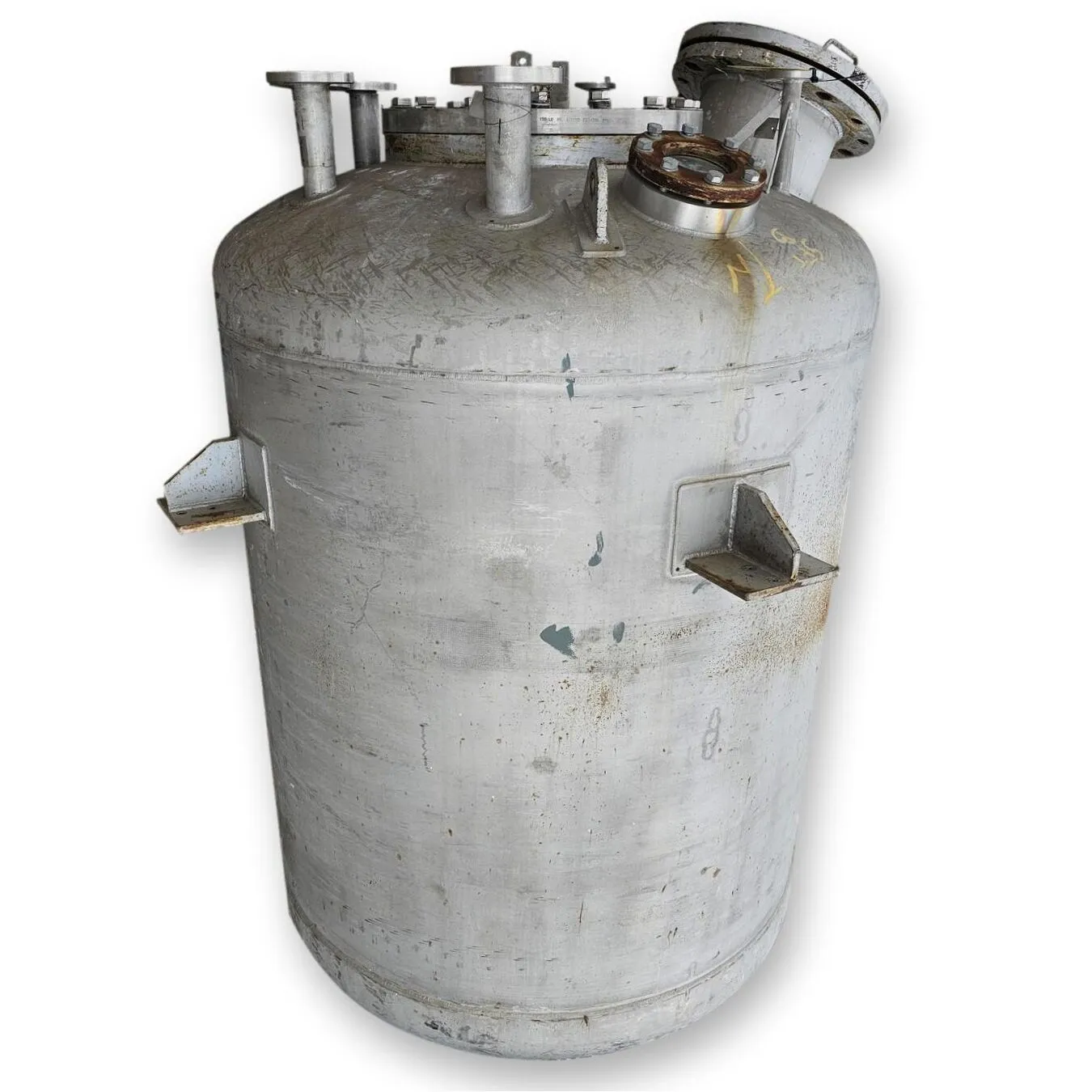

Used 1000L 264 GAL Stainless Steel 316L Reactor Slurry Feed MixTank

USD $9,000.00
1 available
Overview
Description

Manufactured Date: 2017
Vessel shell is constructed of 316L stainless steel, cylinder wall: 5.283mm
Vessel Dimensions: Ø1350mm X 1350mm cylinder length; Overall Vertical Height: 2001mm
Top & Bottom Heads: elliptical flange and dished
Design Temperature: 50°C
Test Pressure: 1 KG/CM²G
Four-point side saddle mounts, internal baffle plates @ 90°, top-center mixer flange and inspection hatch.
Tank does not include a mixer.
General Arrangement Drawing on file.

FOB: Millwood, WV 25262

Specifications

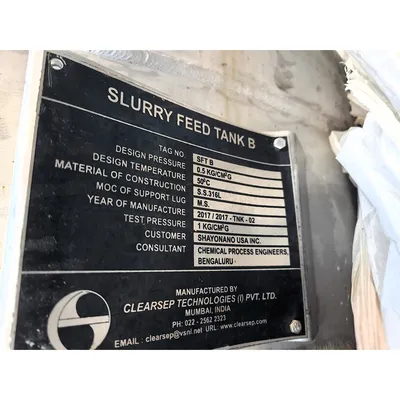

Item: 20242
 MFG: Clearsep Technologies (I) Pvt Ltd.
 Size (gallons): 264
