USED VIBRA SCREW 300 CF

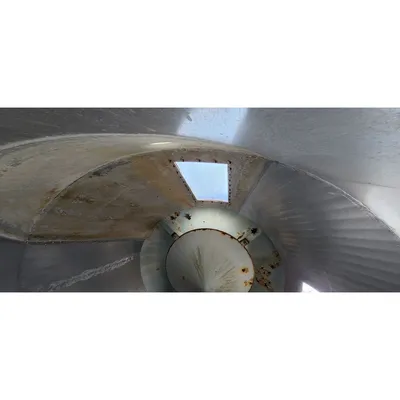

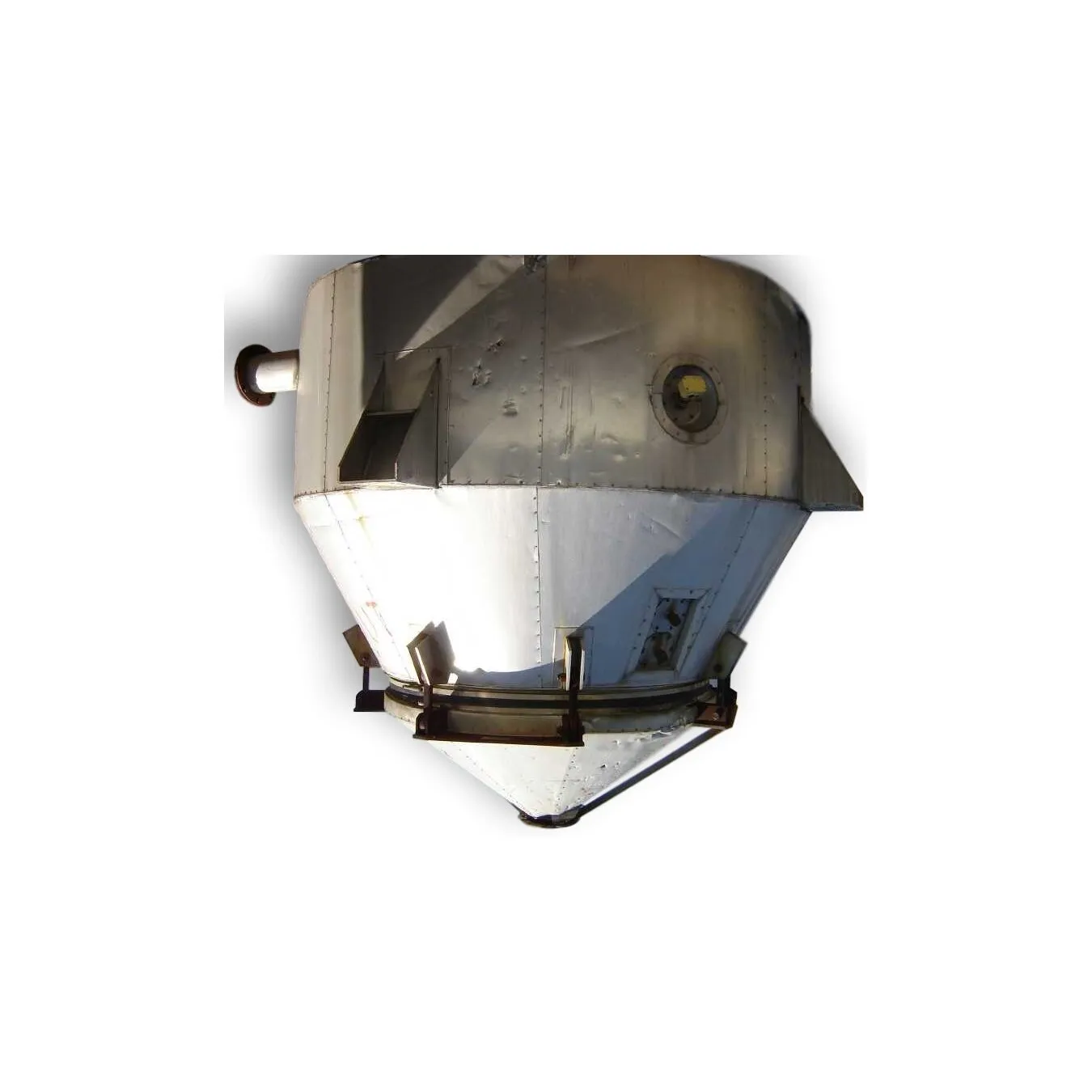

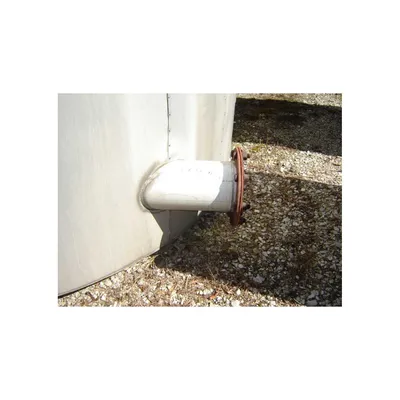

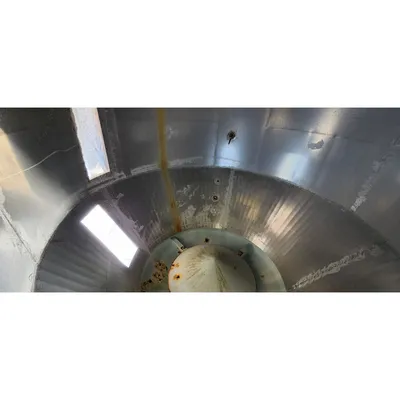

BIN MATERIAL CONSTRUCTION IS 6063 ALUMINUM. DIAMETER IS 8.5', STRAIGHT SIDE 43". CONE DIMENSIONS 36" HIGH AT 60 DEGREE ANGLE. UNIT IS EQUIPPED WITH A 6' VIBRA SCREW BIN ACTIVATOR, S/N-BA752032 WITH GYRATOR HOUSING BUT NO MOTOR. BIN ACTIVATOR IS CARBON STEEL CONSTRUCTION WITH 8" I.D. FLANGED OUTLET. O.D. OF OUTLET FLANGE IS 13.5". UNIT HAS FOUR 11" X 11" MOUNTING LUGS AND BIN VENT FILTER FLANGE ON TOP. COMPLETE WITH TWO 8" FLANGED TANGENTIAL SIDE NOZZLES, ONE 2" LEVEL PROBE AND TWO ADDITIONAL LEVEL PROBE NOZZLES. UNIT IS ALSO EQUIPPED WITH TWO 12" X 28" SITE WINDOWS IN CONE SIDE AND ONE 12" X 32" SITE WINDOW IN STRAIGHT SIDE OF BIN. UNIT HAS APPROXIMATELY 3" INSULATED COVERING ON BIN AND BIN ACTIVATOR.

FOB: Millwood, WV 25262

Item: 01673      Model :   300 CF
 MFG:  Vibra Screw
 Size (cubic feet): 300
