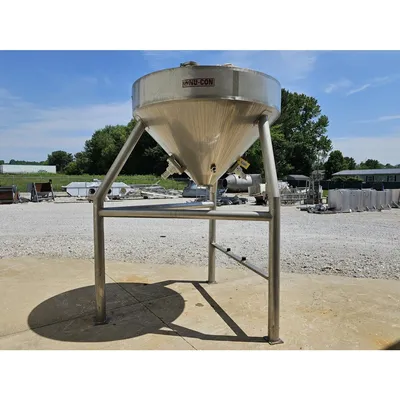

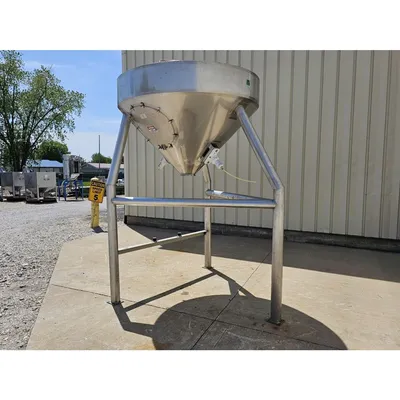

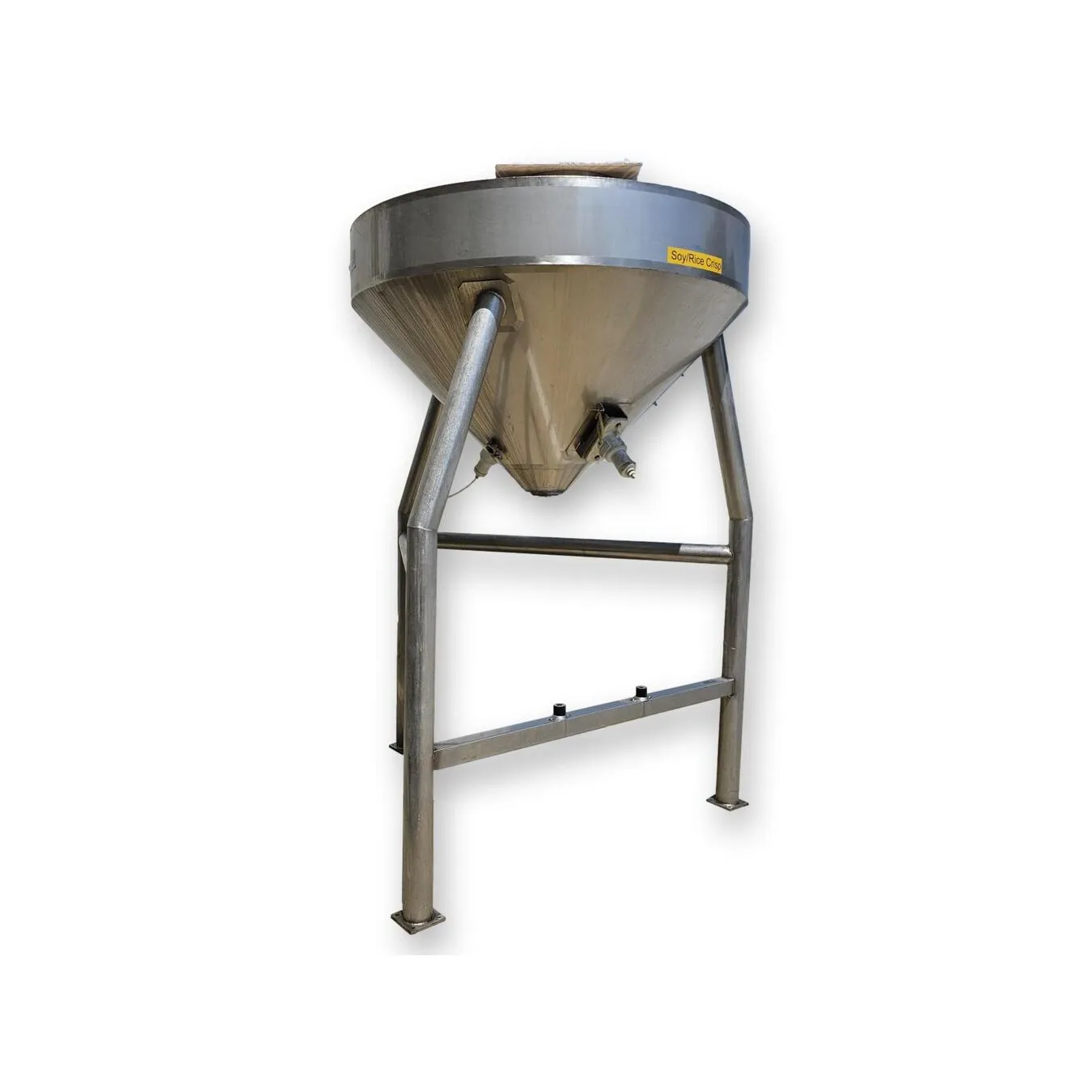

Used Nu-con Stainless Steel Dry Storage Hopper Bin - 50 Cu/Ft

All welded stainless steel sheet construction,12Ga wall thickness on the bin

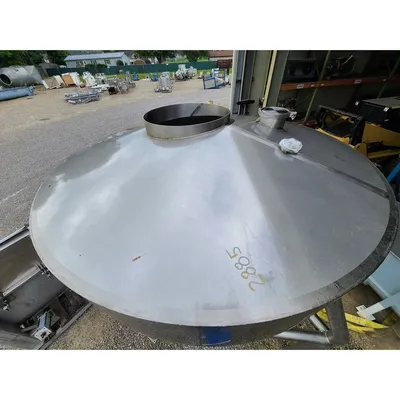

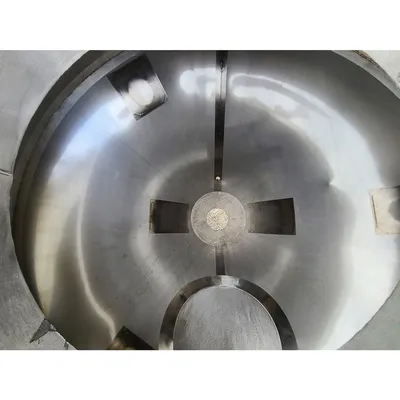

Bin measures 72" diameter with a 12" straight side, 45° bottom cone, 15° welded top
Braced 4"Ø pipe legs, 3-point base area on 78" centers
Product Inlet: 19.5"Ø sleeve (off-center)

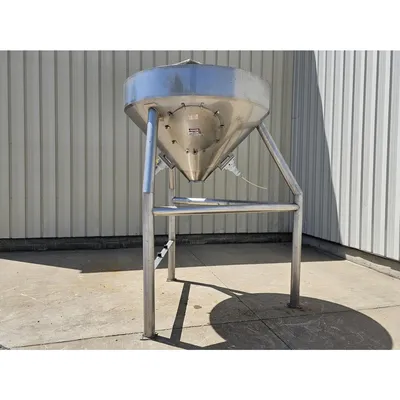

Bottom cone is fitted with opposing pneumatic vibrators and bottom-hinged 22"Ø hatch w/gasket
Bottom discharge: 8"Ø sanitary flange (62" above floor elev.)
Total Height: 117"
Weight = 880 LBS.

FOB: Millwood, WV 25262

Item: 19579

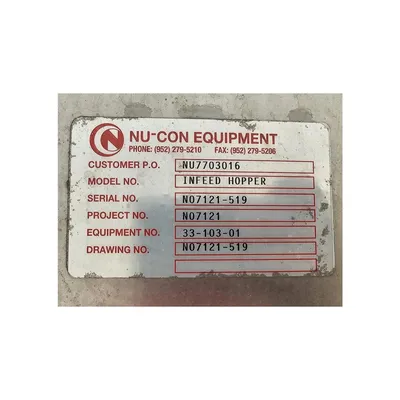

 MFG: Nucon
 Size (cubic feet): 50
