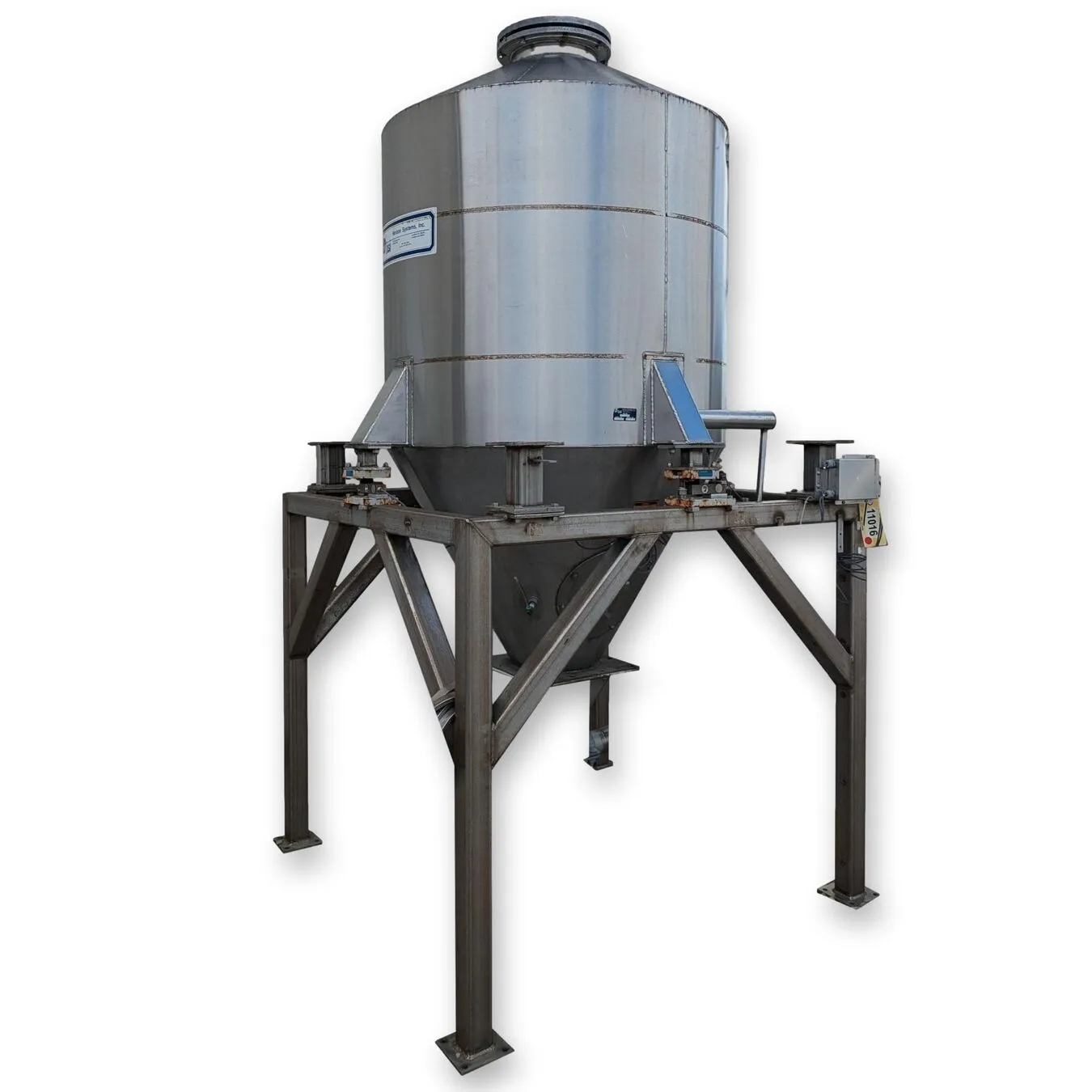

Used Horizon Systems Stainless Steel Dry Storage Weigh Bin - 50 CU/FT

USD $3,500.00
1 available
Overview
Type:
Hoppers
Stock #:
11016
Description

All stainless steel construction, 11Ga. welded stainless steel sheet.
Bin measures 48" in diameter with a 42" vertical side.
30° top cone with a centered 12"Ø flanged inlet, 3" vent sleeve, and triangular opening.

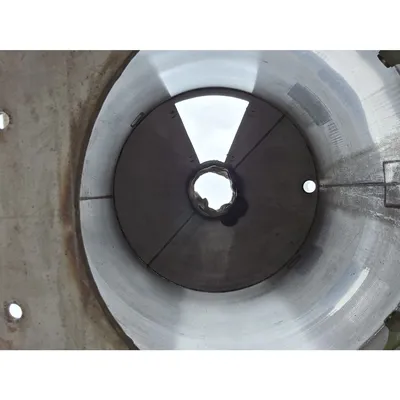

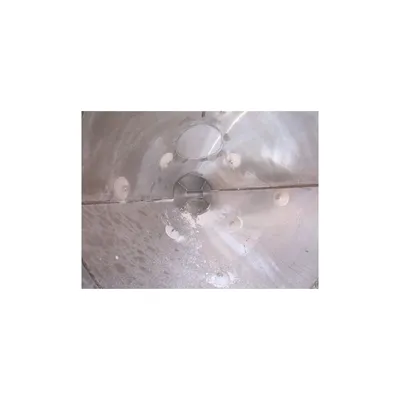

60° bottom cone hopper with pneumatic rubber disk agitators, and bolted access panel.
Outlet: 12" square flange, 28" clearance below outlet.
3" square box tubing support stand (60" square base area).

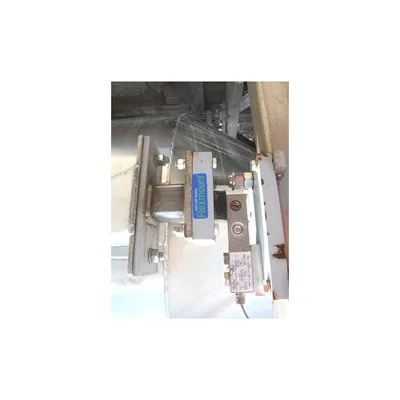

Four-point Mettler Toledo flexmount shear beam load cells (2,500LB) w/ junction box.
Overall Height: 9'-8"

FOB: Millwood, WV 25262

Specifications

Item: 11016

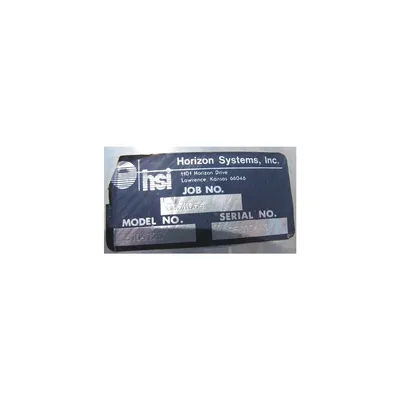

 MFG: Horizon Systems, Inc.
 Size (cubic feet): 50
