Used 40 CUBIC FOOT Stainless Steel BLENDING / DRYING BIN
Overview

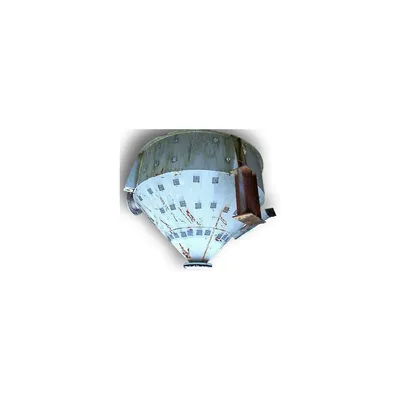

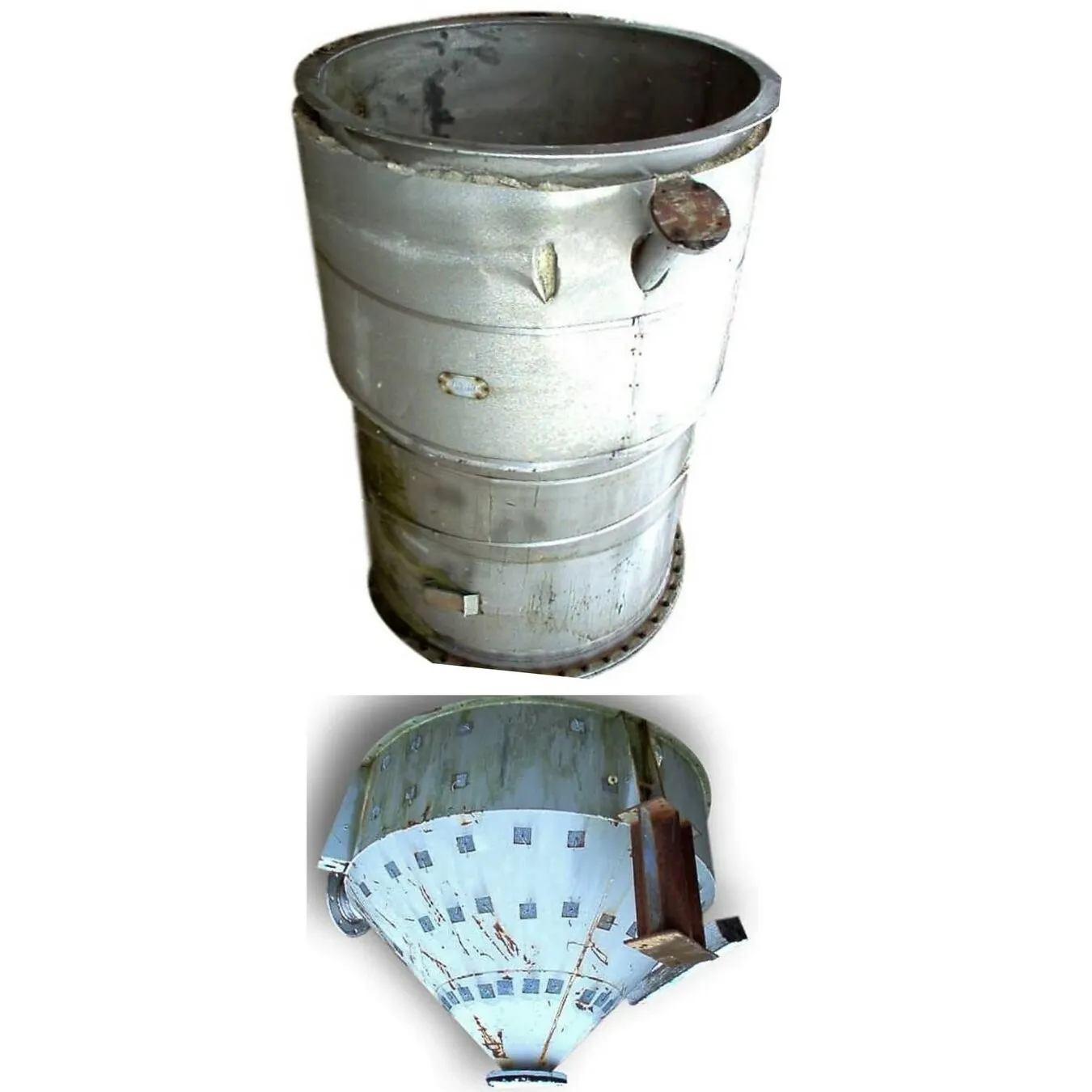

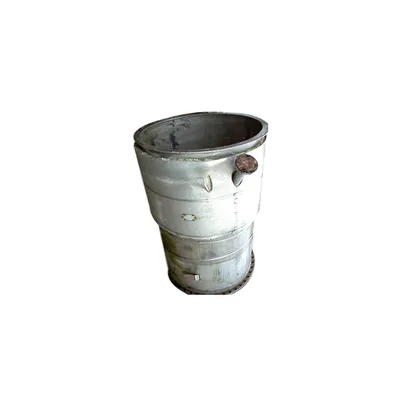

BUILT BY WARD TANK CORPORATION, CHARLOTTE, NORTH CAROLINA. STAINLESS STEEL CONSTRUCTION. 53-1/2" DIAMETER WITH 82" STRAIGHT SIDE. COVER IS 1/2" THICK STAINLESS STEEL FLANGED/BOLTED. COVER HAS ONE, 4" FLANGED INLET, ONE IS 6" FLANGED INLET. BIN HAS SEPARATE BOTTOM FLANGED CONE SECTION THAT IS 17" HIGH STRAIGHT SIDE WITH 45 DEGREE SLOPE, 6" FLANGED OUTLET. HOPPER BOTTOM HAS 8" FLANGED HOT AIR INLET. HOPPER HAS PERFORATED INTERIOR CONE WHICH IS SUITABLE FOR AIR DISTRIBUTION AND MATERIAL BLENDING. CONE ALSO HAS 4" FLANGED SIDE OUTLET ON THE SIDE OF THE HOPPER. BOTTOM SECTION OF CONE HAS FOUR LIFTING LUG LOCATIONS. SHELL IS PARTIALLY INSULATED. BOTTOM PART OF CONE HAS INSULATION CLIPS. SHELL MAXIMUM ALLOWABLE WORKING PRESSURE IS 5 PSIG AT 320' F. SHELL TEST PRESSURE IS 7.5 PSIG. SERIAL NUMBER IS W-1124D. UPPER SHELL ALSO HAS 3" FLANGED NOZZLE; 8" FLANGED NOZZLE NEAR TOP OF STRAIGHT SIDE OF SHELL WITH FLOATING VAN-STONE TYPE OF FLANGE.
FOB: Millwood, WV 25262
Specs
Item: 01066
MFG: Ward Tank Corporation
Size (cubic feet): 40
