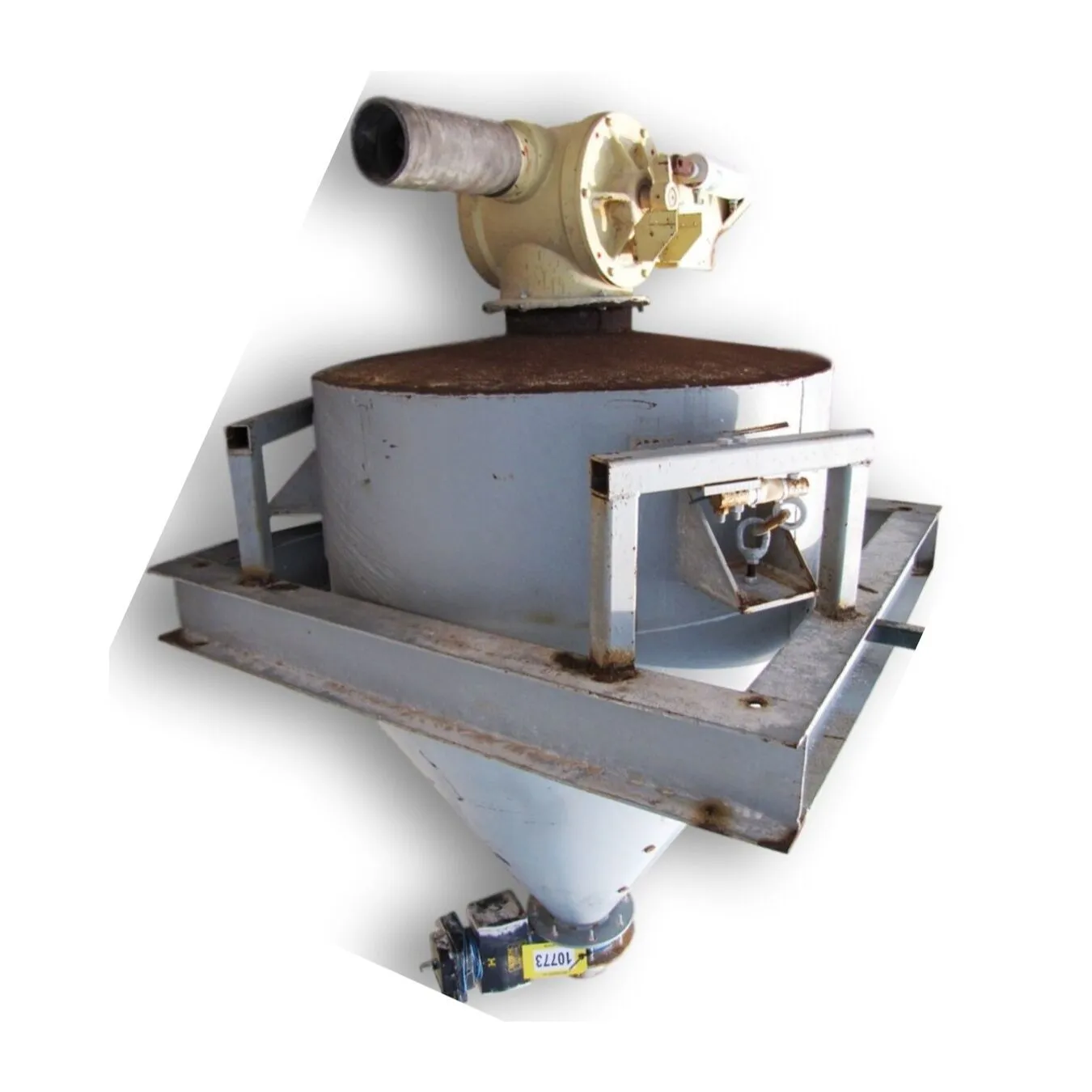

Used 26 Cubic Foot Weigh Hopper With Inlet Diverter Valve

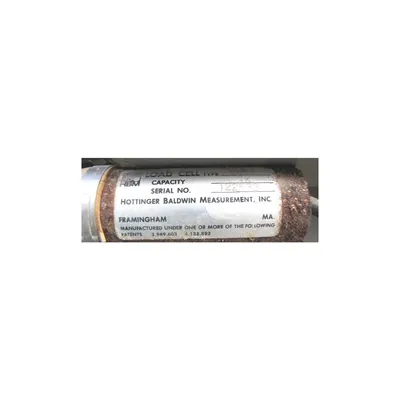

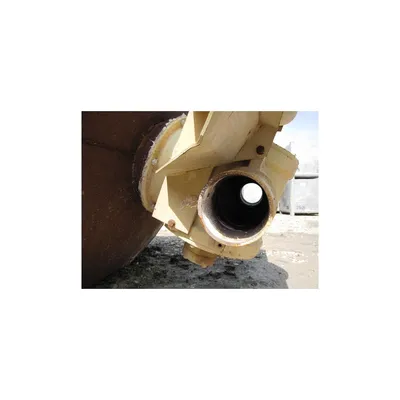

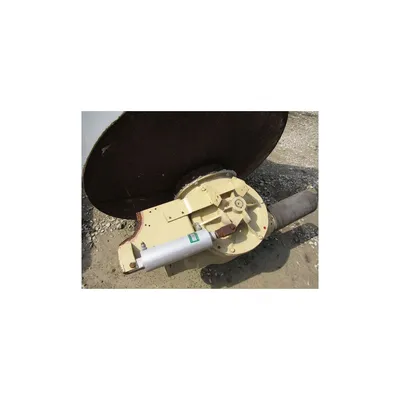

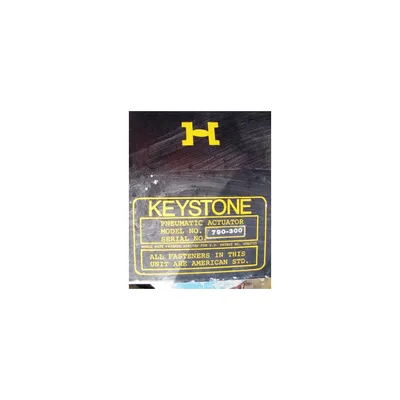

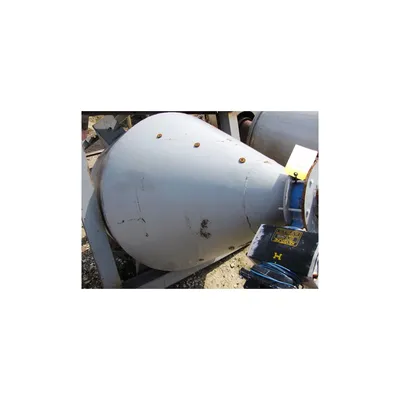

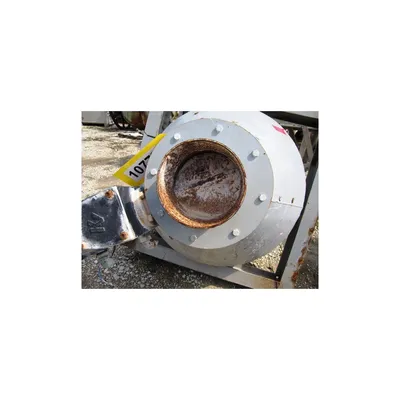

Carbon steel bin measures 40" dia. With a 24" straight side height, cone is 32" H. And transitions to a 6" dia. Flanged discharge. A butler mfg. Pneumatically controlled diverter valve is mounted to the 9" dia. Top inlet and has 4" dia. Sleeves for pneumatic conveying line. Bin is suspended on three 1000lb bending beam type load cells mounted to a 52" sq. Steel base frame. Hopper cone has a 6" butterfly valve controlled by a keystone pneumatic actuator. 26 cubic feet is the total volume.

FOB: Millwood, WV 25262

Item: 10773
 Size (cubic feet): 26
