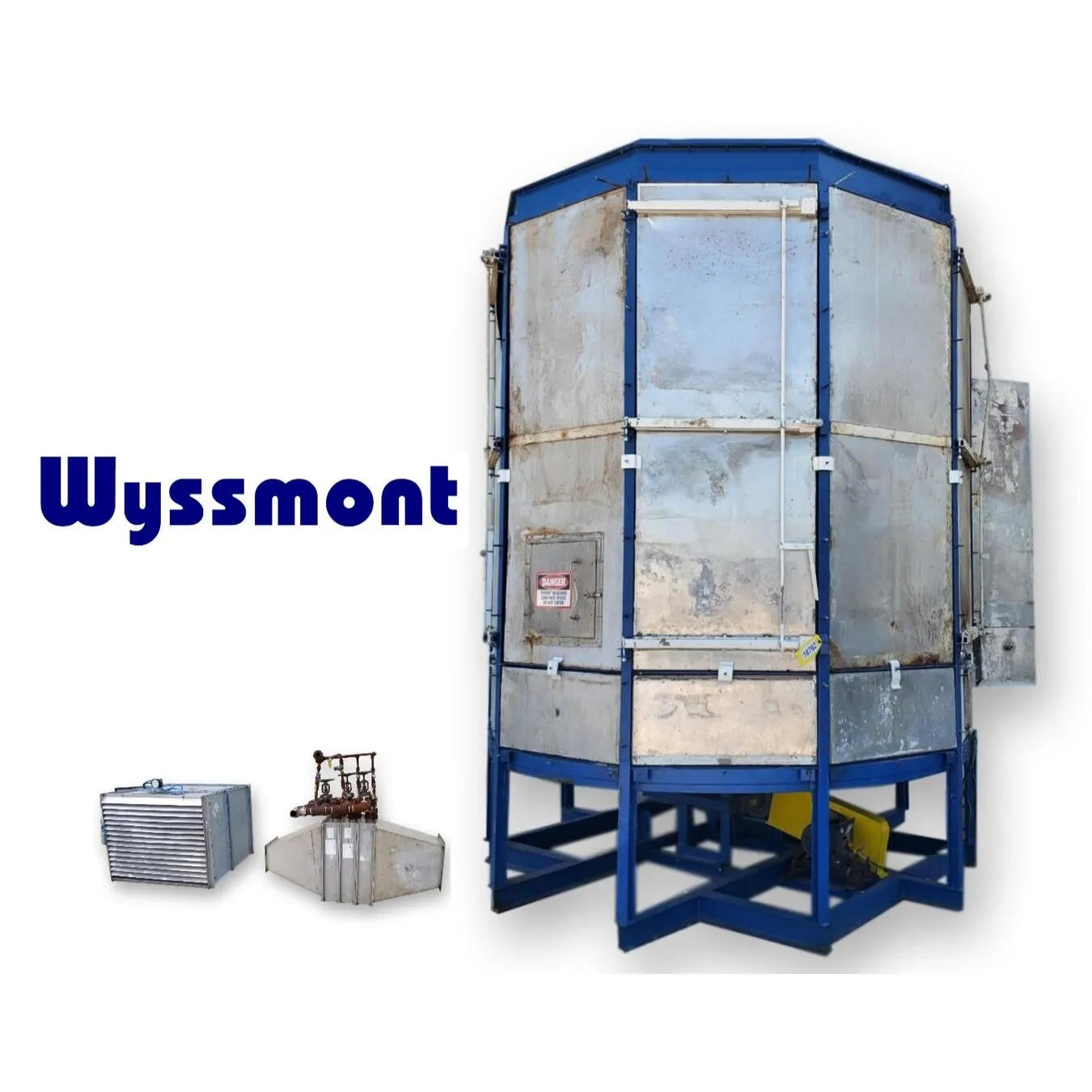

USED WYSSMONT CO., INC. N22
Overview
Description

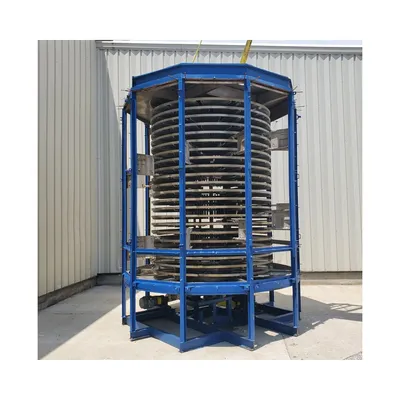

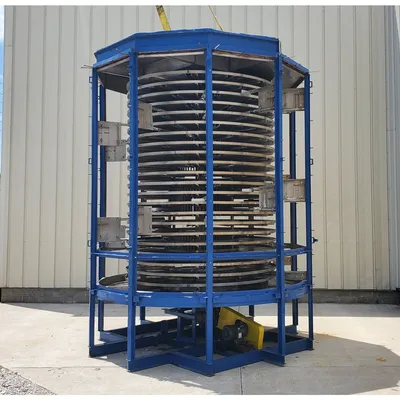

Structural steel support frame with 1.5" thick insulated panels, stainless steel sheet cladded.
Base area is a decagon shape measuring 9'-9" across corners
12'-0" roof height with a 5" step-down level.

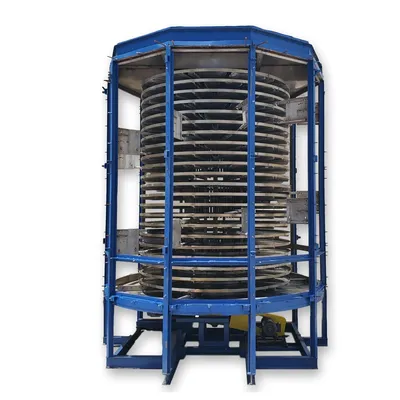

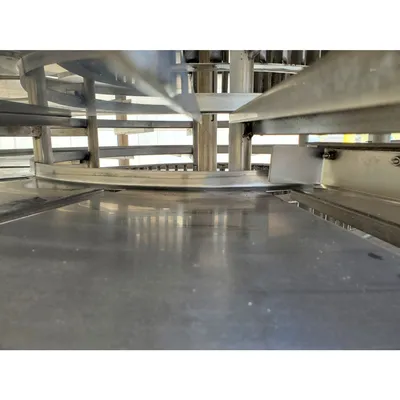

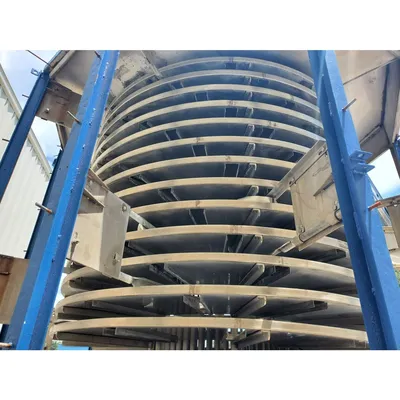

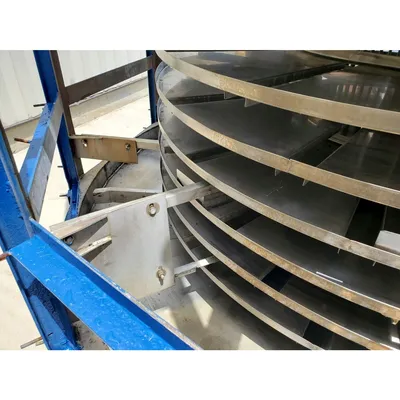

Dryer Trays: quantity of 22, diameter of 78", stacked at 4-11/16" spaces
Product Inlet (roof): 5" X 15" sleeve @ 12'-7" elev.
Product Discharge: 5.5" X 23" opening @ 2'-5-1/4" elev.
Drying Air Outlet (roof): 18"Ø opening @ 12'-0" elev.

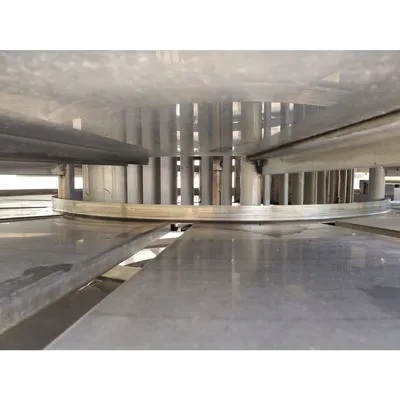

Turbo Fan Drive: 1.5HP with Roto-clone variable speed pulley

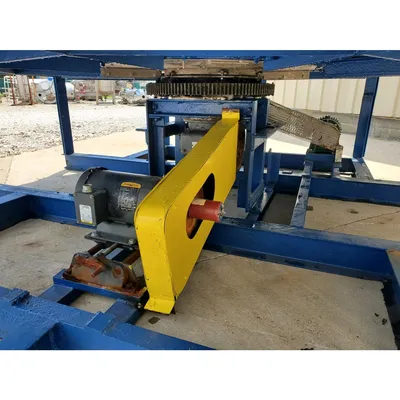

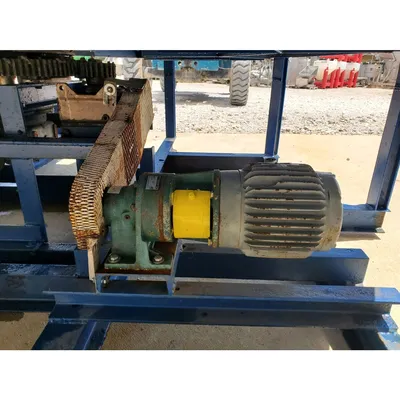

Tray Drive: 1HP gearmotor & chain

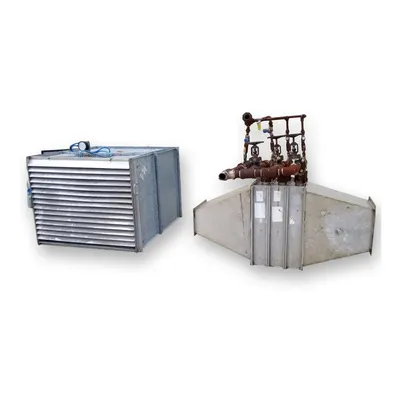

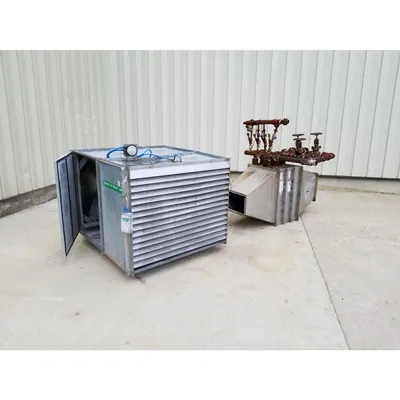

Heating Coils: quantity of 3 inline Aerofin steam coil heating units
Inlet Air Filter: filter housing, holds 44"W X 35"H HEPA filters
Does not include heater fan
120" Diameter (129" W overall) x 151" H.
Weight ~ 12,000 pounds
Cover panels included.
FOB: Millwood, WV 25262
Specifications
Item: 16762 Model : N22
MFG: Wyssmont Co., Inc.
