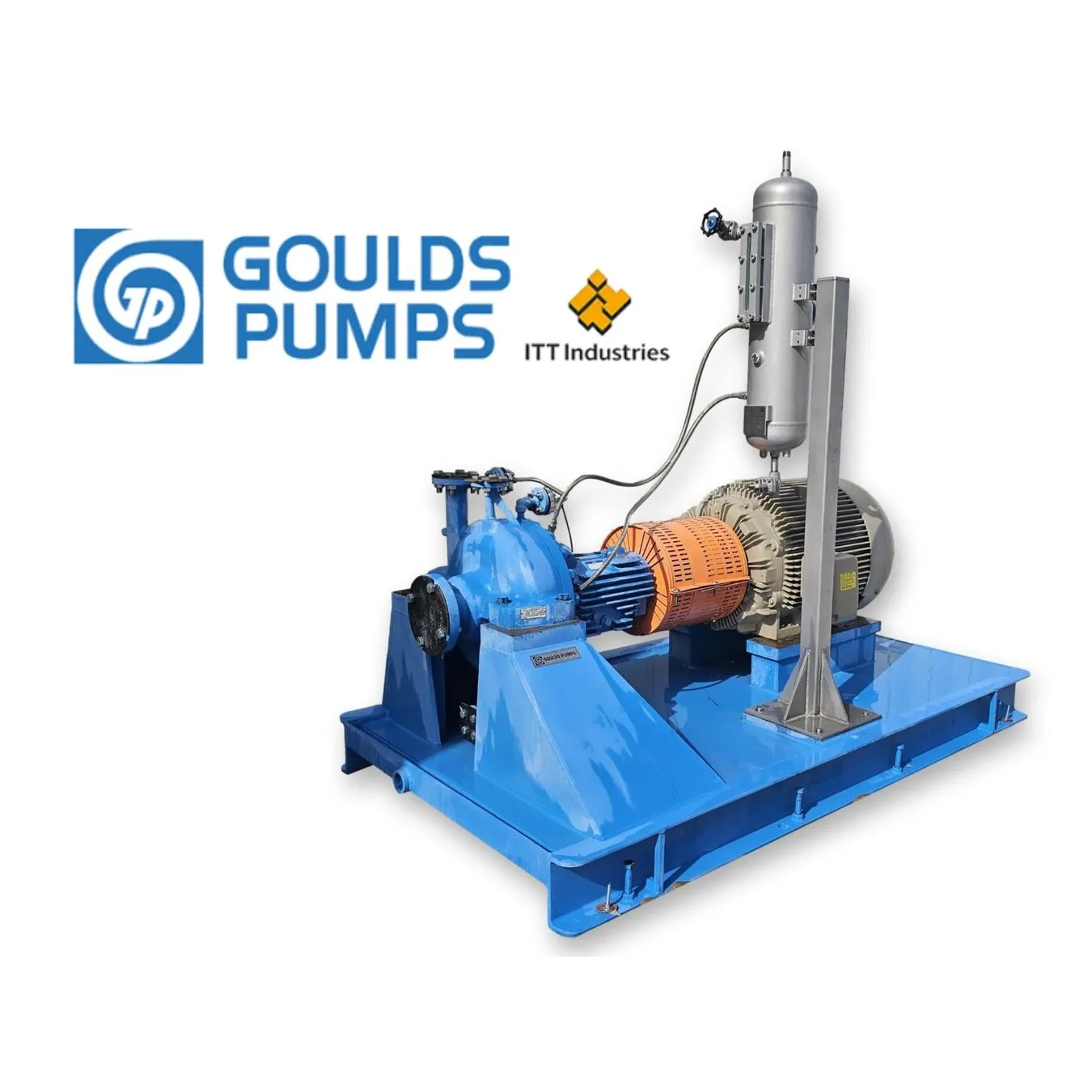

NEW GOULDS 3700 LX

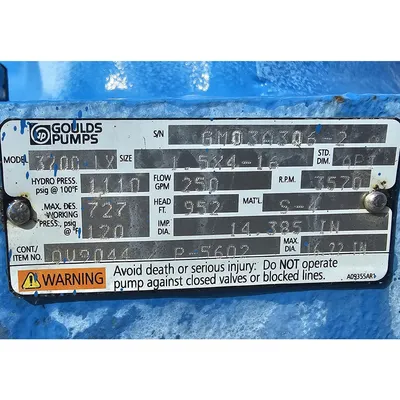

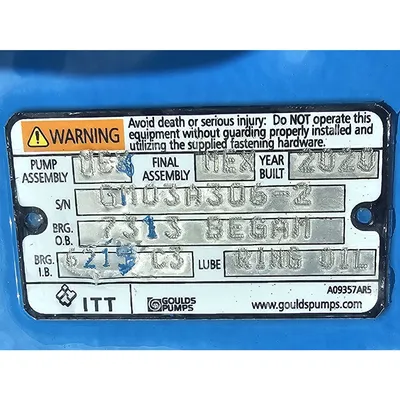

S/N: GM03A306-2; Date of Manufacture: 2020
The 3700 LX is a centerline-mounted, end-suction centrifugal process pump, meets API 610 specification.
Cast iron, dual volute overhung casing, radially split design.
Flow Rate: 250GPM
Head: 952'
Impeller: Ø14.38" (max.: Ø16.22")
Max. Design Working Pressure: 727PSIG @ 120°F
Max. Temperature: 800°F
Inlet: 4"Ø ANSI 300 RF flange
Outlet: 1.5"Ø ANSI 300 RF flange

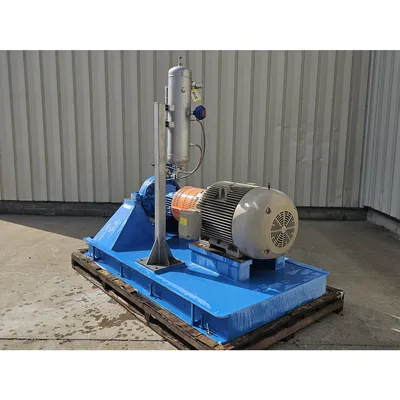

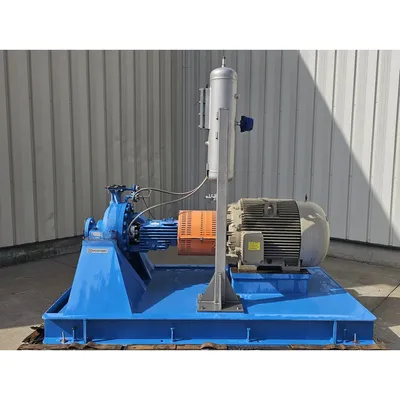

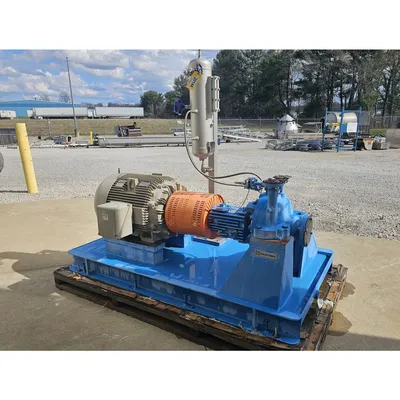

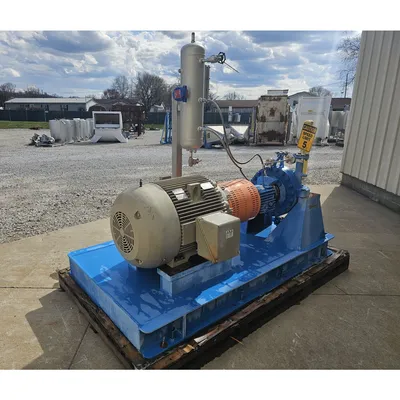

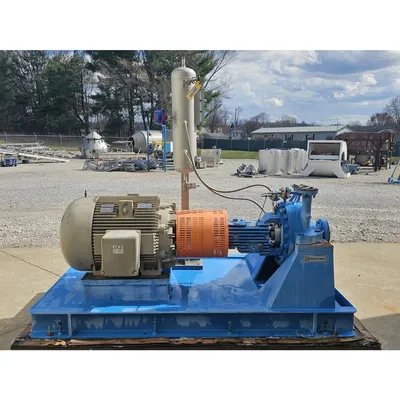

Heavy-duty base skid assembly with sump (18"W X 58"L).

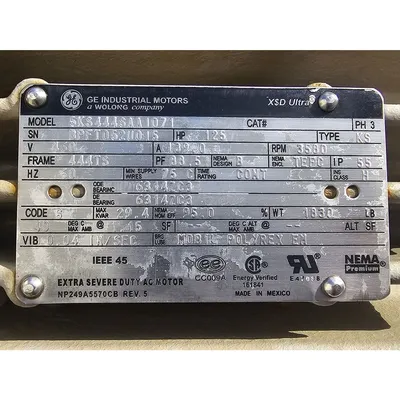

125HP severe duty drive with barrier fluid cooling for the mechanical seal.
Supply Power: 460V, 60Hz, 3ph, 3,580RPM
Overall dimensions: 105x63x94"
Weight = 5,610 LBS

FOB: Millwood, WV 25262

Item: 20144      Model :   3700 LX
 MFG: Goulds
 GPM: 250
  HP: 125
