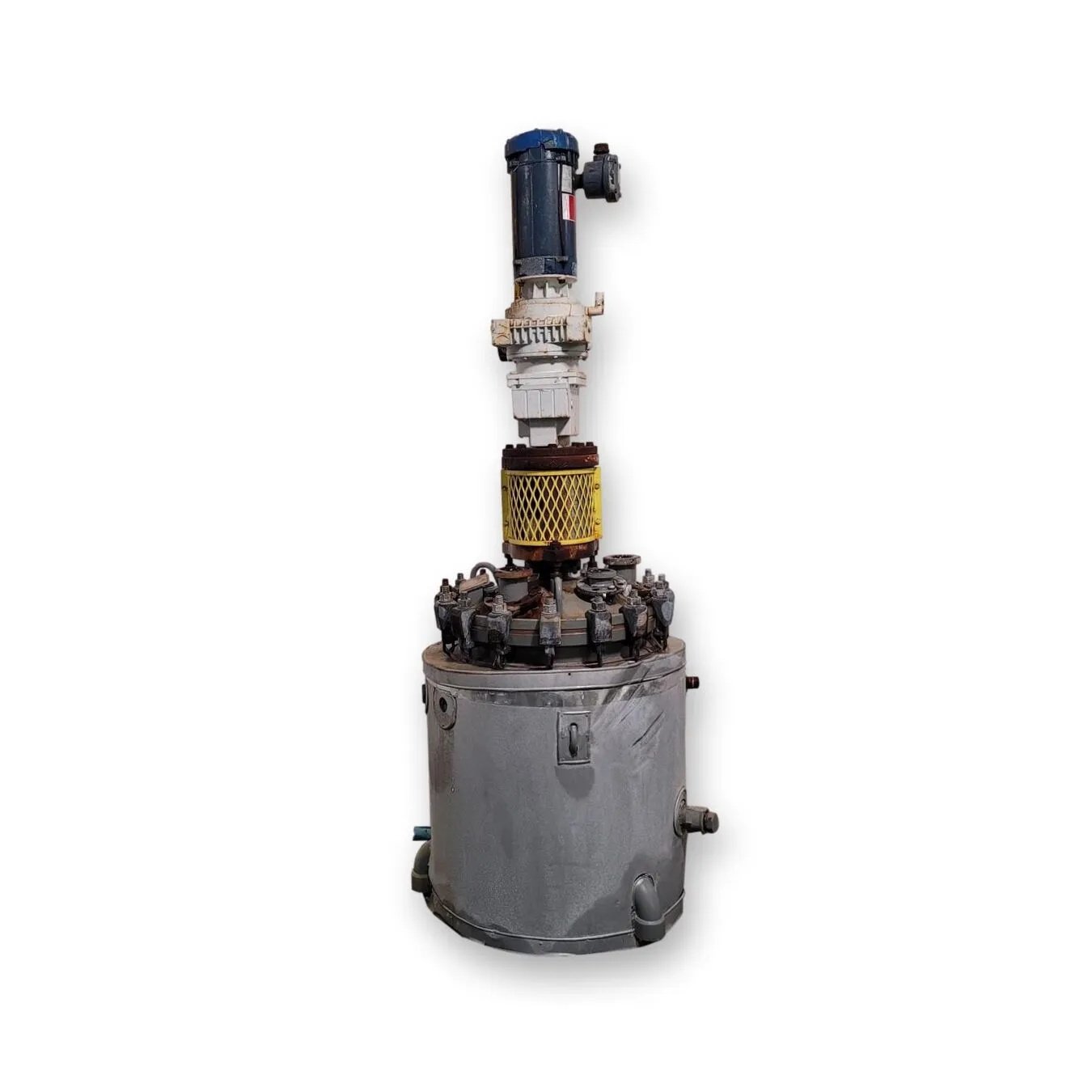

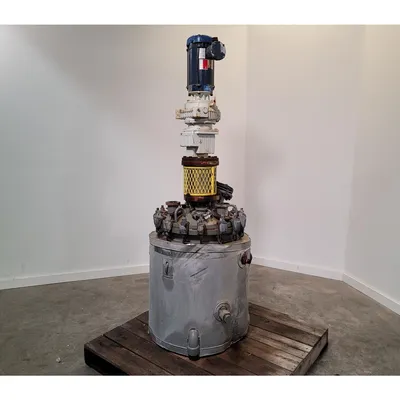

Used De Dietrich 30 Gallon Jacketed Glass-Lined Mixer Reactor

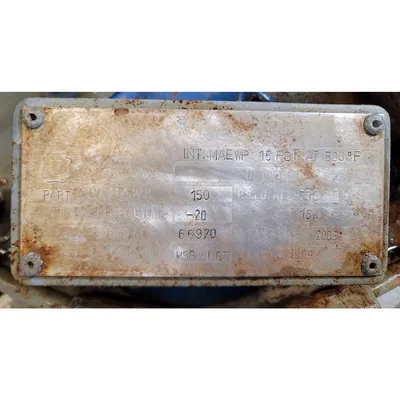

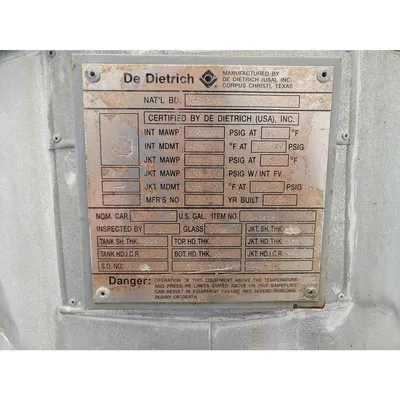

National Board Certified No: 1842
Carbon steel construction on the housing

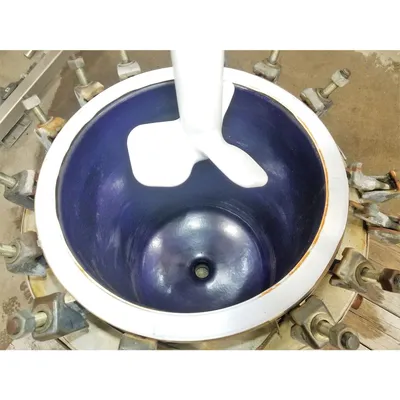

Reactor is 18"Ø with enameled 3009 glass lined interior surfaces

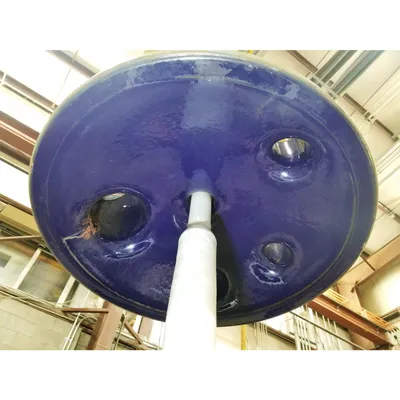

Bolt-on dished head top cover
Dished head bottom with 2"Ø flanged drain
Shell Rating: 150 PSI and full vacuum at 500°F
Jacket Rating: 115 PSI and full vacuum at 500°F

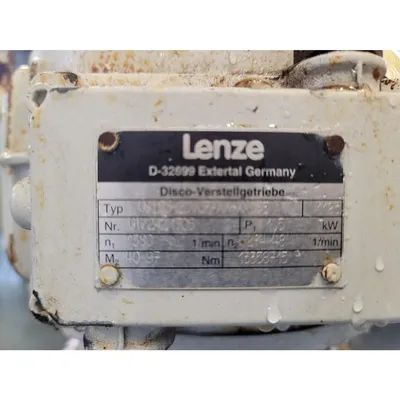

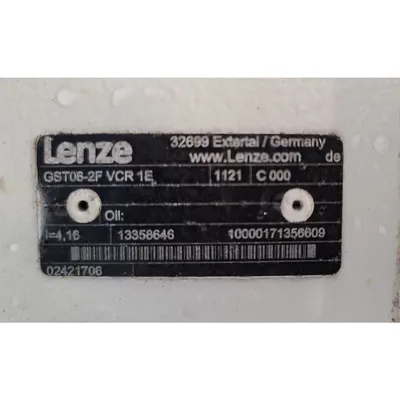

Top-mounted 1.5HP vertical agitator with glass lined 3-blade impeller
Lower housing installed with 2.5" thk. Insulation, outer cladded
Three- 2 1/2"NPT pockets for support legs

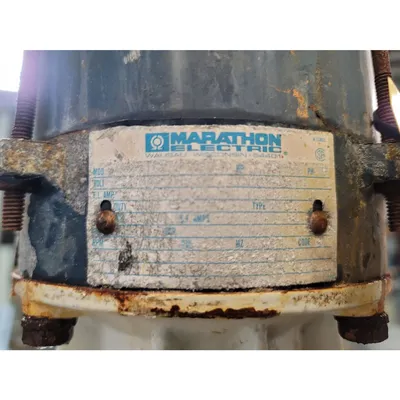

Power (Mixer Drive): 230/460, 60Hz, 3ph
Overall Height: 80"
Shipping weight = 1,181 lbs.

FOB: Millwood, WV 25262

Item: 18630
 MFG: Di Dietrich Process Systems
