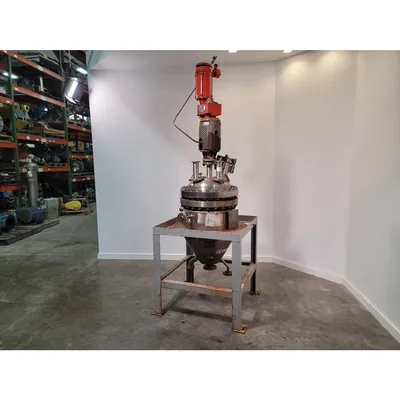

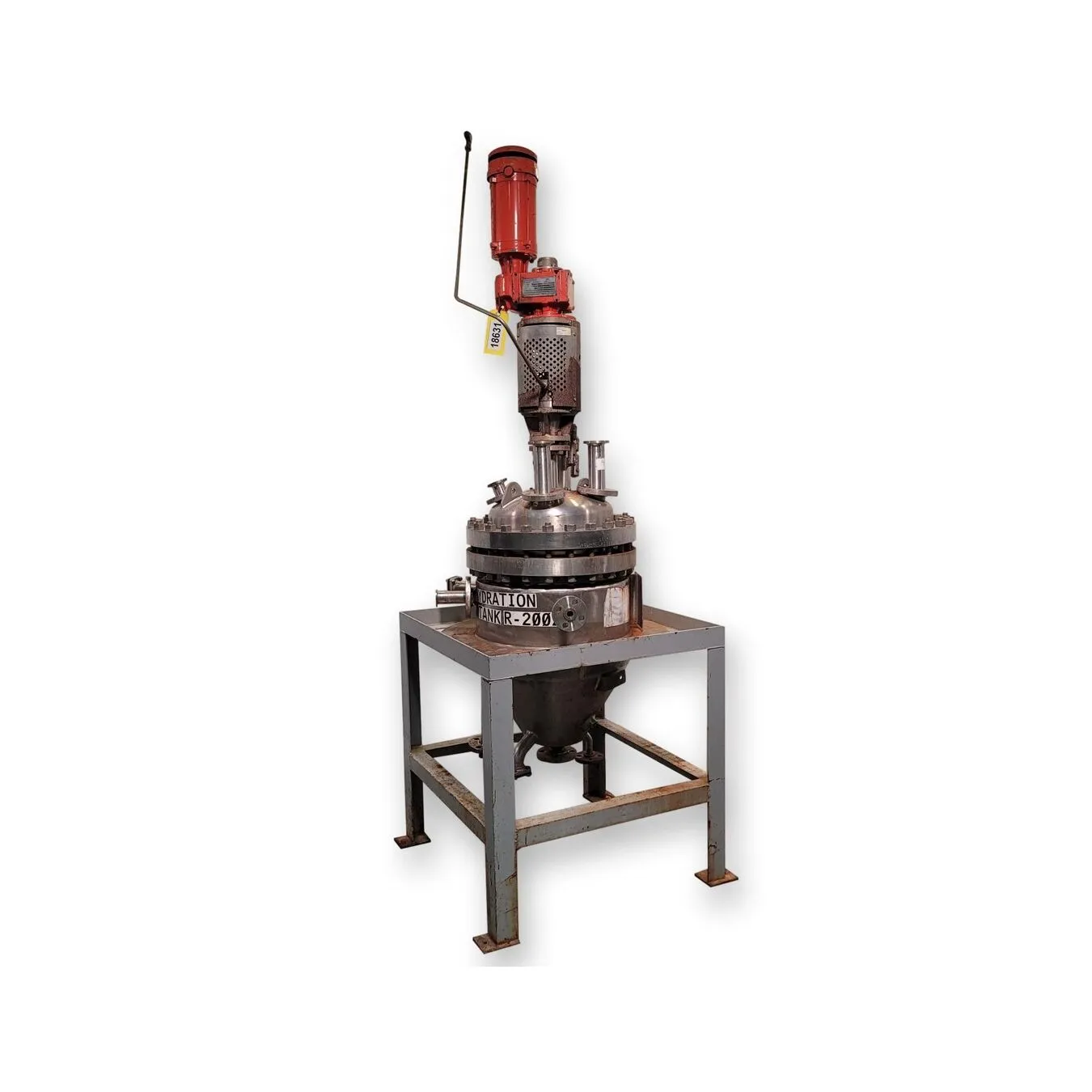

Used Robert Mitchell Co. 20 Gallon Stainless Steel Jacketed Reactor

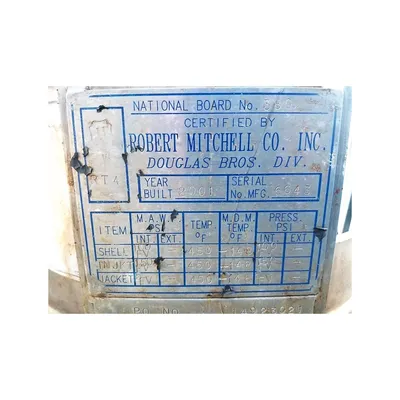

National Board No: 380
Interior chamber and heads of jacket are constructed of SB 575 N10276 (a Ni-Cr-Mo alloy with excellent corrosion resistance in both oxidizing and reducing atmospheres)
Outer jacket is constructed of 316L Stainless Steel
Reactor is 18"Ø with a dished head, bolt-on top cover

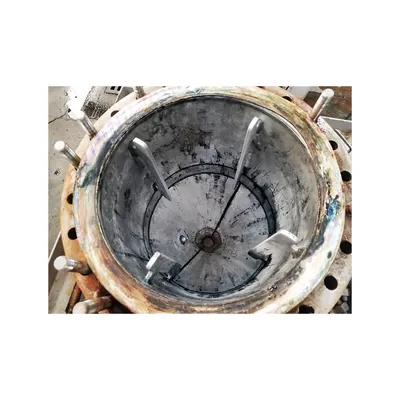

Internal sidewall baffles
60° jacketed bottom cone with 2"Ø flanged drain
Shell Rating: 100PSI and full vacuum at 450°F
Jacket Rating: 150PSI and full vacuum at 450°F
Top-mounted 2HP Proquip vertical agitator (460V, 60Hz, 3ph)
Overall Height: 105"

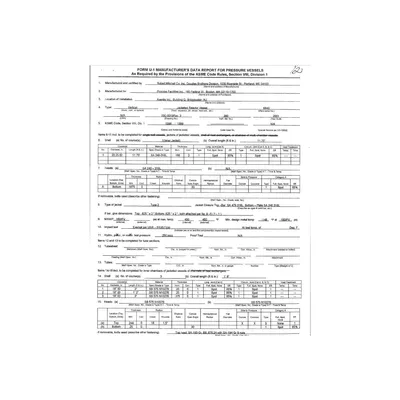

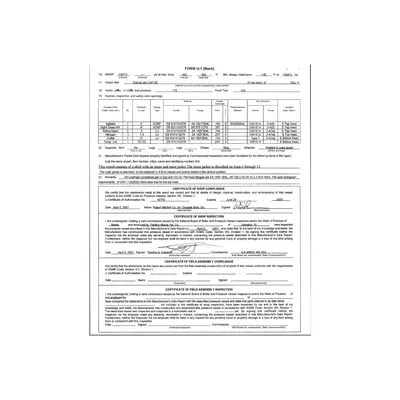

National Board Data Report on File.

FOB: Millwood, WV 25262

Item: 18631
 MFG: Robert Mitchell Co.
