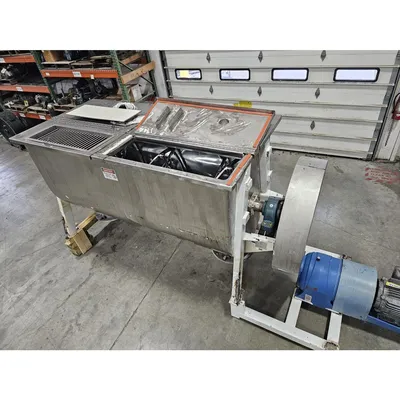

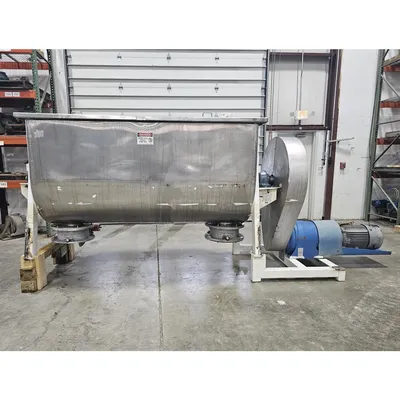

USED THE STRONG SCOTT MFG. CO. IMHS-87

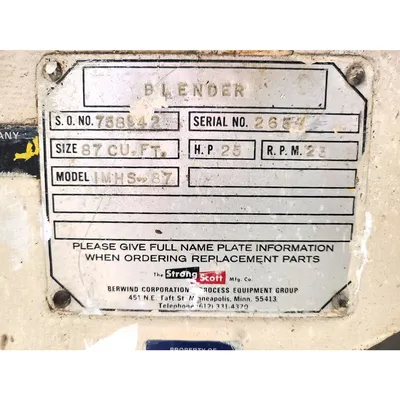

Serial Number: 2654

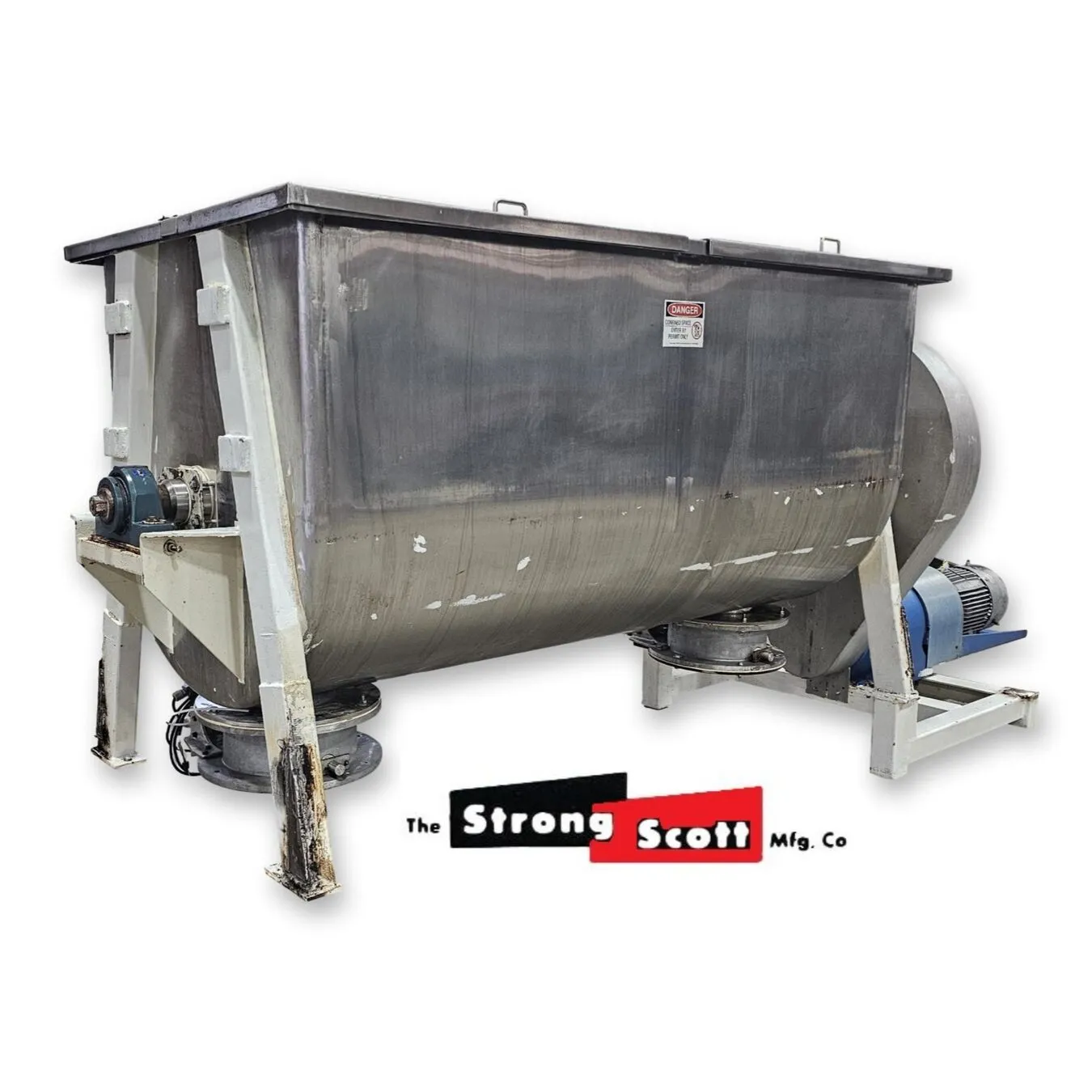

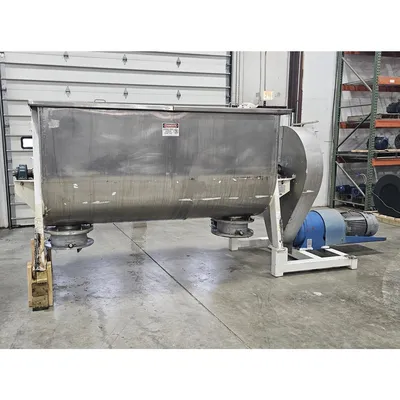

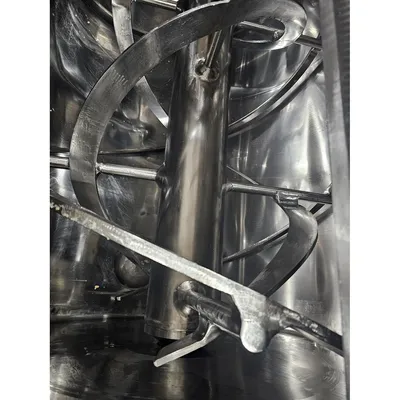

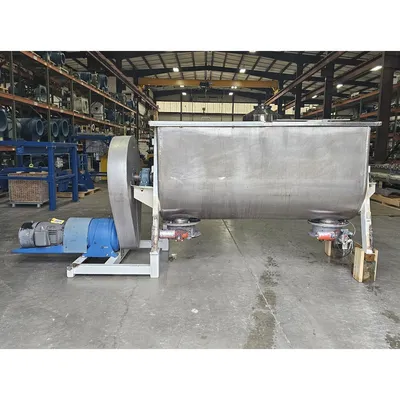

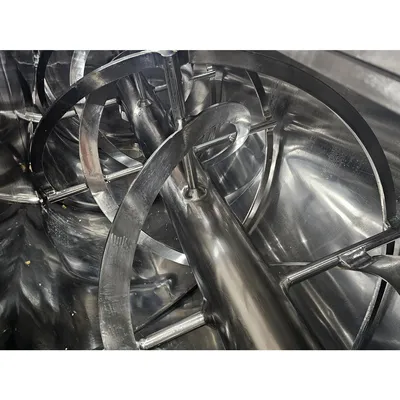

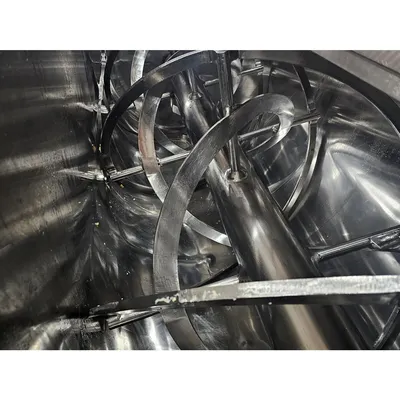

Stainless steel blending chamber with a sanitary finish on internal surfaces.
Blender Dimensions: 45"W X 98"L X 48"D (0.141" wall thickness)
Full cover with four hinged panels having multiple ports for product or venting.
Product Discharge: 14"Ø pneumatic actuated dome valves at each end.
Floor elevation to top cover: 75"

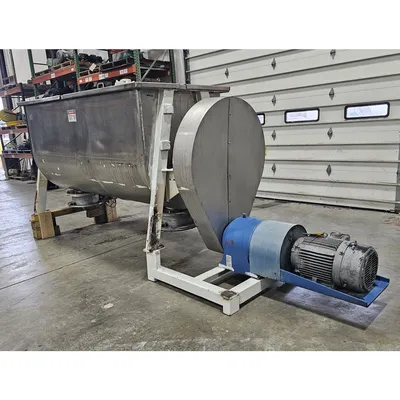

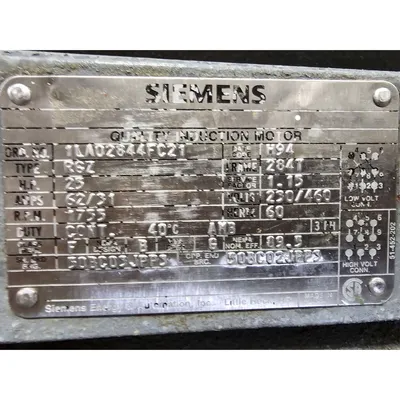

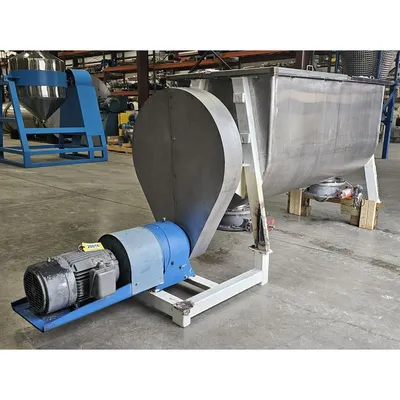

Drive: 25HP motor coupled to a concentric gear unit with chain reduction.
Supply Power: 230/460V, 60Hz, 3ph AC
Working RPM: 32
Overall dimensions: 187" L x 53" D x 78" H.
Weight = 4,620 LBS.
*Will require additional fabrication to the carbon steel support assembly.

FOB: Millwood, WV 25262

Item: 20016      Model :   IMHS-87
 MFG: The Strong Scott Mfg. Co.
 Size (cubic feet): 87
