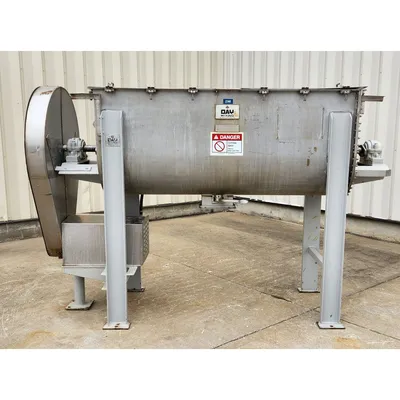

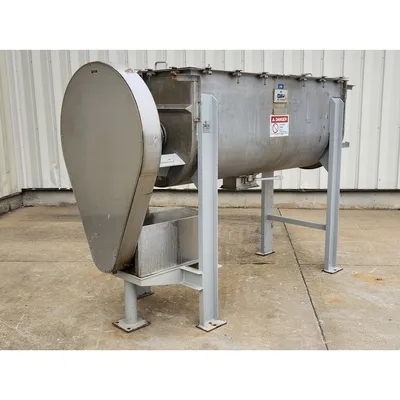

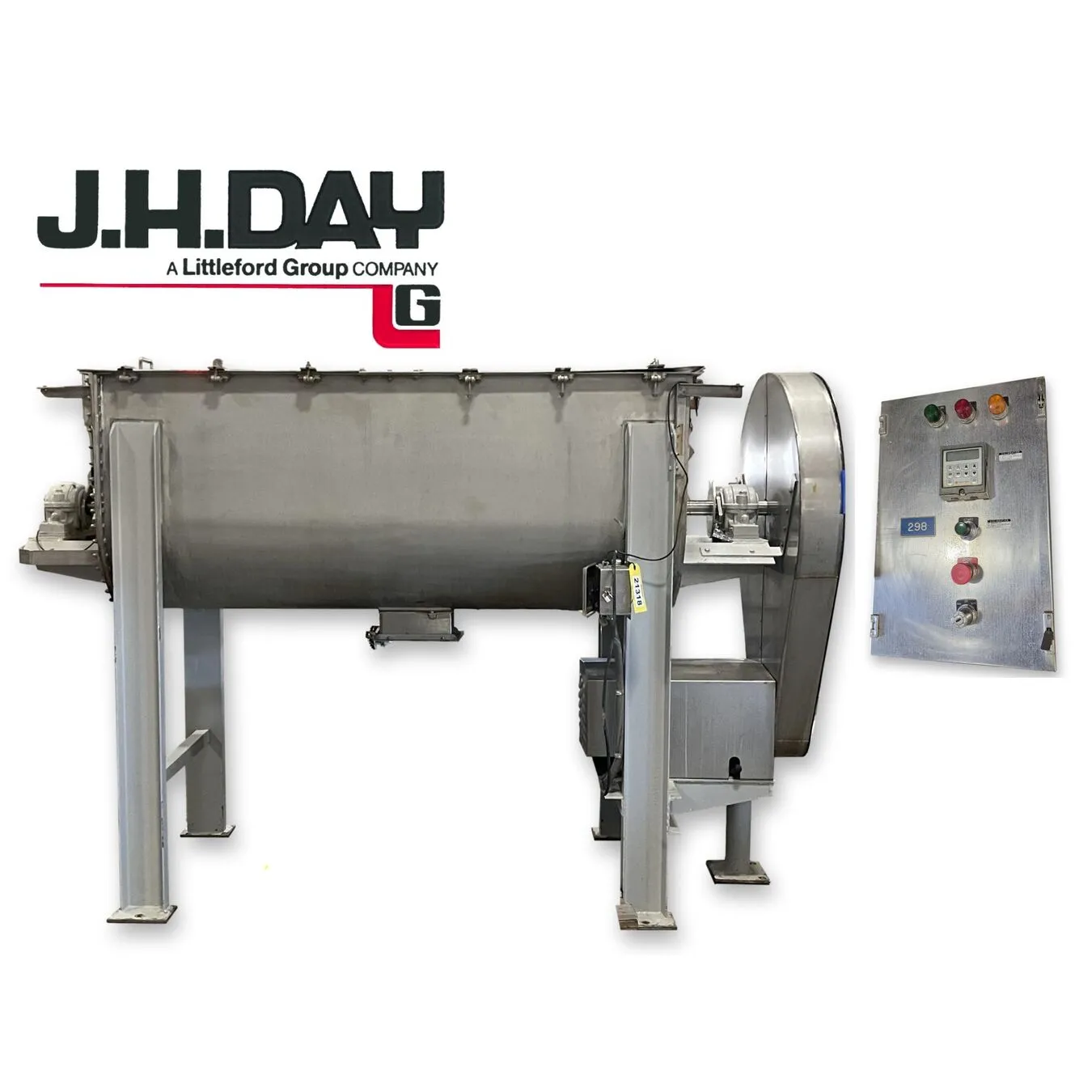

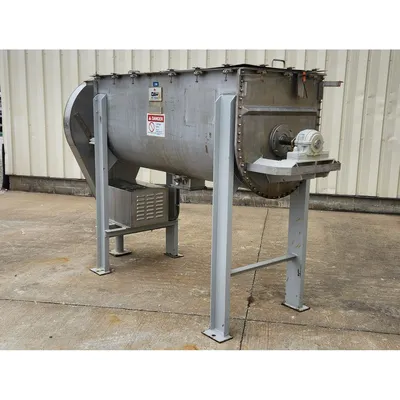

USED J. H. DAY COMPANY, INC. D-10

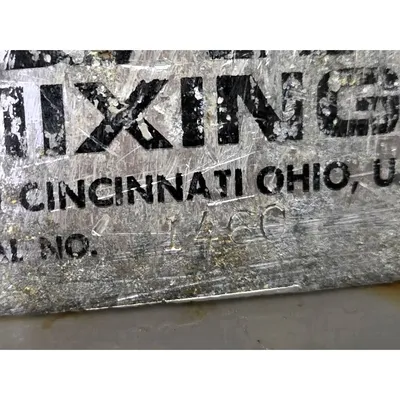

Serial No: 1460
304 stainless steel material contact surfaces.

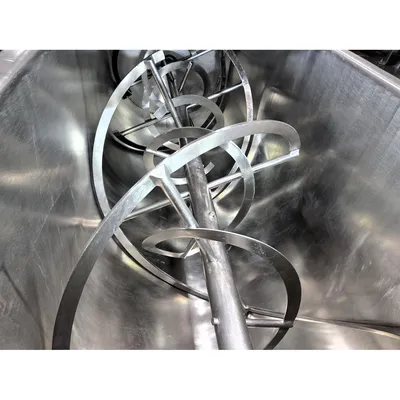

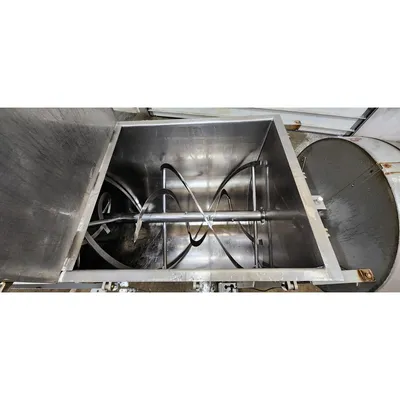

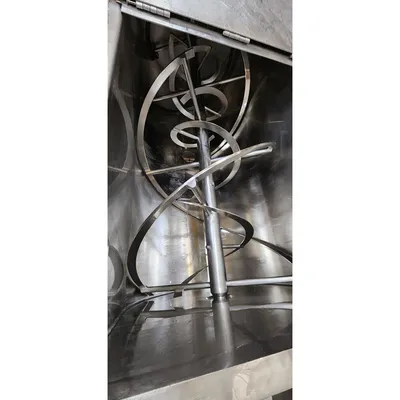

Mixing chamber dimensions: 30" W X 78" L X 33" D.
Blender shaft ends supported on pillow block bearings with stuffing box rotary seals.

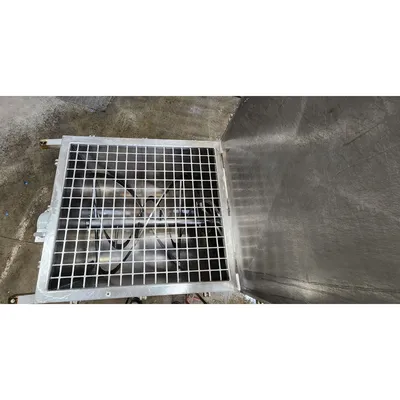

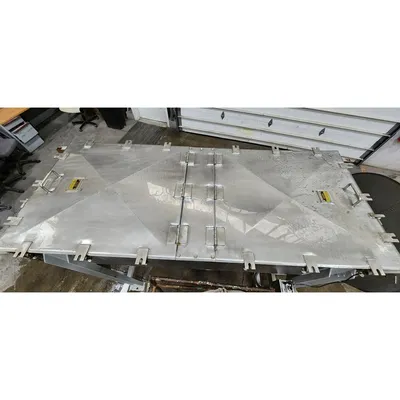

Hinged flat top cover with gasket and swivel-screw clamps.
Discharge: 4"Ø manual paddle valve with drop chute, bottom-centered

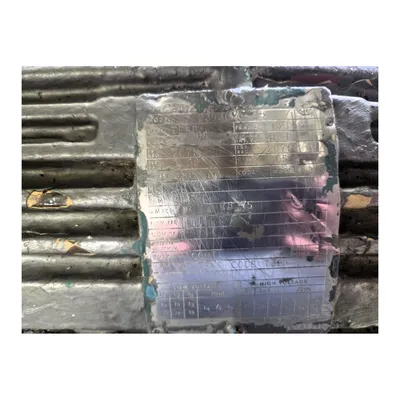

10HP gearmotor with chain drive, explosion proof (208V, 60Hz, 3ph AC).

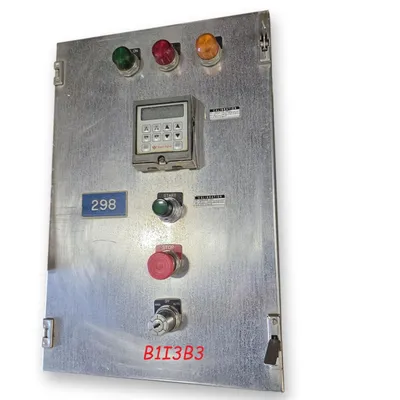

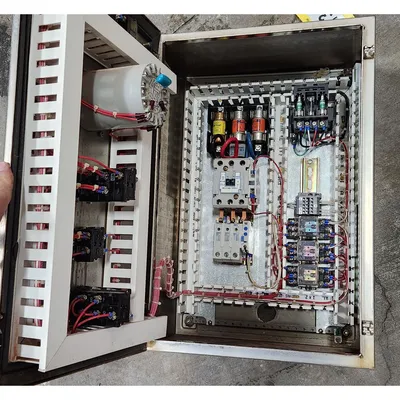

NEMA 4X enclosure with LCD cycle timer/counter, magnetic starter & controls.
Base mounting area: 33"W X 63"L.
Mixer Height: 69.75"
General Arrangement Drawing on file.

FOB: Millwood, WV 25262

Item: 21318      Model :   D-10
 MFG: J. H. Day Company, Inc.
 Size (cubic feet): 36
