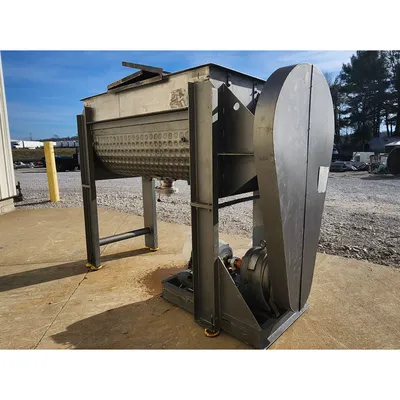

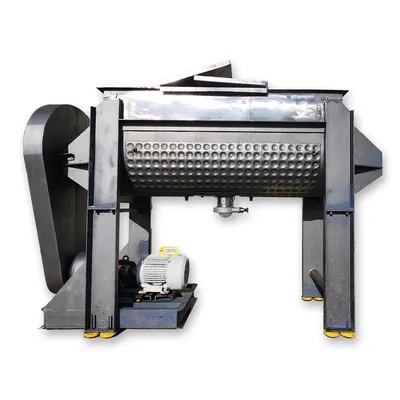

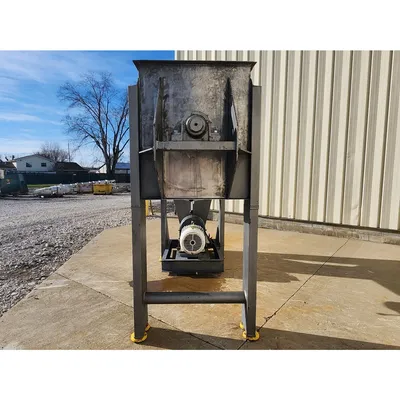

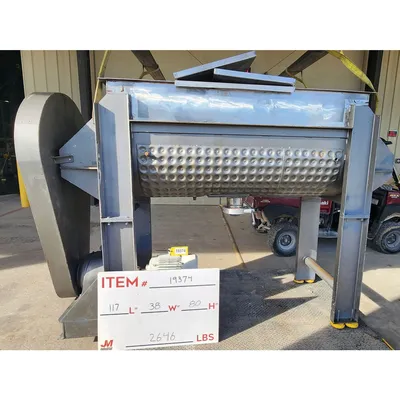

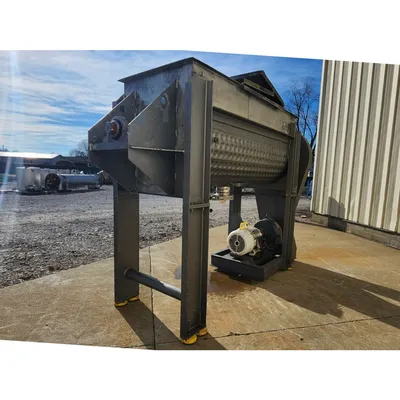

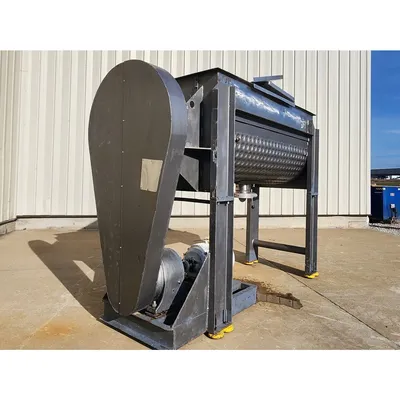

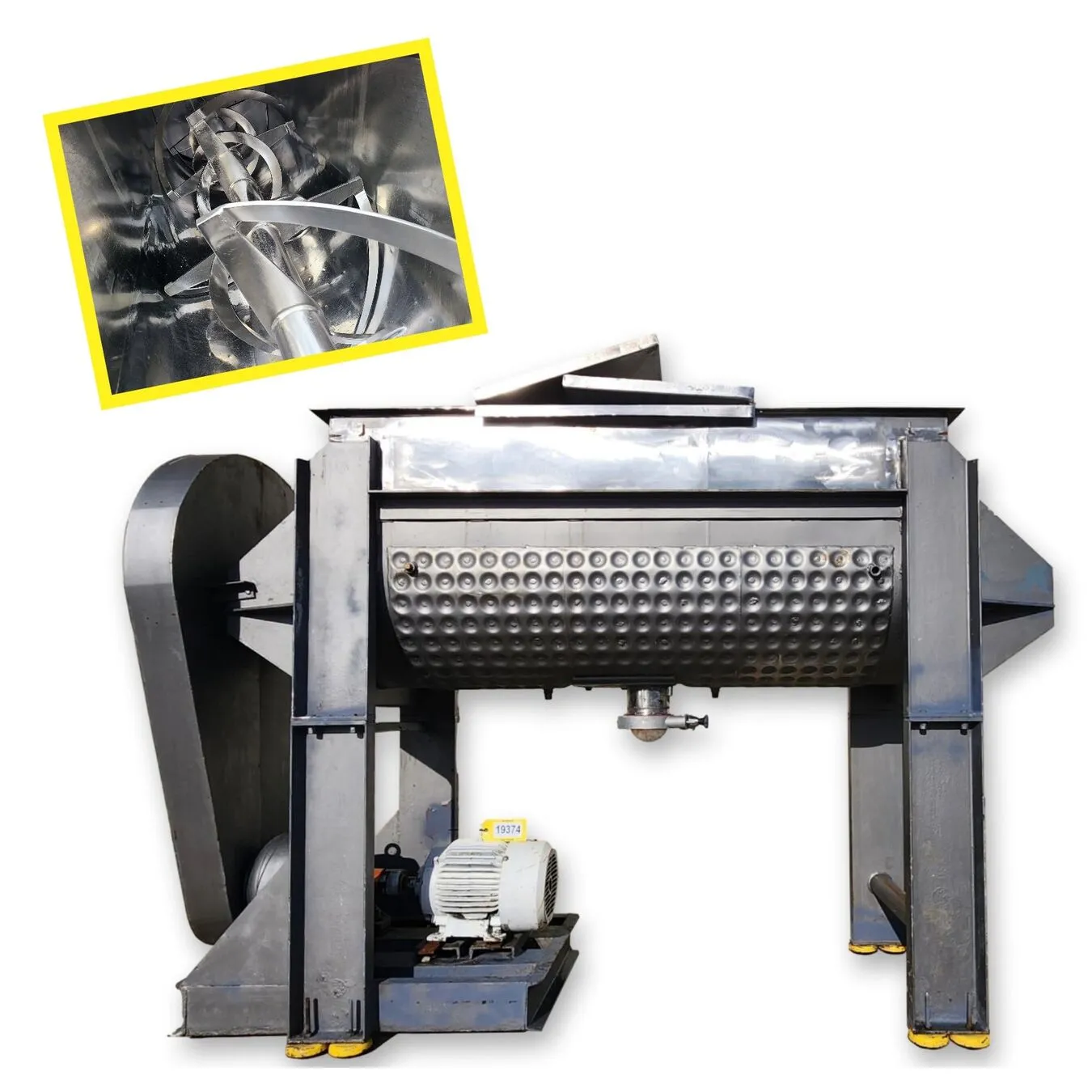

Used 35 Cu/Ft Stainless Steel Jacketed Double Ribbon Mixer

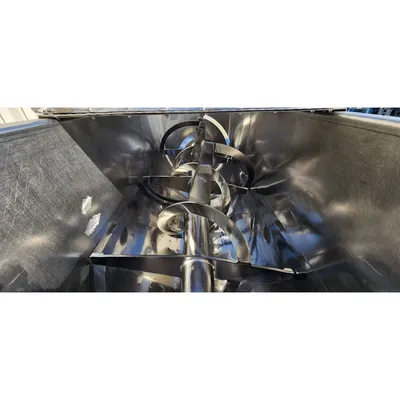

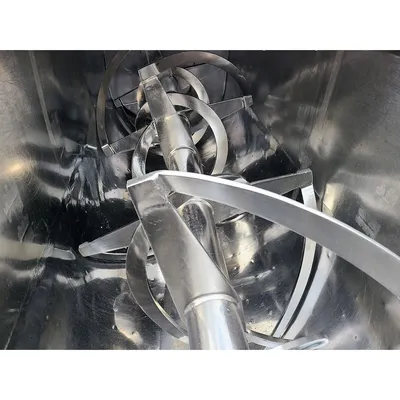

304 stainless steel mixing chamber
Mixer housing is 30"W X 78"L (wall: 0.128" thk.)

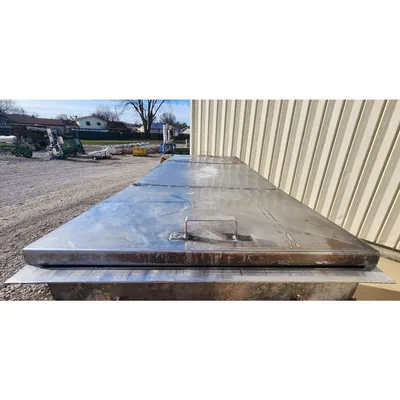

Full top cover with hinged panels on each end
Non-rated dimple-plated belly jacket with 3/4"NPT connections (approximately 21.9 sq. ft. surface area)

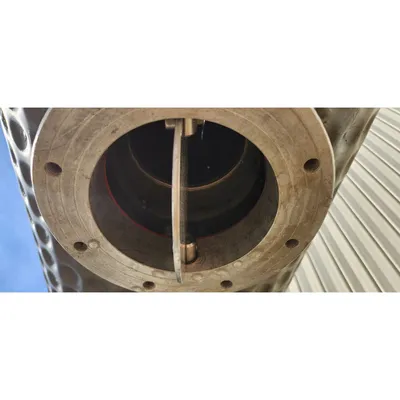

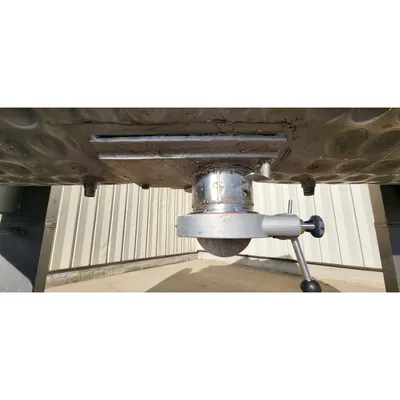

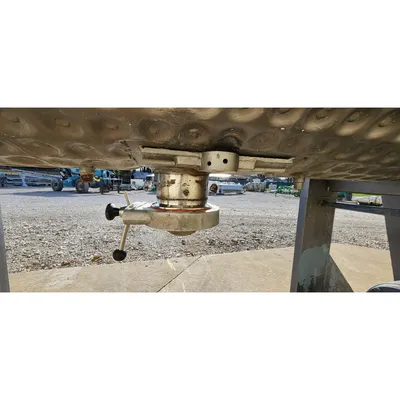

6"Ø flanged, manual butterfly valve discharge (bottom-center), 37" from floor elevation

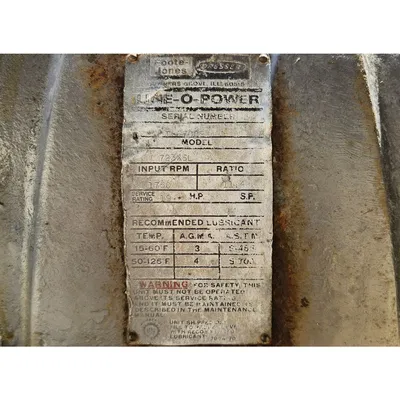

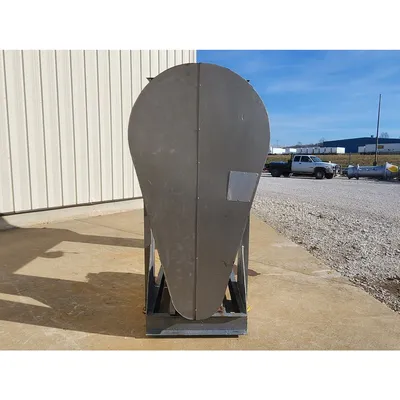

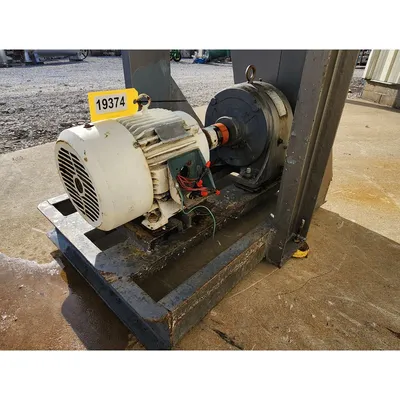

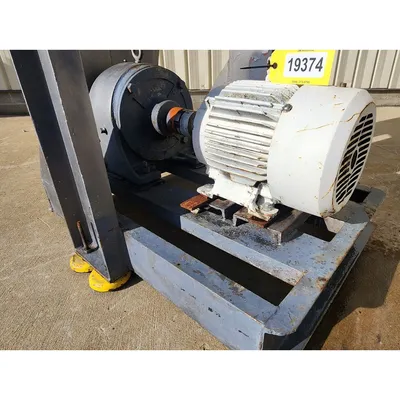

Driven by a 5HP gearmotor & chain reduction drive
Ribbon speed = 40 RPM. Demonstration video on file.
Base footprint: 36"W X 100"L
Floor elevation to top cover: 78"
Weight = 2,646 LBS.
Supply Power: 230/460V, 60Hz, 3ph AC

FOB: Millwood, WV 25262

Item: 19374
 Size (cubic feet): 35
