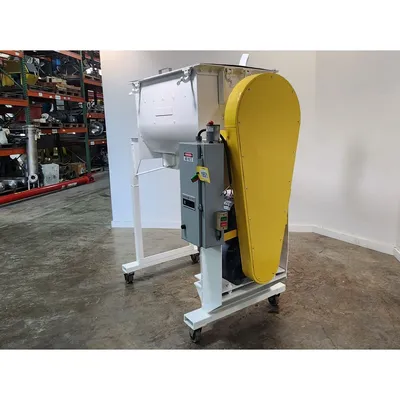

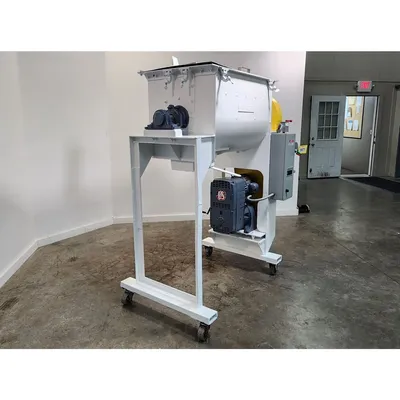

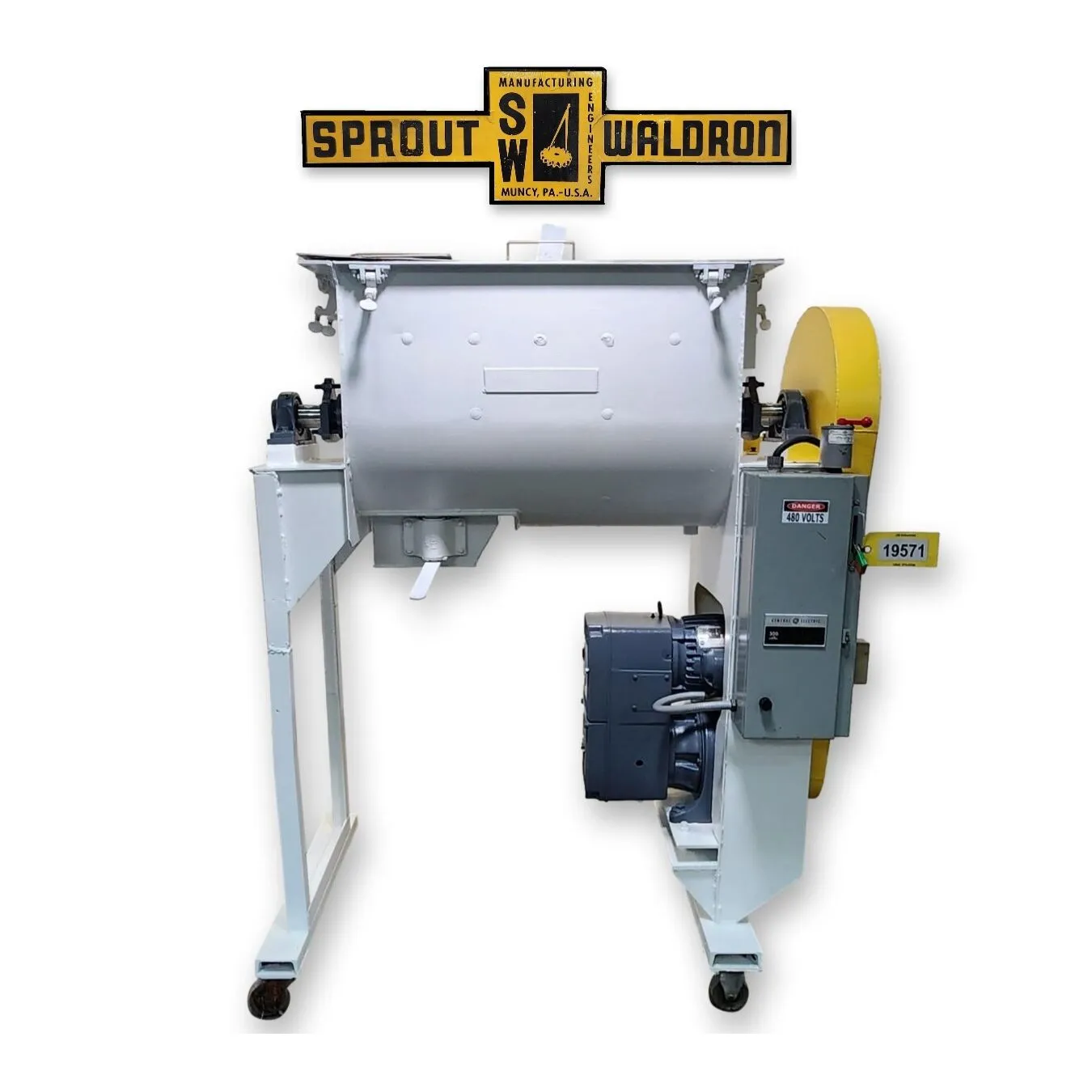

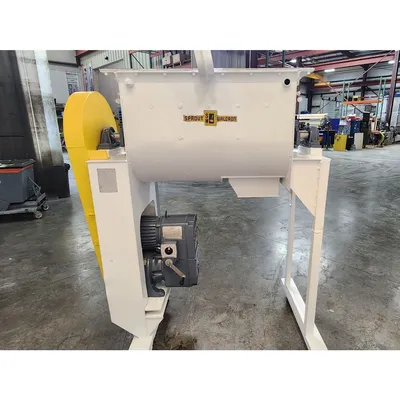

USED SPROUT BAUER B-6

304 stainless steel material in contact with product.

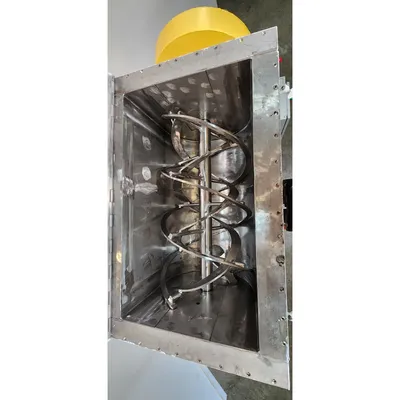

U-trough mixing chamber with perimeter flange is 21"W X 48"L
Jacketing installed on the u-trough area with 1"NPTF media connections (non-jacketed end plates)

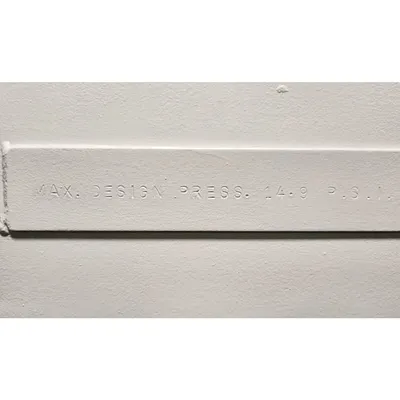

Jacket Rating: 14.9PSI max. (non-ASME)

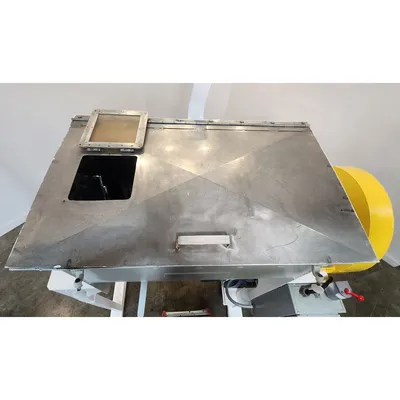

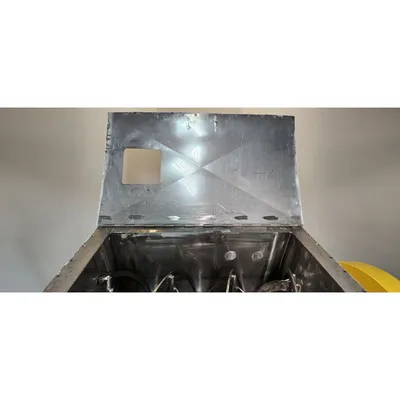

Hinged cover with 8" X 8" cut-out and hold-down levers

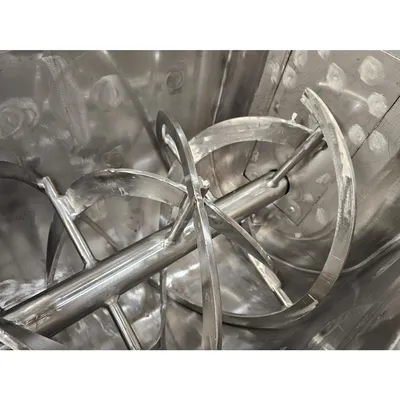

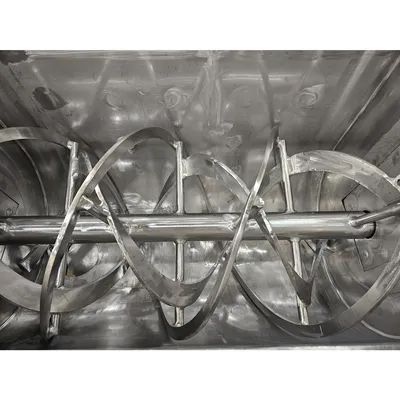

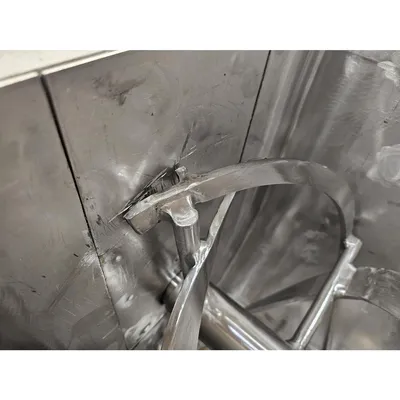

Bolted end plate slots for ribbon assembly removal/maintenance

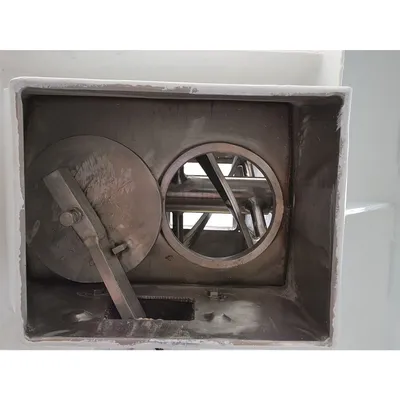

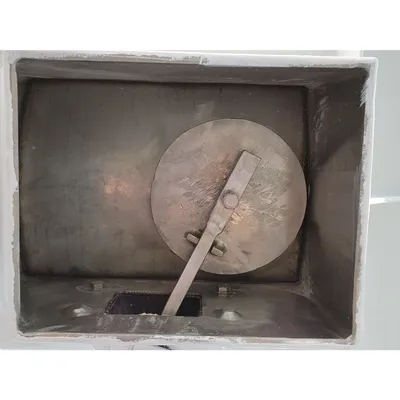

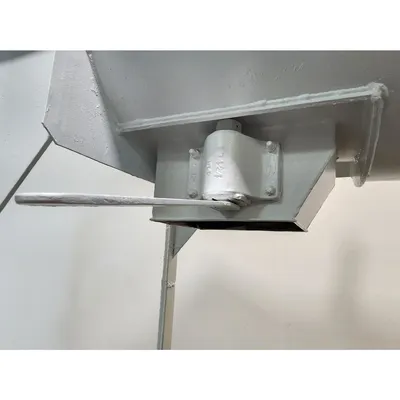

Product discharge: 5"Ø manual pivot-gate (metal-seated) with 9" X 10.5 skirt, 43" from floor elevation
Footprint of portable base: 34"W X 49"L
Elevation to top cover: 71.25"

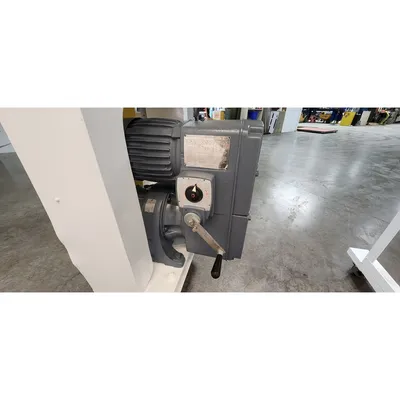

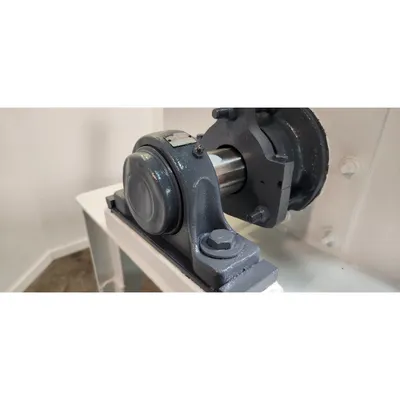

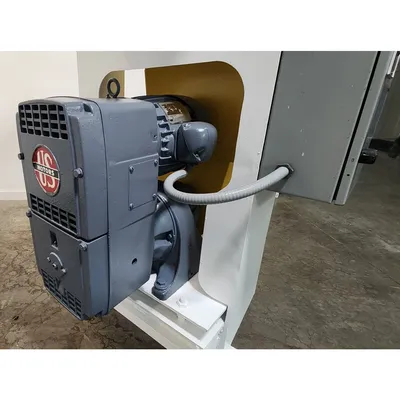

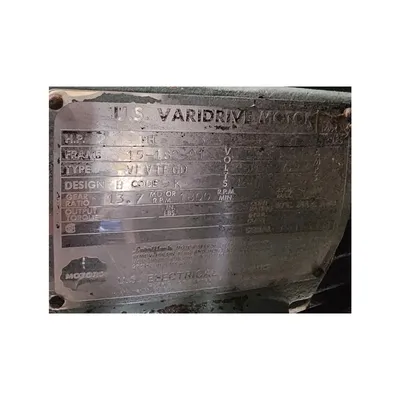

Drive: 2HP US Electrical Varidrive (double reduction) & chain reduction drive
Supply Power: 230/460V, 60Hz, 3ph AC

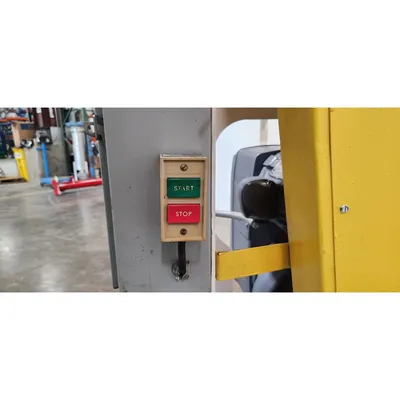

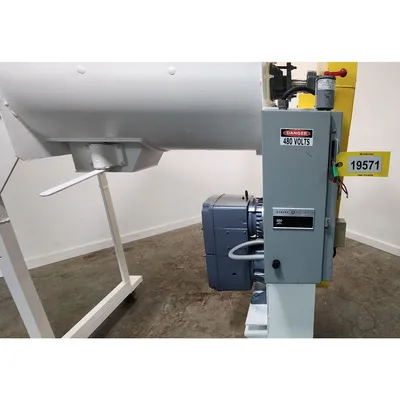

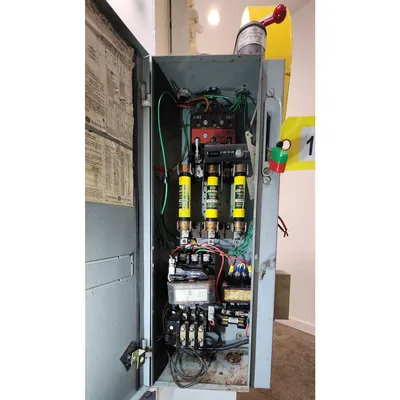

Controls: wired into a fused disconnect & starter with push button start/stop and reversing switch
Demonstration video on file. Ribbon speed = 27 RPM
Overall dimensions: 60" L x 42" W x 80" H.
Weight = 1,260 LBS.

FOB: Millwood, WV 25262

Item: 19571      Model :   B-6
 MFG: Sprout Bauer
 Size (cubic feet): 6
