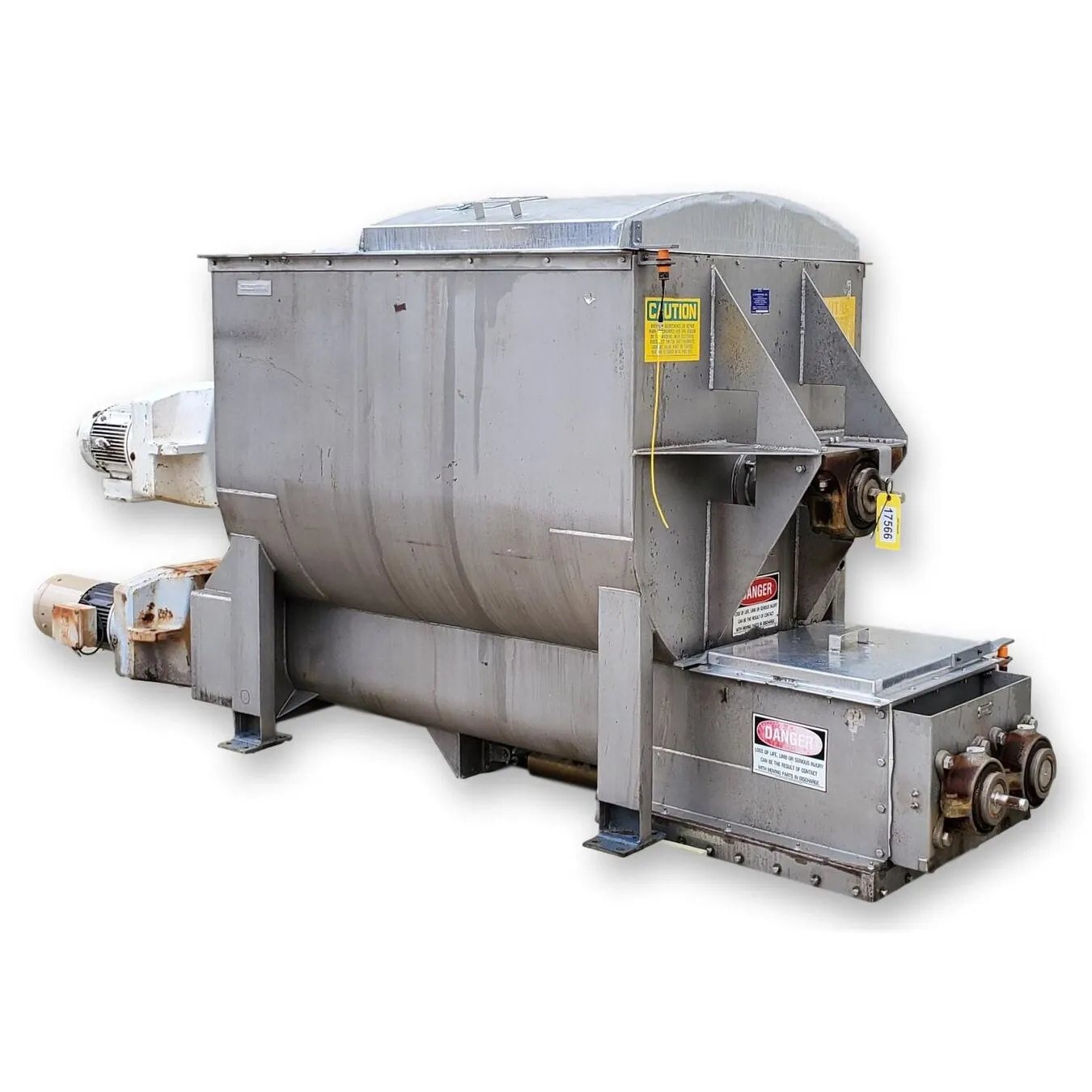

USED AMERICAN PROCESS SYSTEMS 3000HB

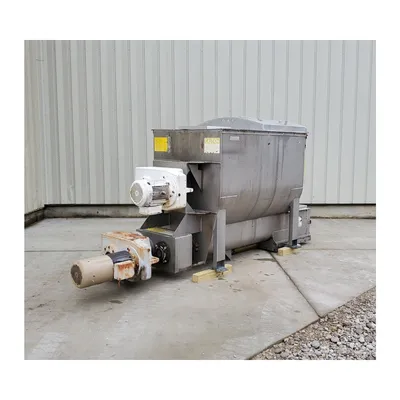

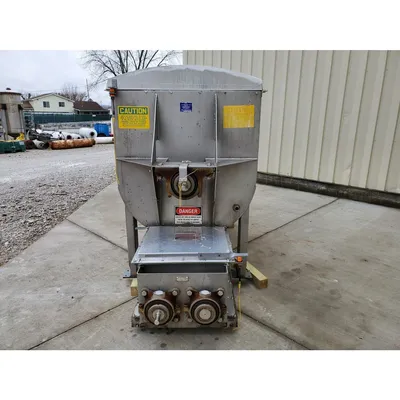

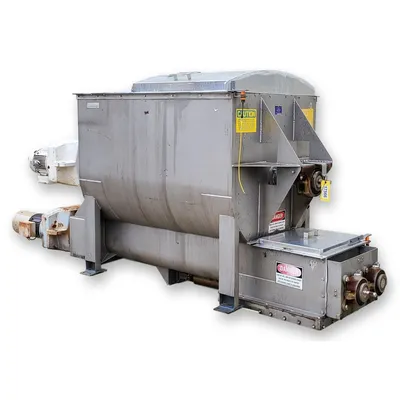

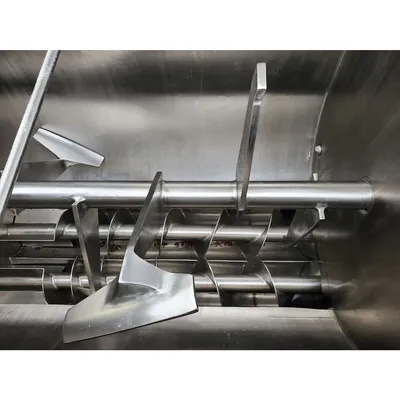

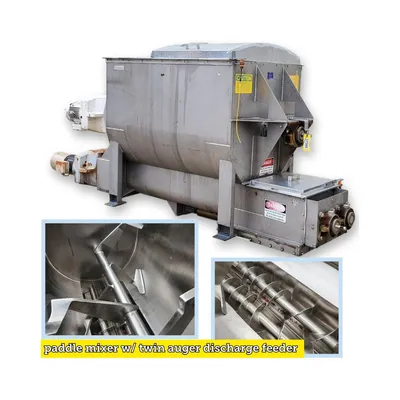

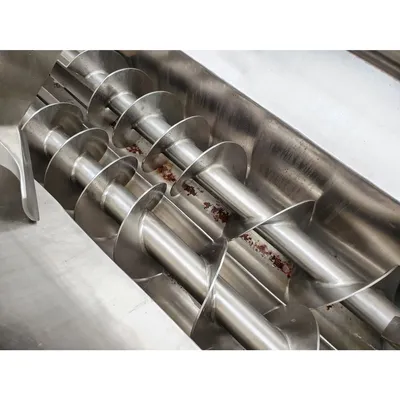

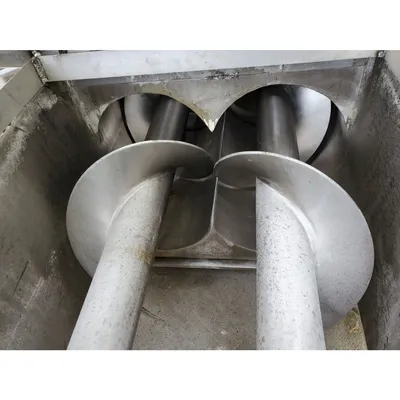

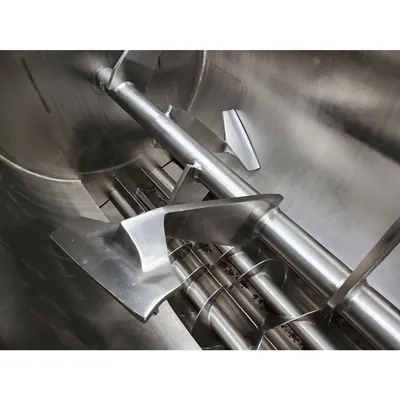

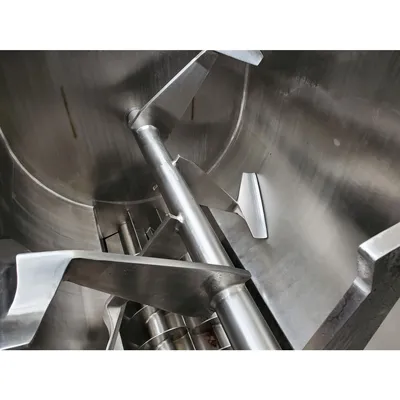

304 stainless steel construction. 7GA shell with end plates and gussets of 1/4" thick stainless steel. Legs are 3" x 6" rectangular tubing. Internal and external welds are continuous, ground smooth and polished. All product contact surfaces are polished to a sanitary finish. Exterior surfaces have a glass bead finish. Blender shaft: 4.25"Ø 304 stainless steel. Configuration of blender consists of 2/3 of length to have paddles and remaining 1/3 length to have breaker bars. Twin screw discharge arrangement. Screw shaft: 3.5" schedule 80 pipe, 304 stainless steel with 12" diameter variable pitch flighting. Pneumatic actuated slide gate valve installed on material outlet.

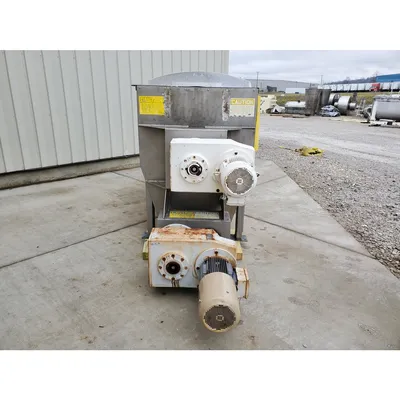

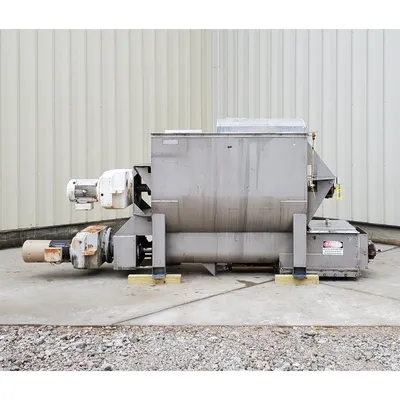

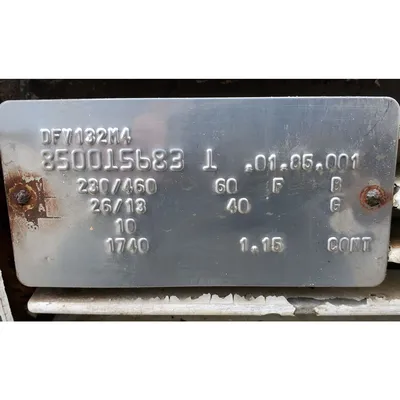

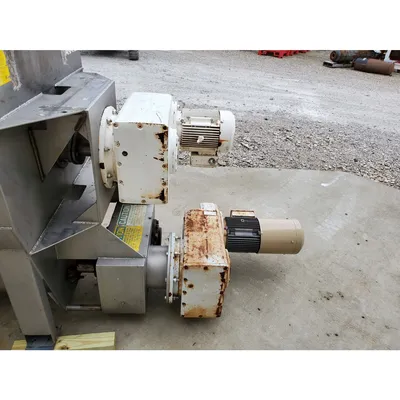

Drive and all non 304 stainless components are primed and painted. Blender drive is eurodrive motor: 1800 rpm, tefc, 10 hp. Eurodrive reducer: snuggler 139.92:1 ratio, 12 RPM output faf-90. Screw feeder discharge drive is eurodrive motor 1800 RPM tefc, 10 hp, 460/3/60 with external ventilator #dv132m4-v. Eurodrive reducer: snuggler, 107.89:1 ratio, #faf-100. Reference drawing american process dwg # 2991 Weight is 7016 pounds approx. Overall dimensions: 4' W x 13'-6" L x 5'-6" h

FOB: Millwood, WV 25262

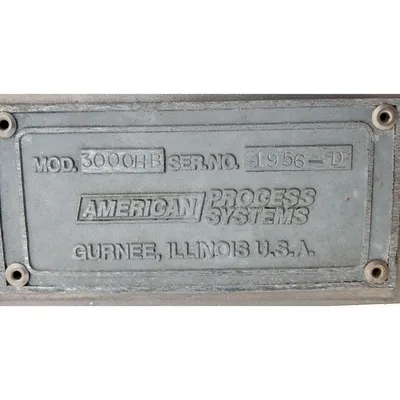

Item: 17566      Model :   3000HB
 MFG: American Process Systems
 Size (cubic feet): 75
