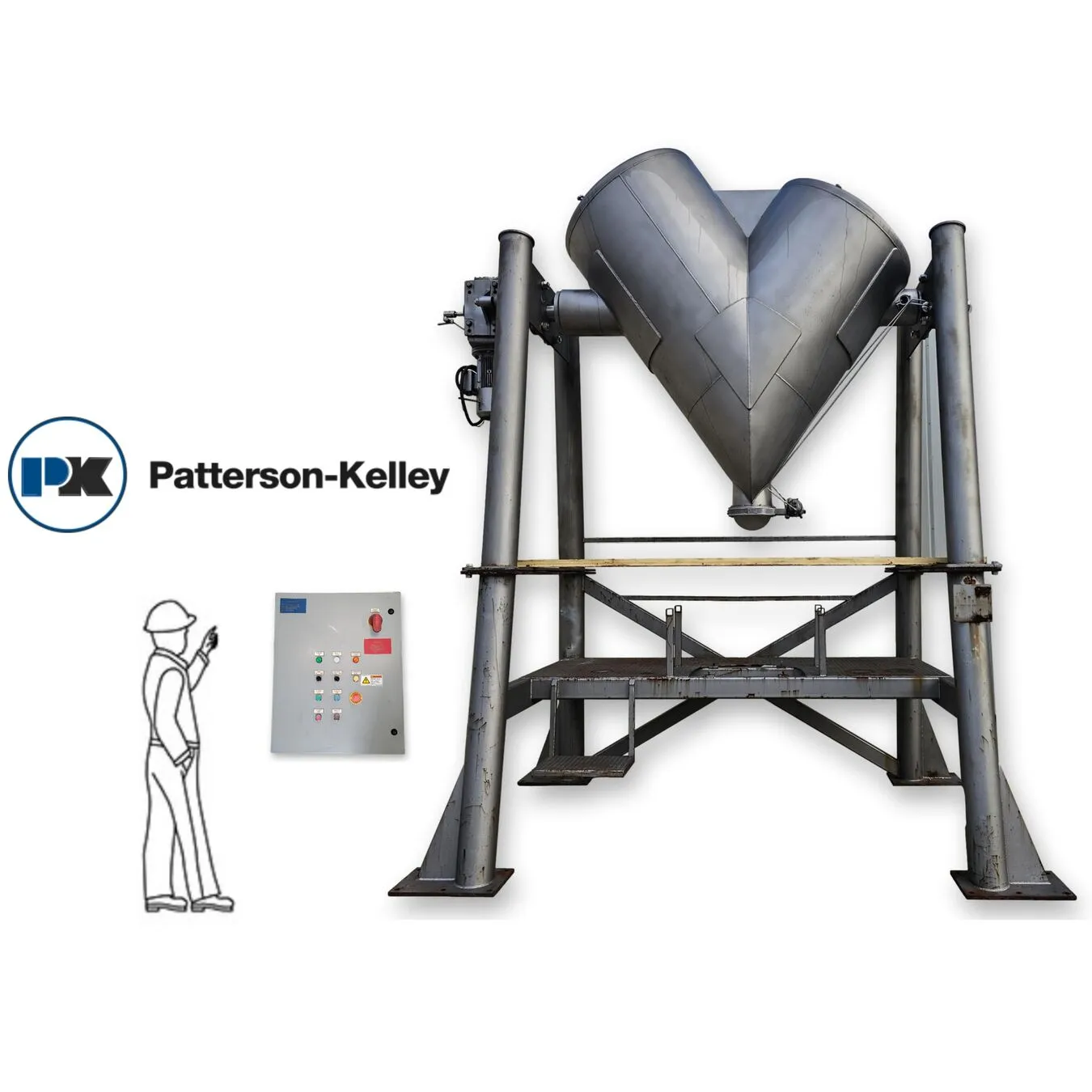

Used Patterson-Kelley 75 Cu Ft Stainless Steel Cross Flow V-Blender Twin Shell
Overview
Description

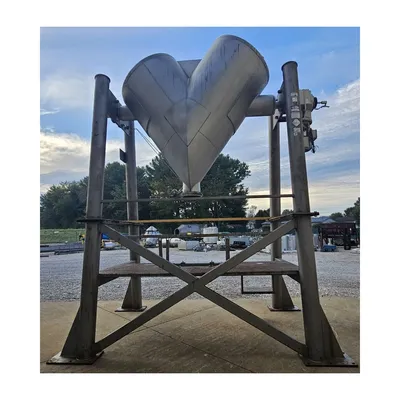

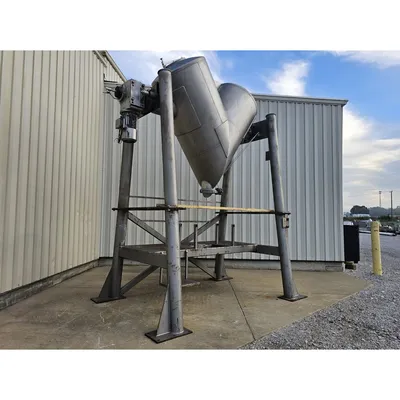

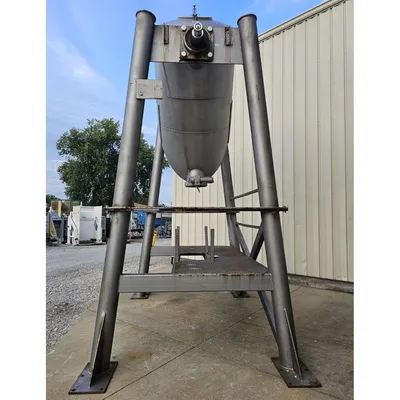

Asymmetrical V-shell / V-cone gravity blender constructed of 316 stainless steel material contact
(single wall, bead-blast exterior finish).
Working Capacity: 75 Cubic feet with max. product density of 62LBS/FT³
Two- 18"Ø hinged & gasketed inspection hatches.

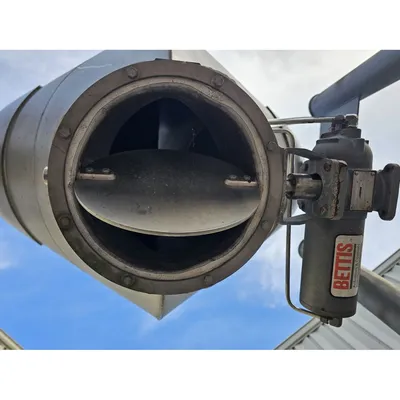

Product is filled/discharges thru a 12"Ø butterfly valve with a double-acting pneumatic actuator.
The swing radius for the blender is approximately 69" from shaft center axis.
INCLUDES:

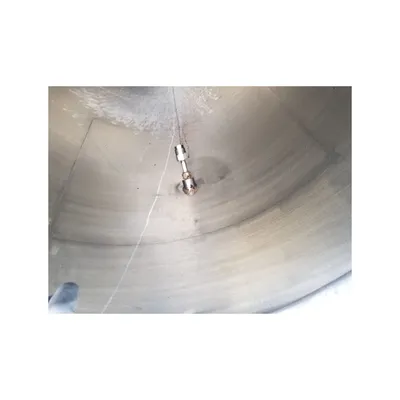

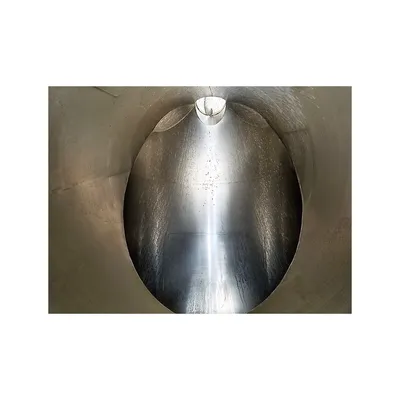

Internal spray nozzle with shaft-mounted rotary joint

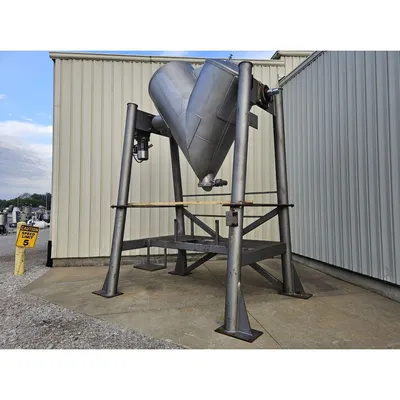

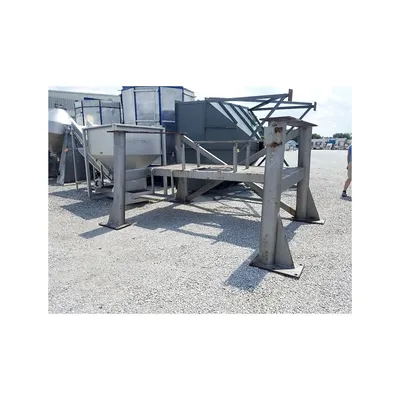

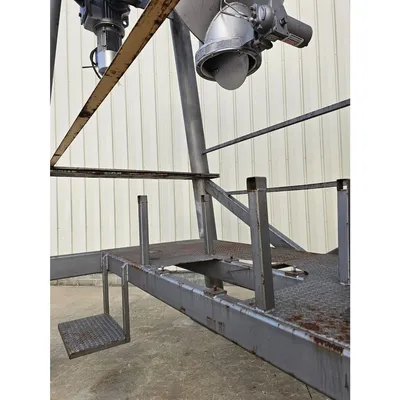

73" tall elevation extension with platform and discharge drop-thru
The clearance below the outlet when assembled will be 90".

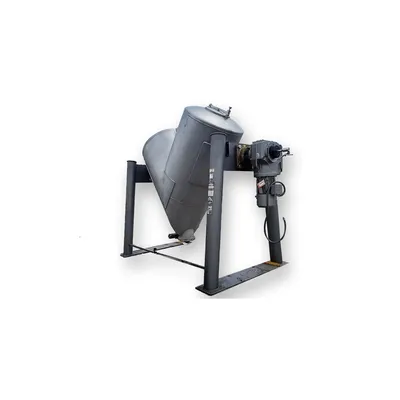

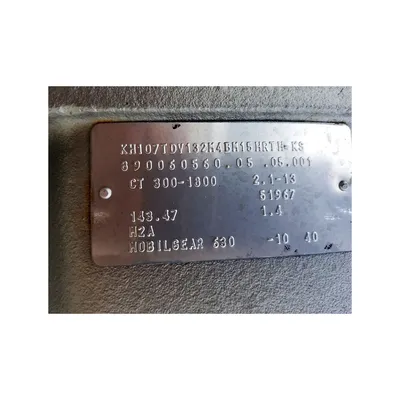

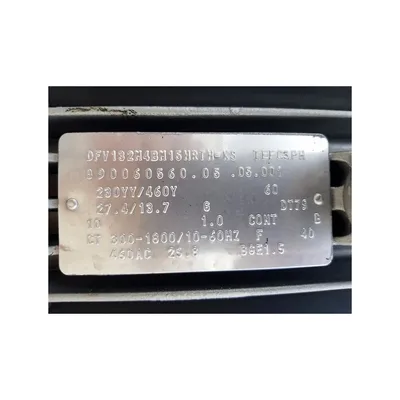

Powered by a 10HP shaft-mounted gearmotor with torque arm and electric brake

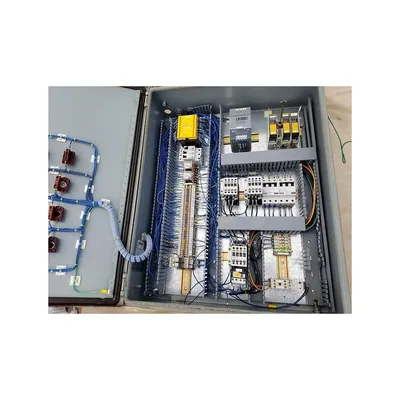

NEMA 1, 4, 12, 13 blender control enclosure
Footprint of the base is 8'-6" X 12'-9"
Ceiling Clearance Height: 18'-7" minimum
SUPPLY:
Power: 230/460V, 60Hz, 3ph AC
Compressed Air: 120PSI max.
FOB: Millwood, WV 25262
Specifications
Item: 18455

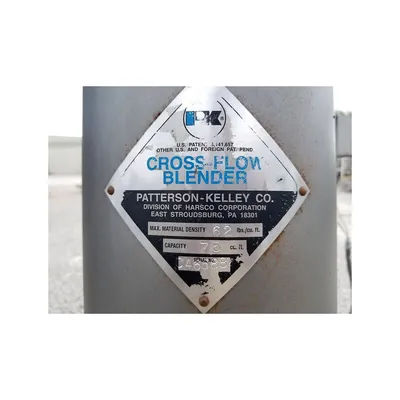

MFG: Patterson-Kelley
Size (cubic feet): 75
