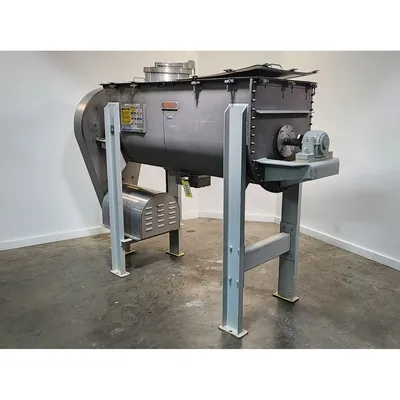

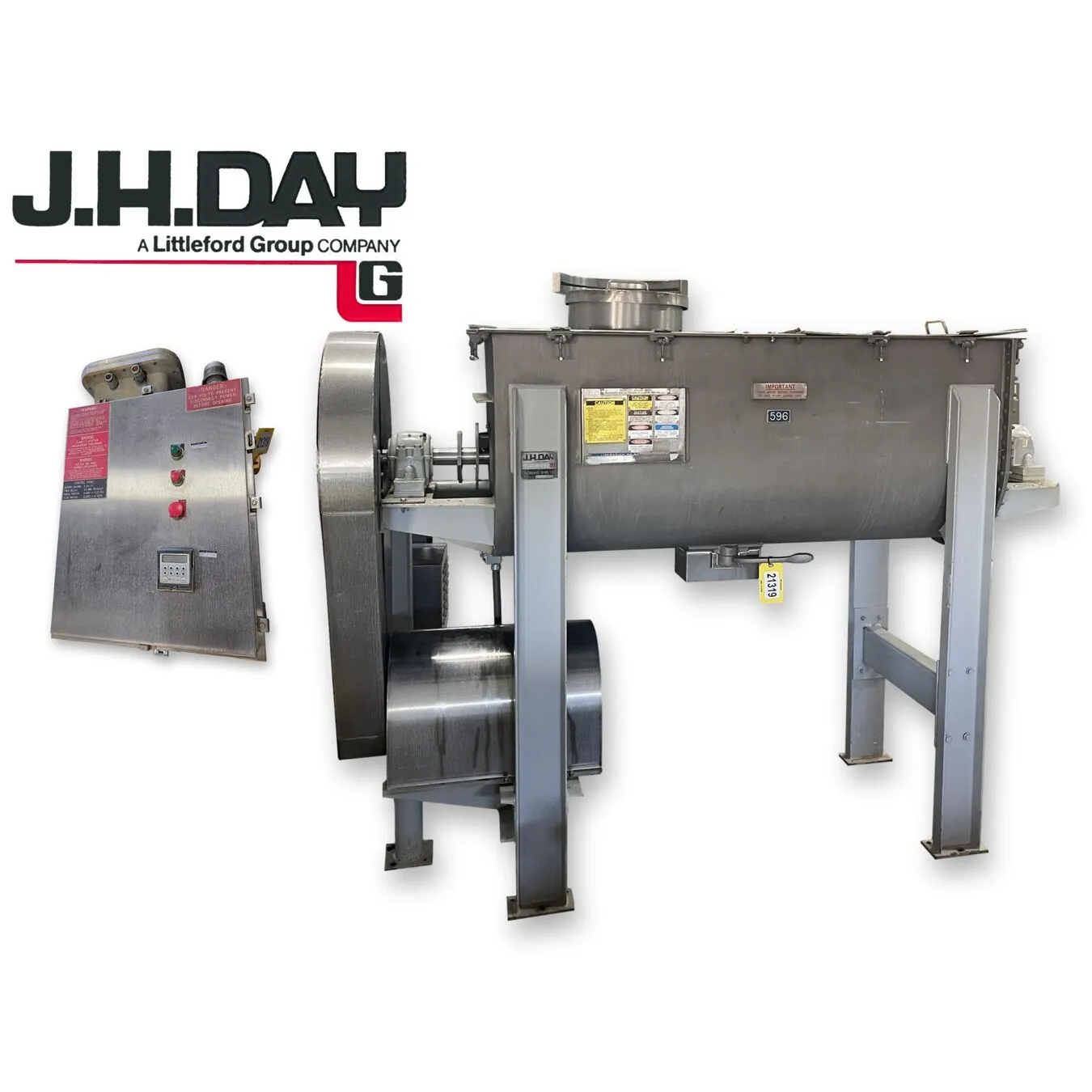

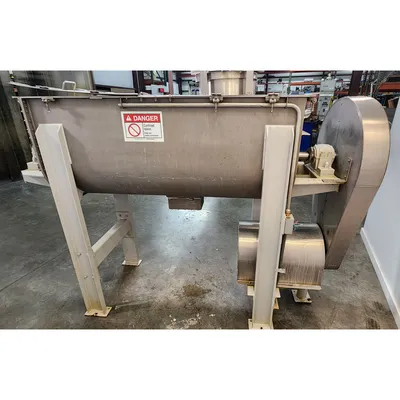

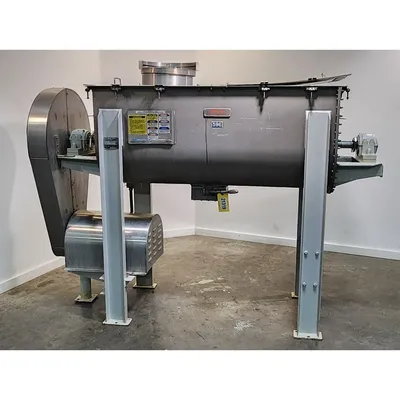

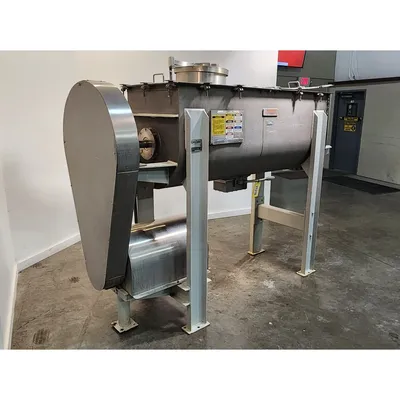

USED J H DAY D-8

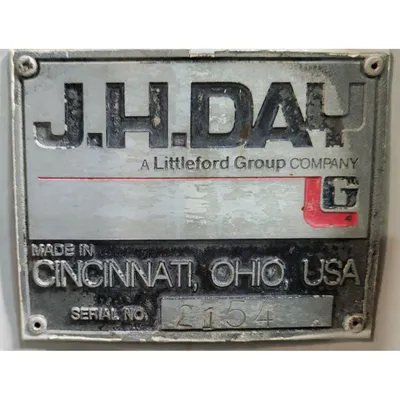

Serial No: 2154
304 stainless steel material contact surfaces (100 R.M.S. finish)

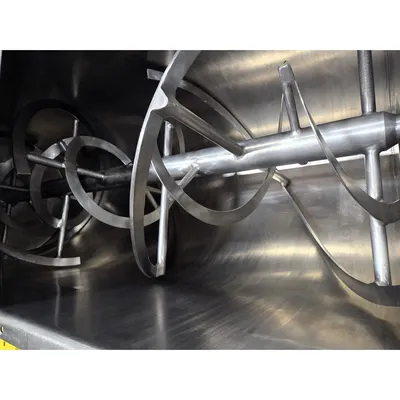

Mixing chamber dimensions: 26" W X 66" L X 28.5" D.

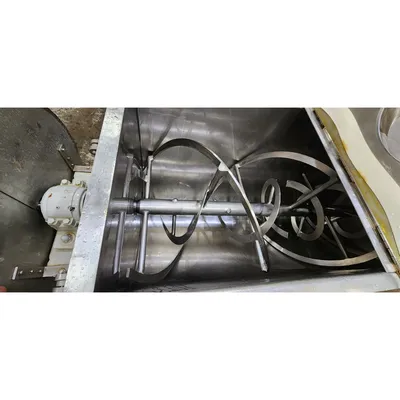

Blender shaft ends supported on pillow block bearings with packing gland rotary seals.

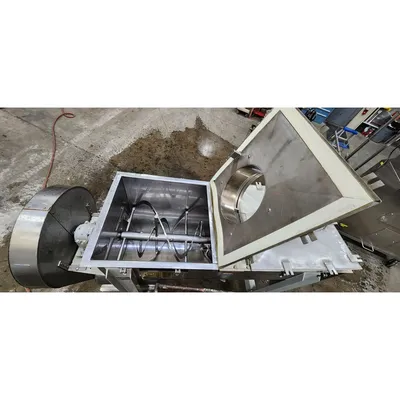

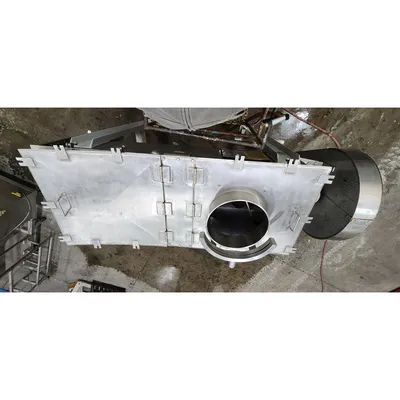

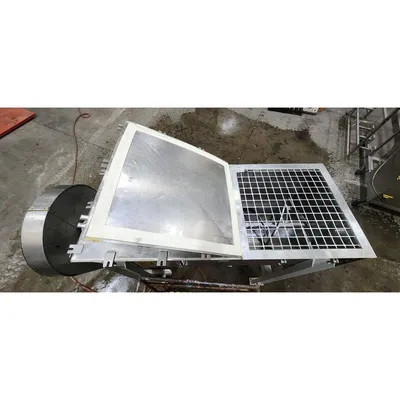

Hinged flat top cover with gasket and swivel-screw clamps.
Product Inlet: 13"Ø lip-ring sleeve with cover
Discharge: 4"Ø manual paddle valve, bottom-centered, 36.5" discharge height
10HP gearmotor with chain drive, explosion proof (200V, 60Hz, 3ph AC).
Base mounting area: 33"W X 63"L.
Height to blender top: 69.75"

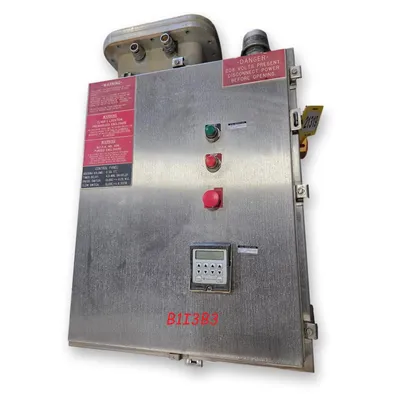

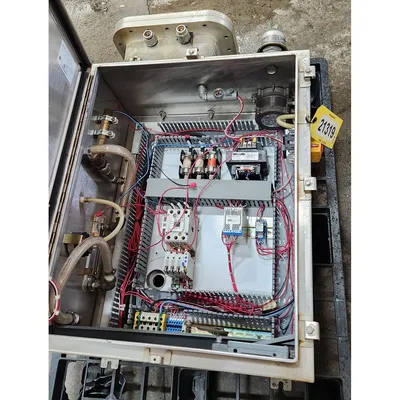

Includes NEMA 4, 4X, 12 air-purged enclosure with timer/counter, magnetic starter, transformer.
General Arrangement Drawing on file.
Weight = 2,002 LBS.

FOB: Millwood, WV 25262

Item: 21319      Model :   D-8
 MFG: J H Day
 Size (cubic feet): 28
