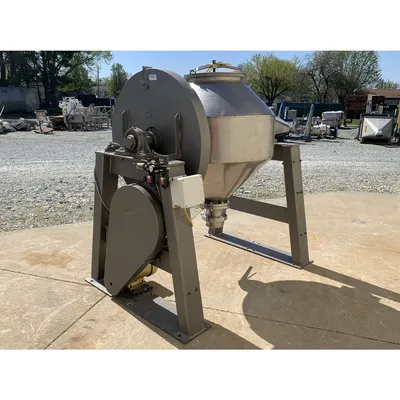

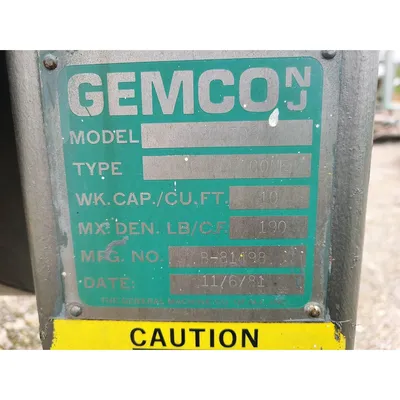

Mfg. No: B-81498
All 304 stainless steel material in contact with product
10 cubic foot working capacity (190 LB/CF max. product density)

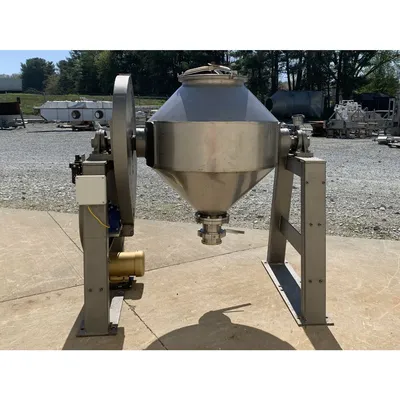

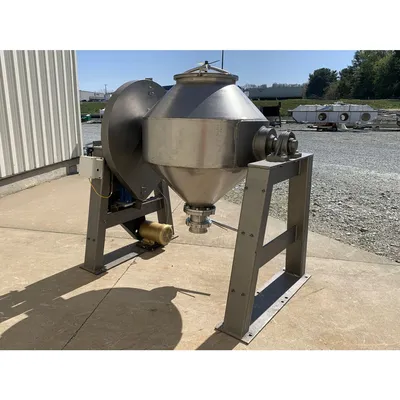

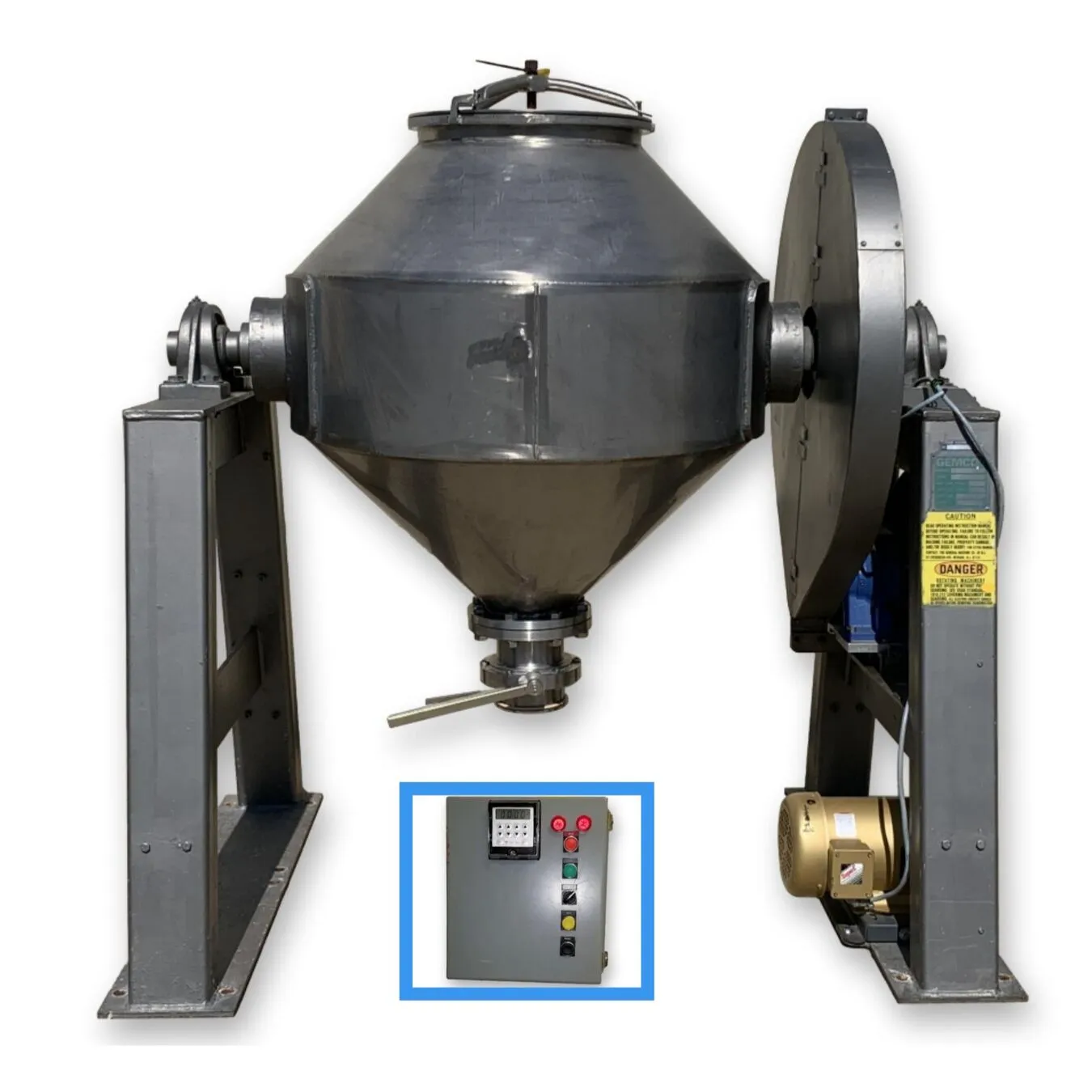

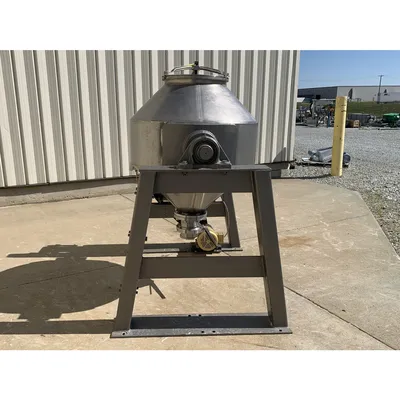

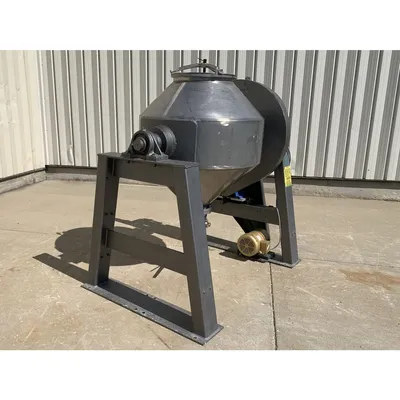

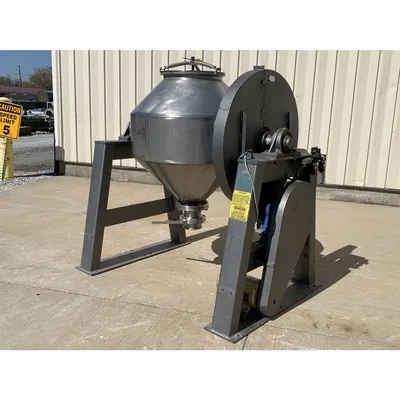

39" diameter cylinder with 13" straight side and 45° cones
Blender Wall Thickness: 0.103"

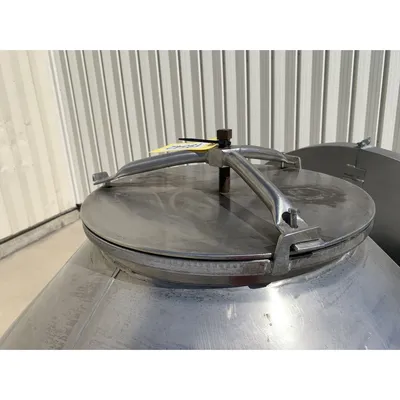

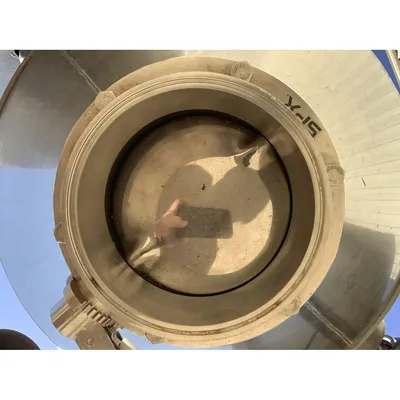

Product Inlet Cone: Ø20" with locking hatch & gasket

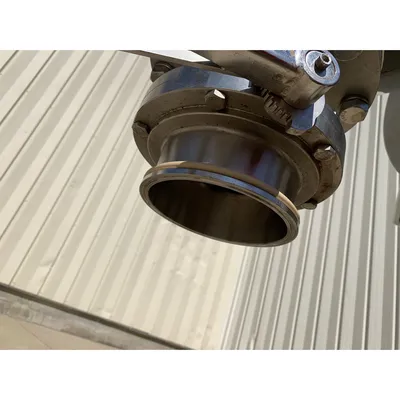

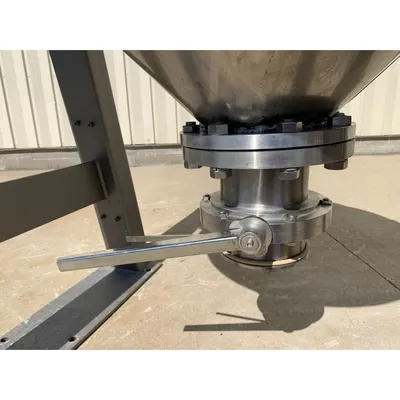

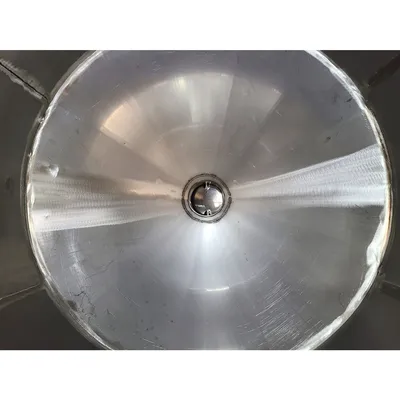

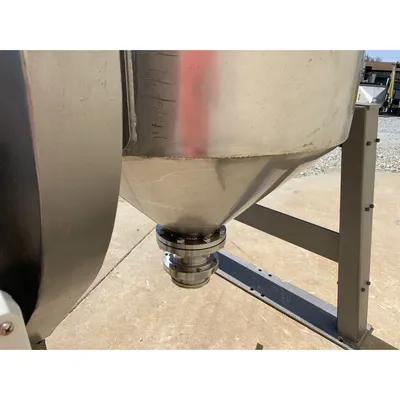

Product Discharge Cone: 6"Ø flange with sanitary butterfly valve
Swing Radius: 32" max. (from shaft center)
Clearance Height: 80" from base
Base Footprint: 48" X 64"

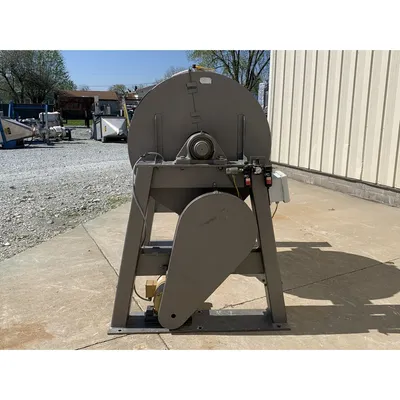

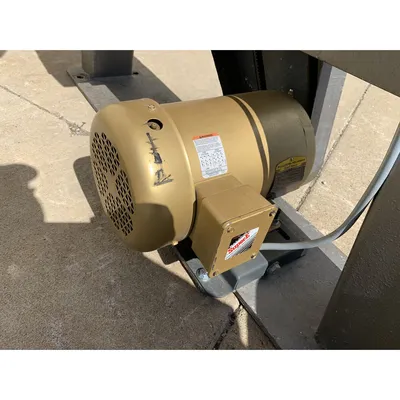

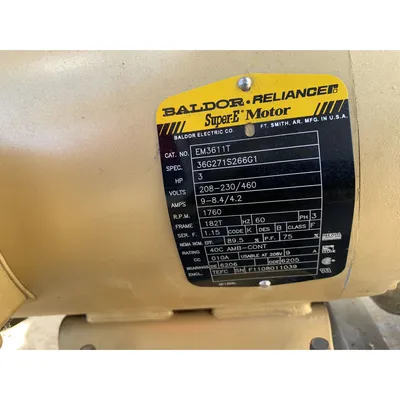

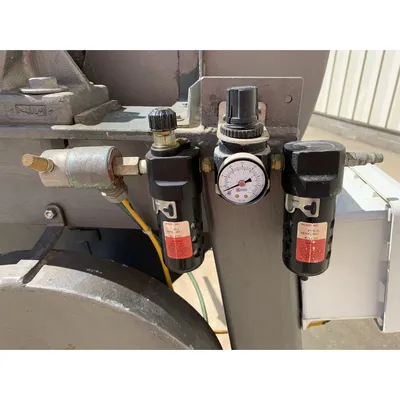

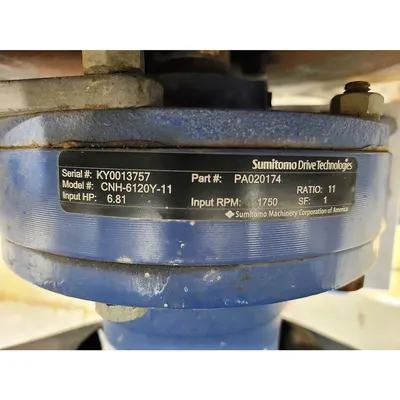

3HP V-belt and gear reduction drive with pneumatic disc brake
Electrical Service: 208-230/460V, 60Hz, 3ph
No Controls Available
FOB: Millwood, WV 25262

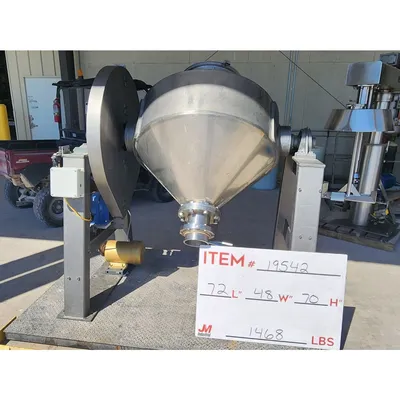

Item: 19542 Model : SOLIDS
MFG: GEMCO
Size (cubic feet): 10
