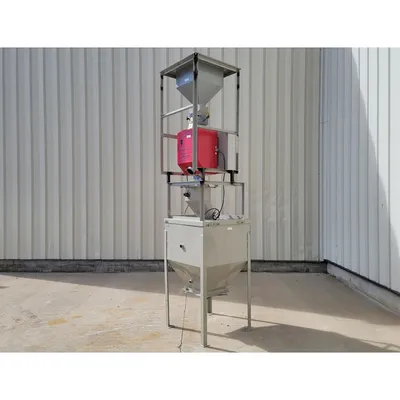

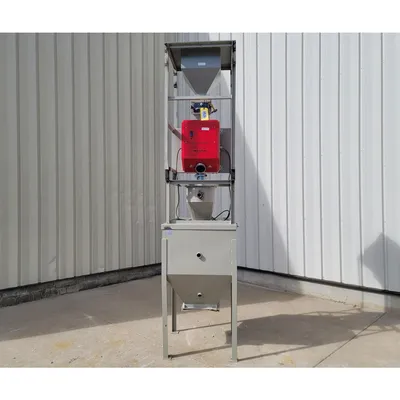

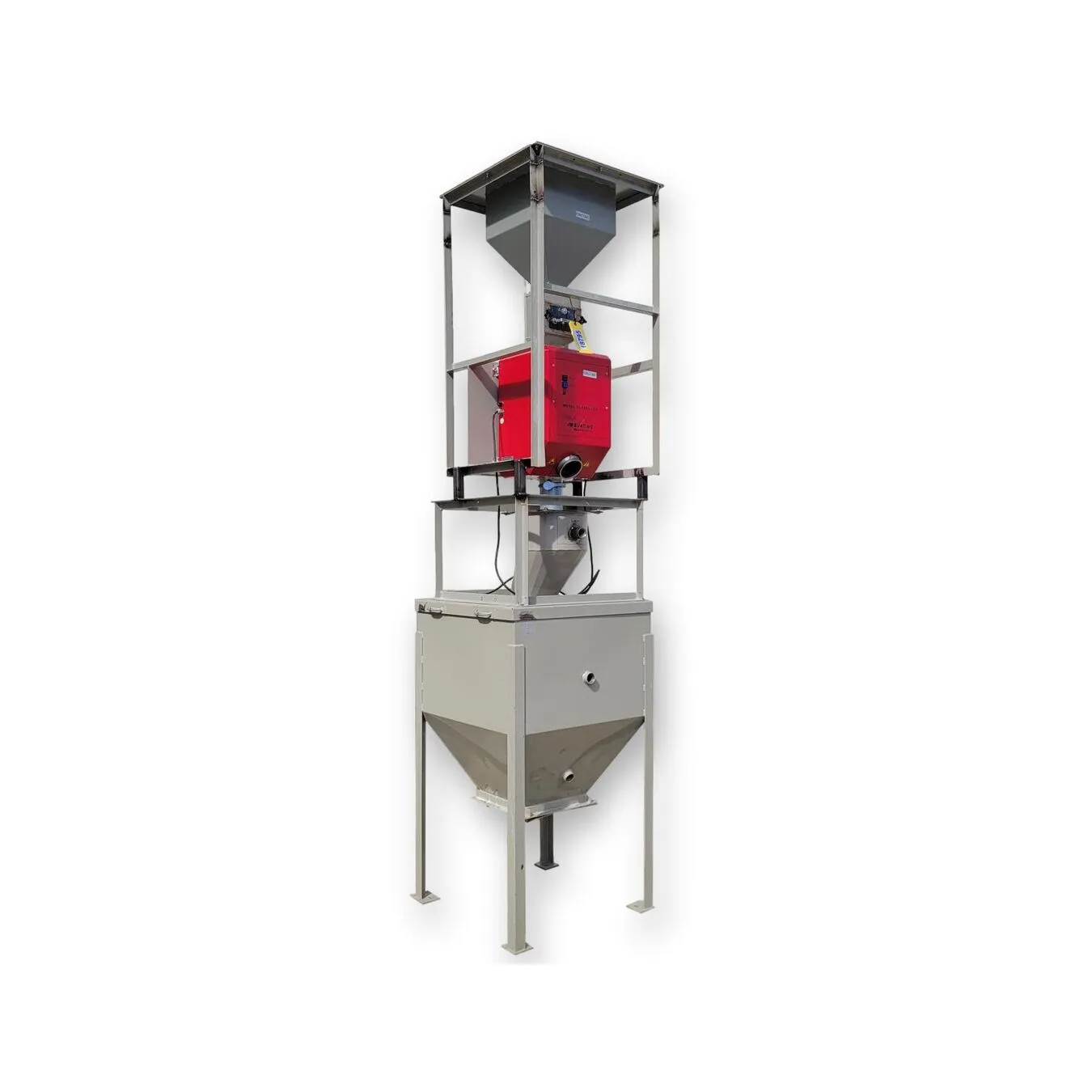

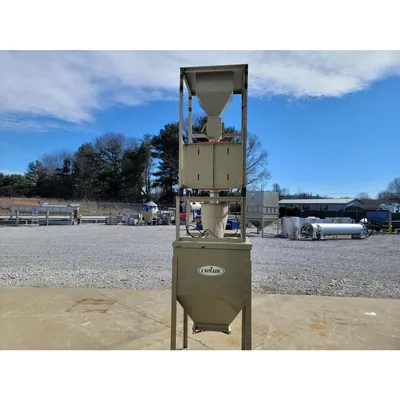

USED BUNTING MAGNETICS QN 3.4R 100

Automatic detects and rejects metallic contaminants from free-falling bulk materials
• Three- 1"Ø X 6" long staggered bar magnets

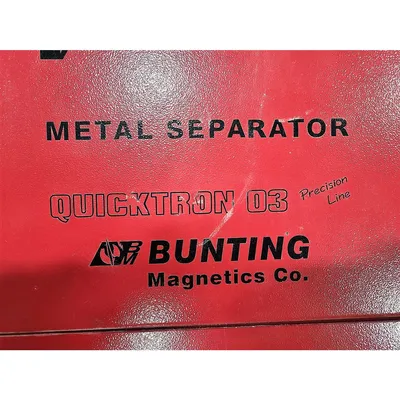

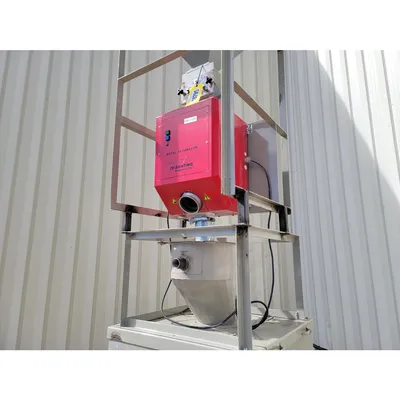

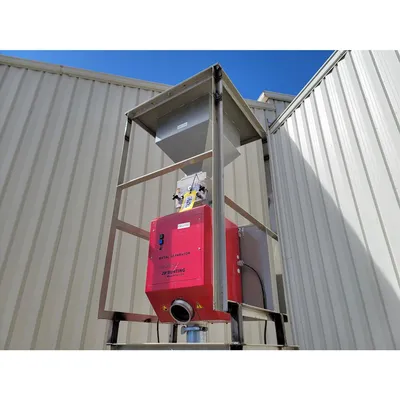

• 3"Ø Quicktron metal separator (IP54 rated)
Detection: triple coil
Controller: AMD 03 with adjustable sensitivity
Product Inlet/Outlet: 3.87" I.D. sleeve with quick clamp
Bulk Material Size: 0.39" (10mm)
Max. Operating Temperature: 154°F
Max. Product temperature: 176°F
Reject: air operated with stainless steel flap
Free-standing frame assembly with 12 cubic foot holding bin
Supply: 110/240V, 50/60Hz, 1 phase and min. 70PSI compressed air
Overall Height: 126"
Overall dimensions ; 32" x 32" x 126" H.
Weight = 503 lbs.

FOB: Millwood, WV 25262

Item: 18795      Model :   QN 3.4R 100
 MFG: Bunting Magnetics
