NEW BUNTING MAGNETICS CO. 3.5 R 50
Overview
Description

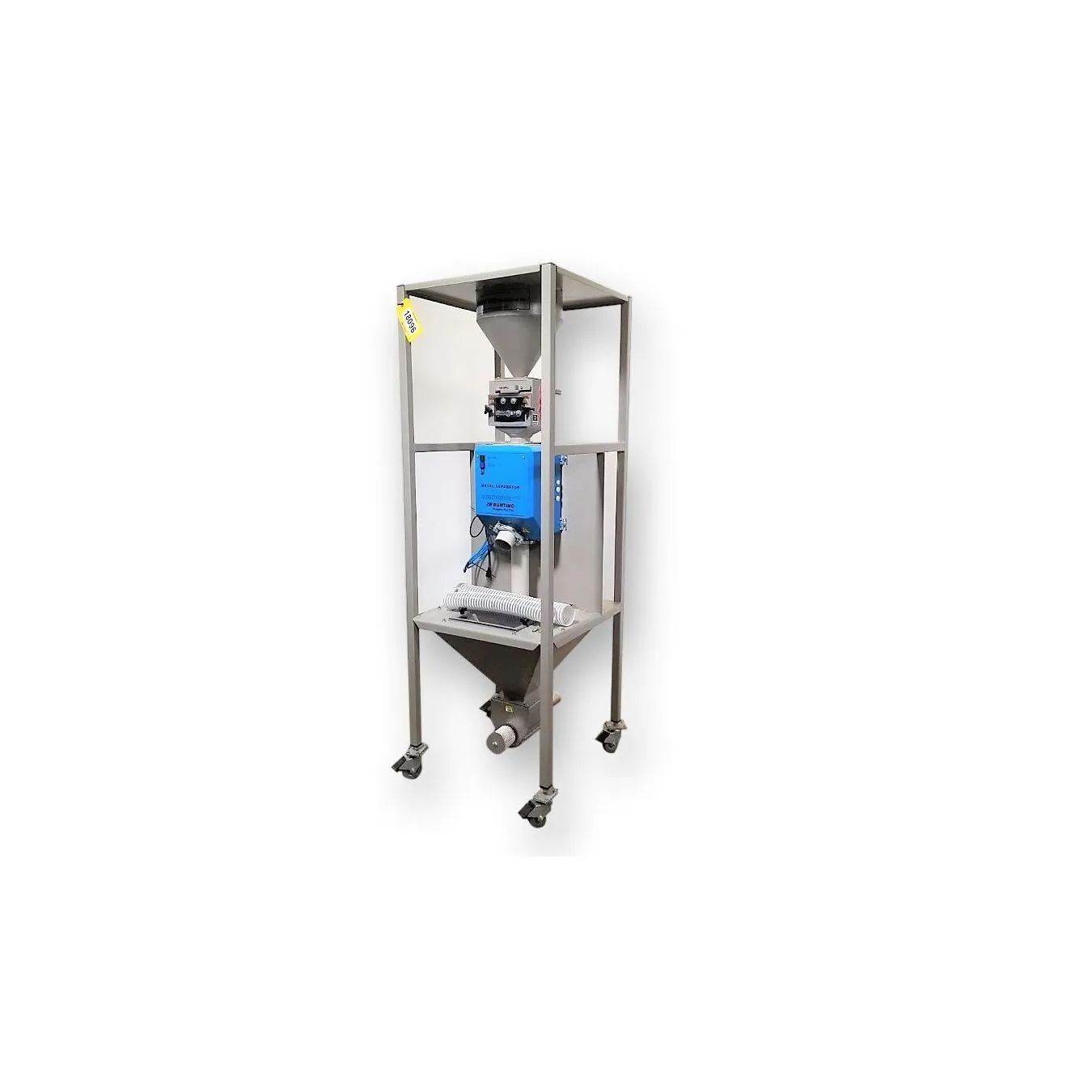

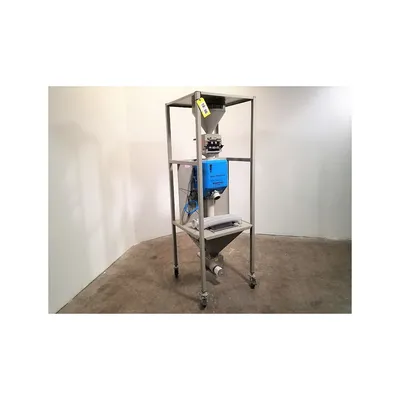

Combination Bunting magnetic and electronic metal separating system with pneumatic (vacuum) conveying discharge consisting of:

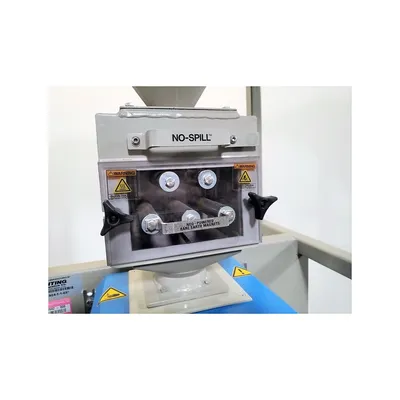

• Neodymium powered "FF series" rare earth drawer magnet w/no-spill slide gate - houses 2 rows of 1"Ø temperature compensated rare earth magnet bars

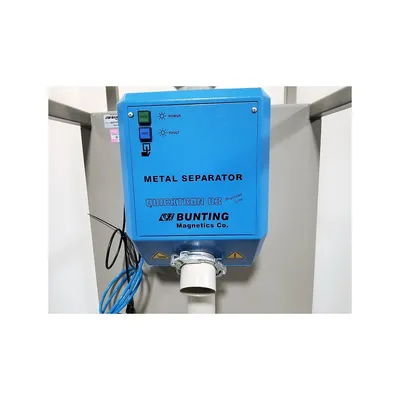

• 3"Ø Quicktron metal separator (IP54 rated)
Detection: triple coil
Electronics: AMD 03 with adjustable sensitivity
Outlet: 3.15" O.D. sleeve
Max. Operating Temperature: 154°F
Max. Product temperature: 176°F
Reject: air operated with stainless steel flap

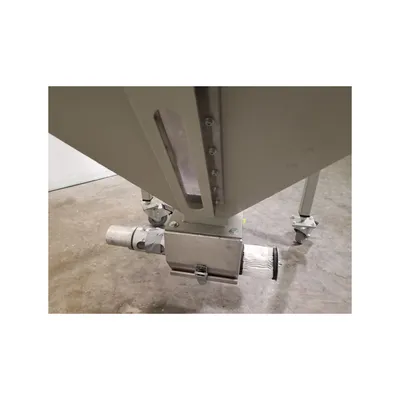

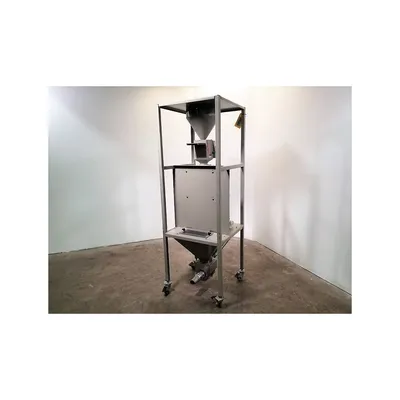

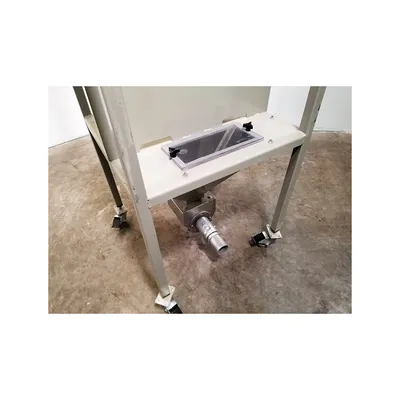

• Portable frame assembly with surge bin and Ø2.5" take-off port

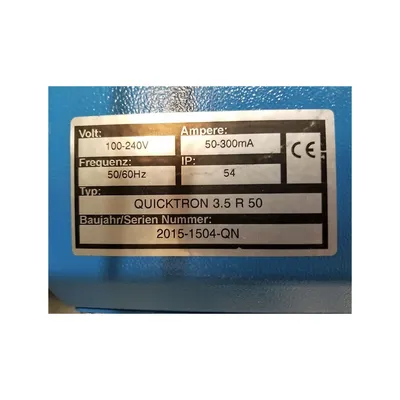

Supply: 110/240V, 50/60Hz, 1 phase and min. 70PSI compressed air
Dimensions: 28" X 28" X 82"
Demonstration Video on File.
FOB: Millwood, WV 25262
Specifications
Item: 18096 Model : 3.5 R 50
MFG: Bunting Magnetics Co.
