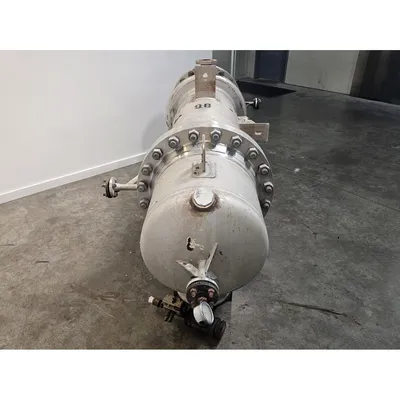

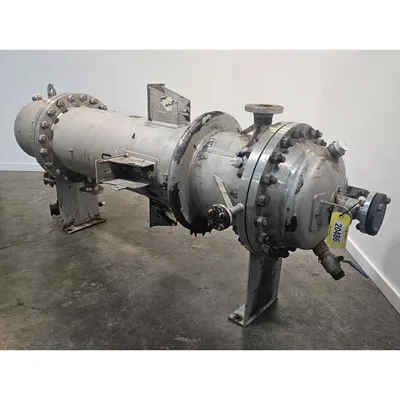

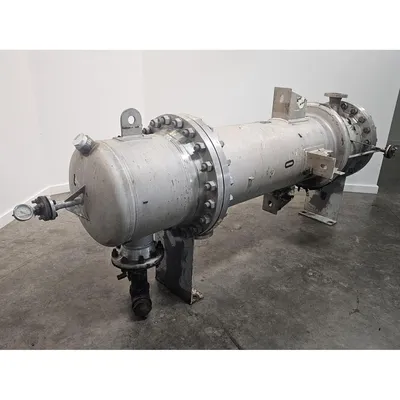

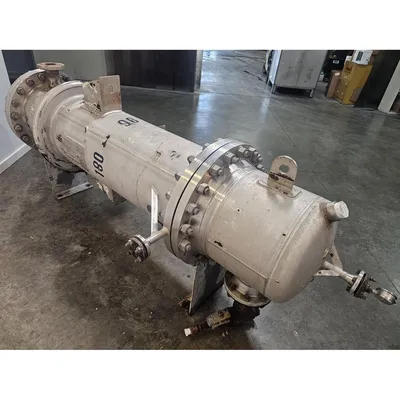

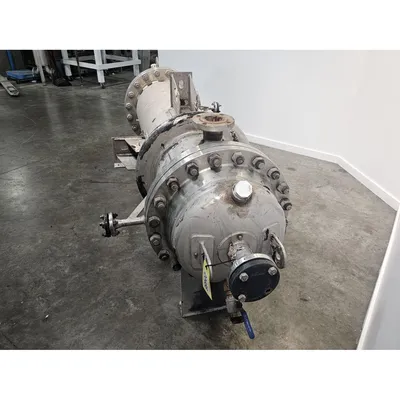

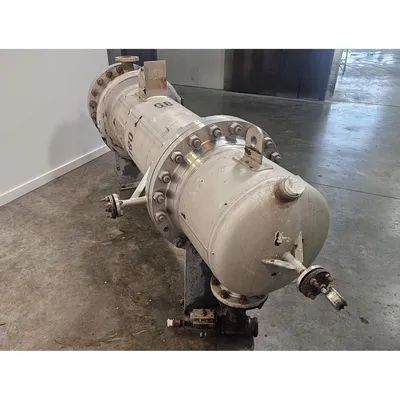

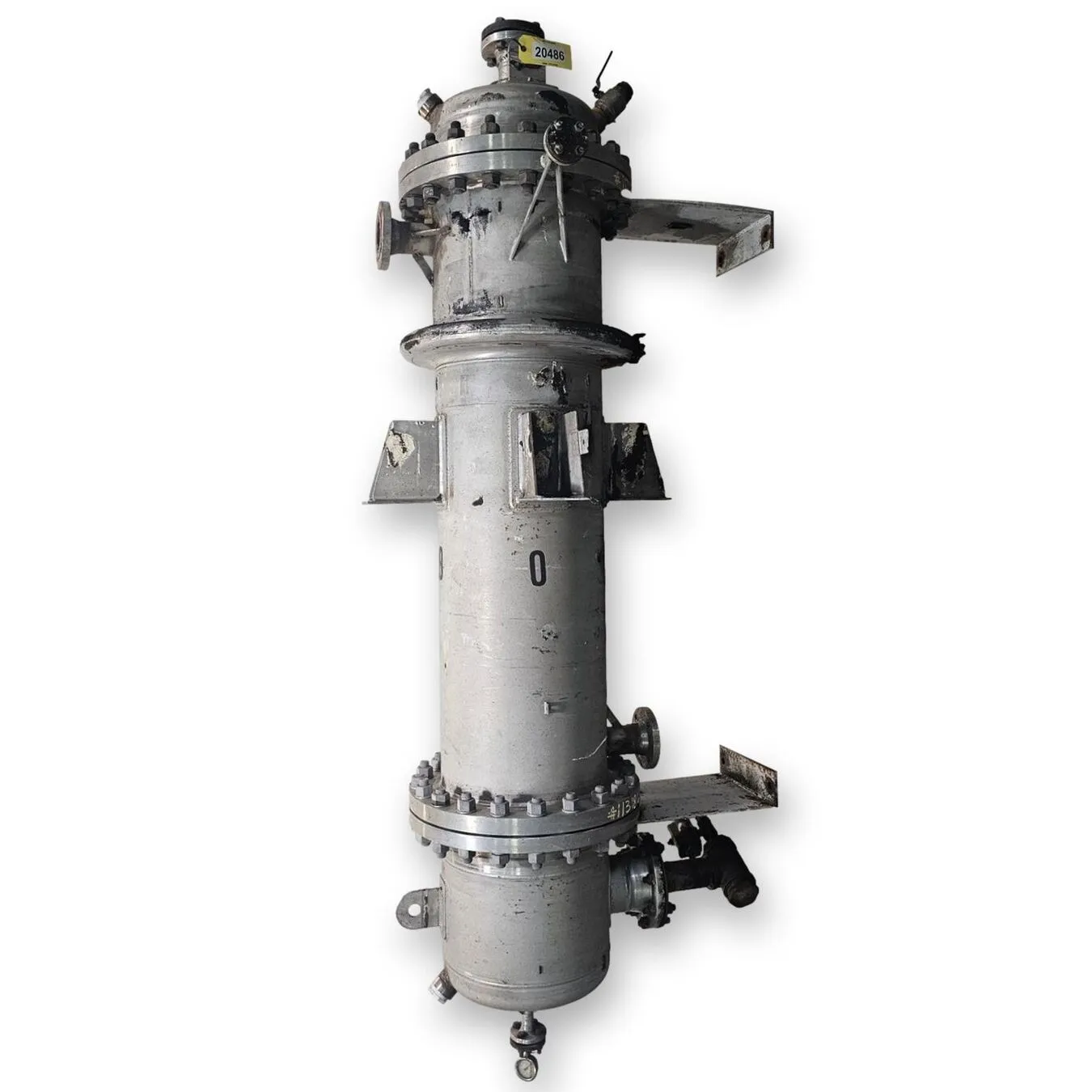

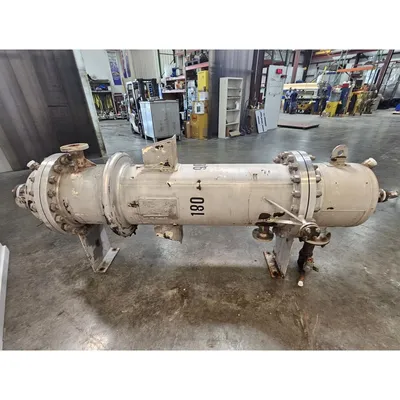

Used 20" Shell and Tube Stainless Steel Condenser Heat Exchanger, Fixed Tube

Stainless steel 20" diameter fixed tube heat exchanger.

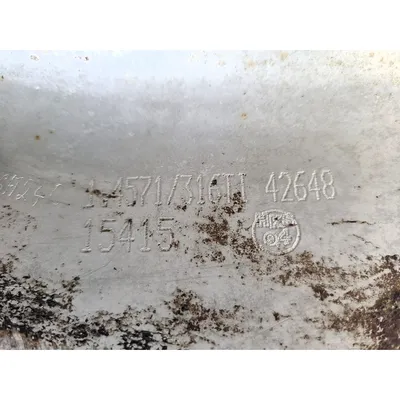

Markings on shell indicate 316 stainless construction.

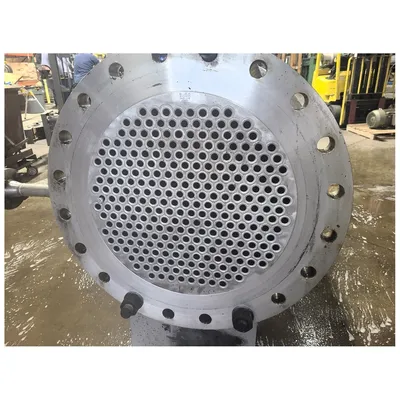

Tubes are Ø0.568" inside diameter X 6'-0" in length, quantity of 277.
Total length of the exchanger is 9'-5" between the tops of each head.

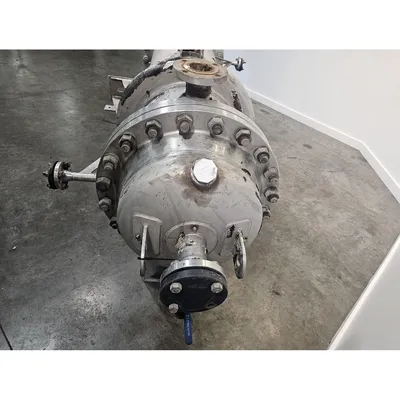

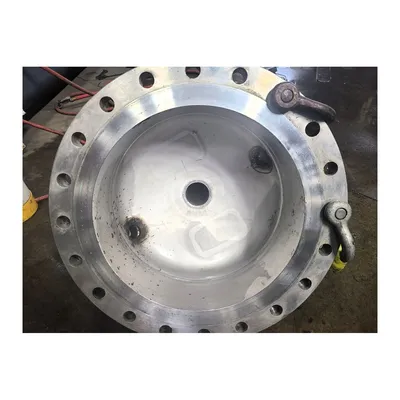

Tube inlet/outlets are installed on the heads (3"Ø flanges and 2- 2"NPT ports).
Shell side connections are 3'Ø flanged inlet and a 6"Ø flanged outlet w/3"NPT reduction.
NKS expansion joint installed on the shell.
No known temperature or pressure rating.
Weight = 2,950 LBS.

FOB: Millwood, WV 25262

Item: 20486
 Size (square feet): 0
