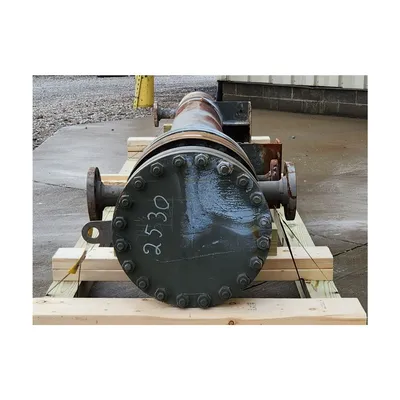

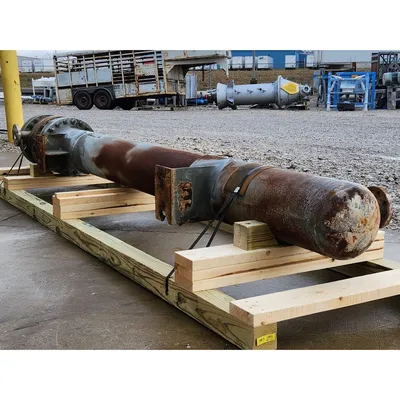

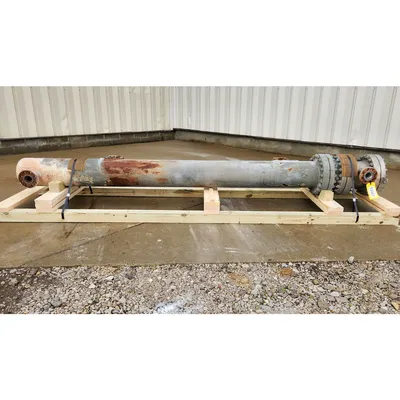

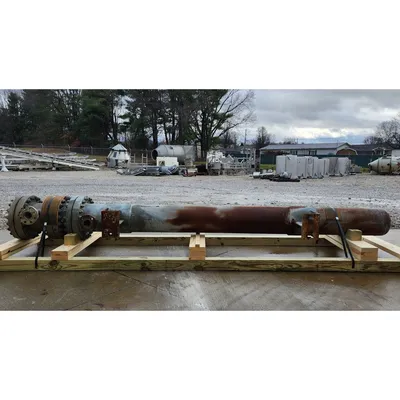

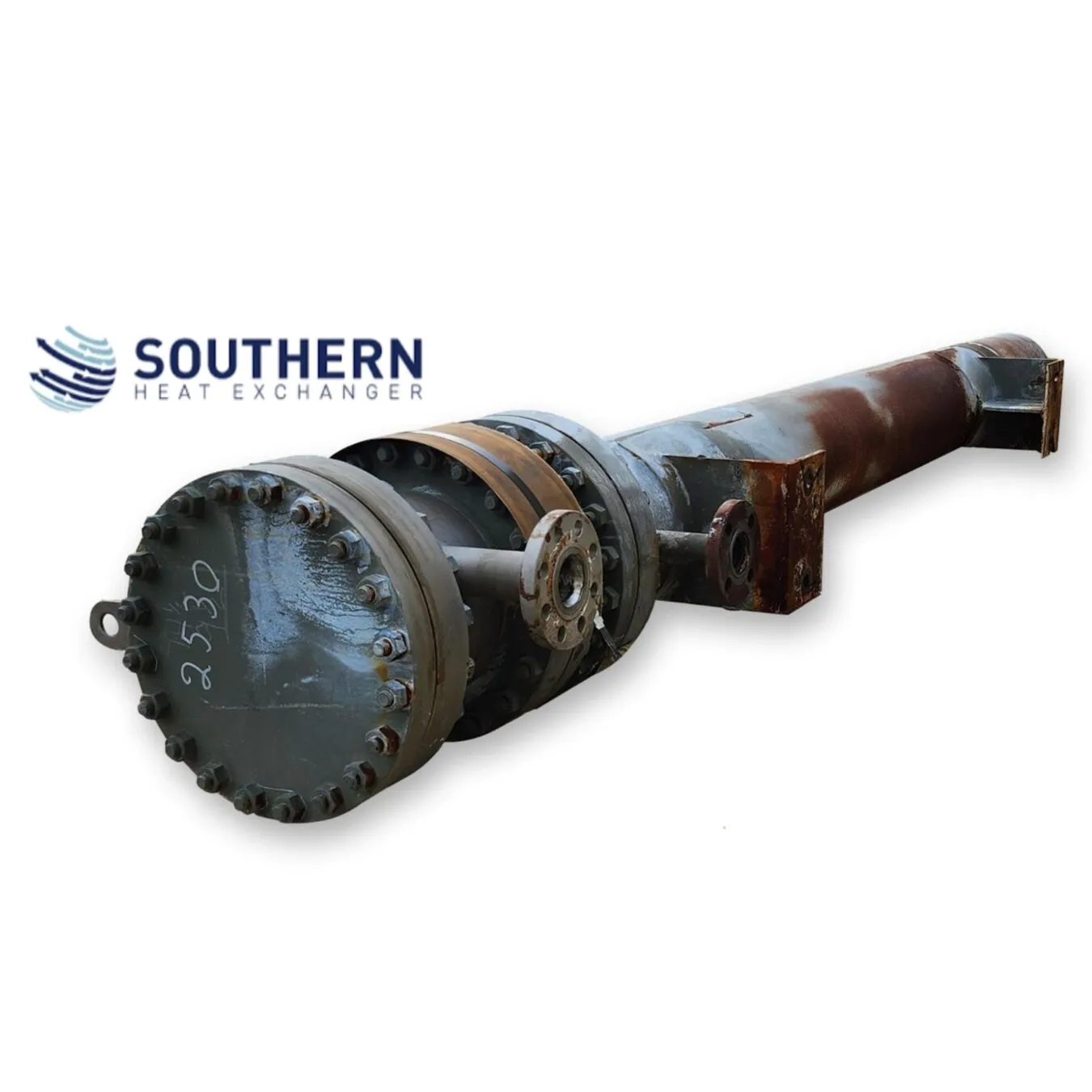

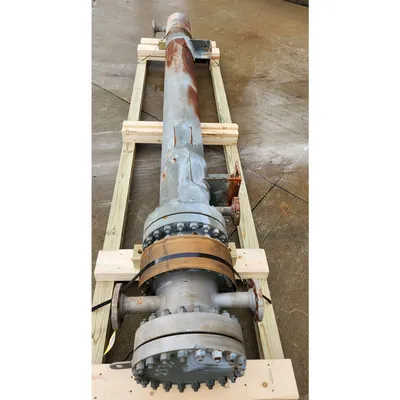

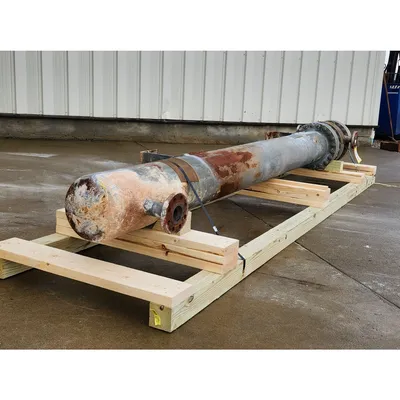

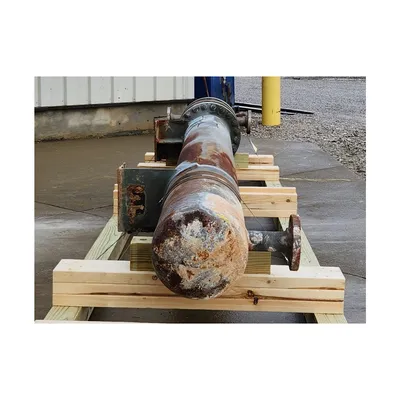

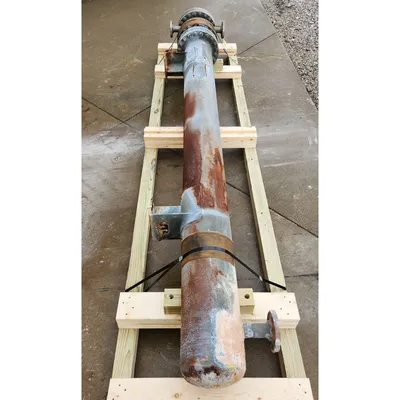

NEW SOUTHERN HEAT EXCHANGER CORP 10-108AEU

Performance Shell Side: 940LB/HR Steam
Performance Tube Side: 8,400LB/HR Ethylene Glycol
Shell Material Specification: SA106 Grade B - 10"Ø seamless pipe
Tube Material Specification: SA249 304L - 3/4"O.D. 16BWG (qty: 26)
ANSI Nozzle Connections:
Ethylene Glycol: 2"Ø ANSI 300 Inlet/Outlet
Steam: 2"Ø ANSI 300 Inlet; 1-1/2"Ø ANSI 300 Outlet
Shell Side:
MAWP: 250PSI @ 650°F; MDMT: 40°F @ 250PSI
Tube Side:
MAWP: 150PSI @ 650°F; MDMT: 40°F @ 150PSI
Process Specification on file

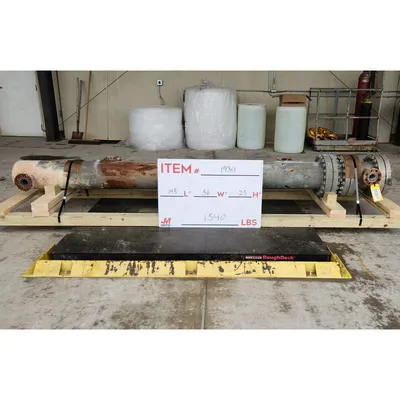

Shipping info: One skid, 145x36x25
Weight = 1,540 LBS.

FOB: Millwood, WV 25262

Item: 19361      Model :   10-108AEU
 MFG: Southern Heat Exchanger Corp
 Size (square feet): 87
