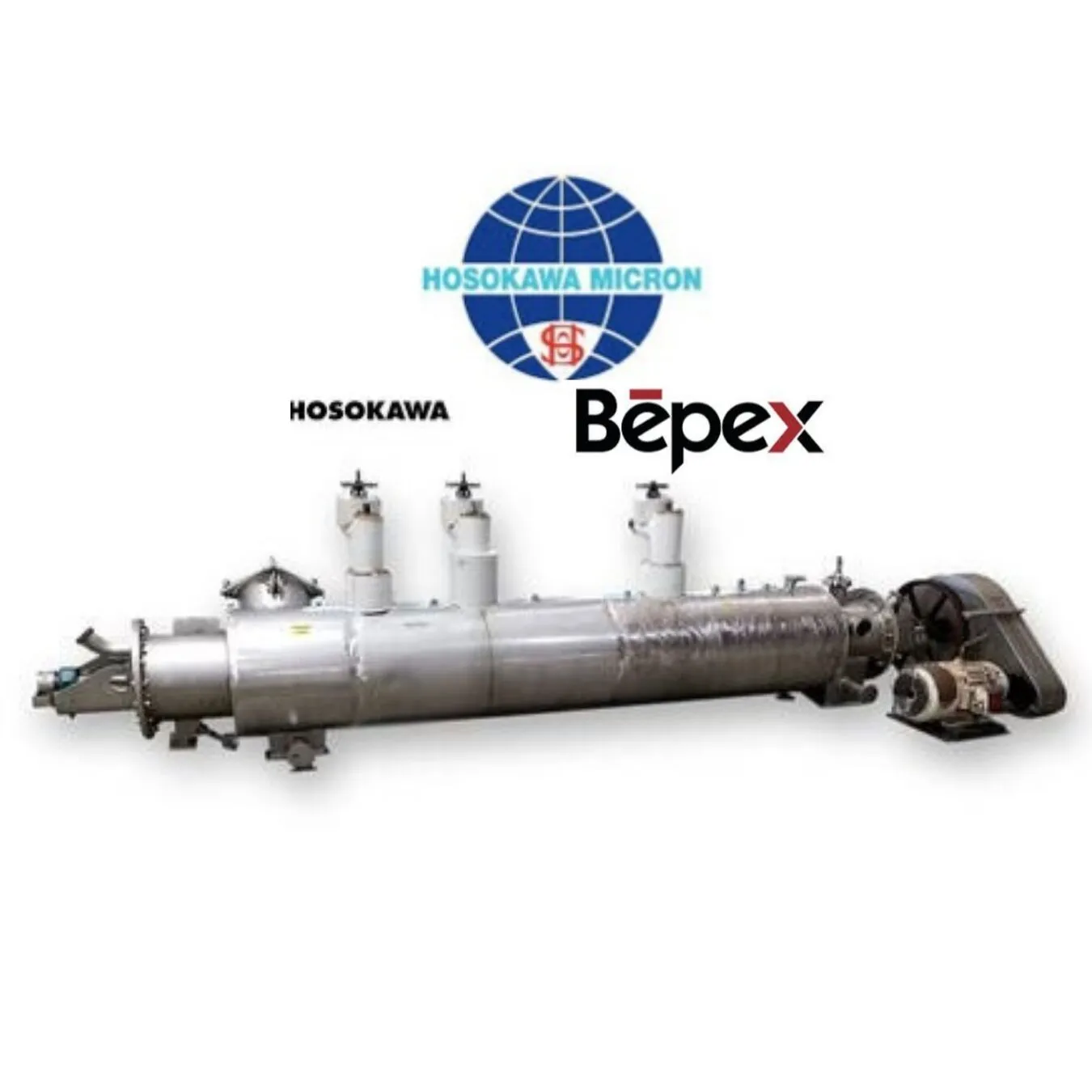

USED BEPEX SJS-16-10

The Solidaire paddle dryer system is a continuous, thin-layer paddle-dryer that provides extremely efficient thermal treatment.
Ultra-high thermal efficiency
High speed paddles break up loose agglomerates without particle size attrition
Paddles can be adjusted to control residence time

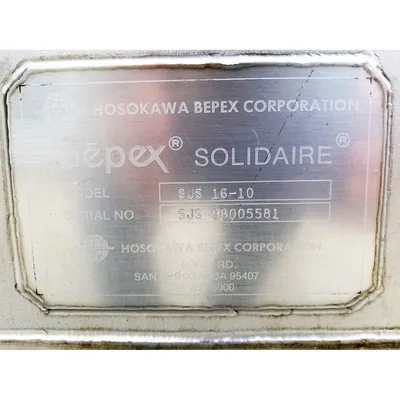

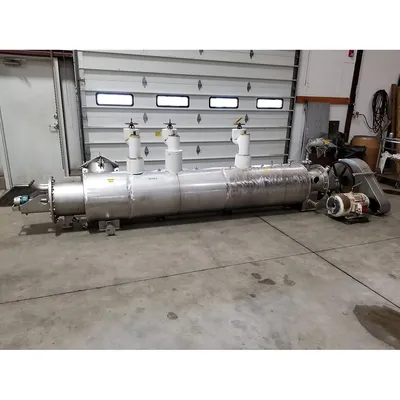

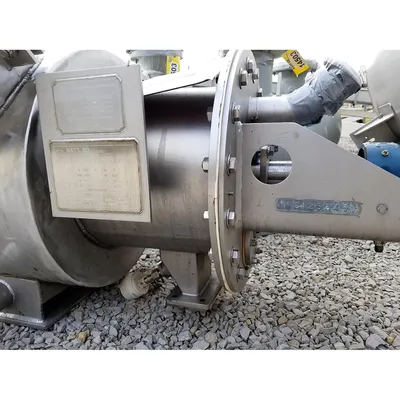

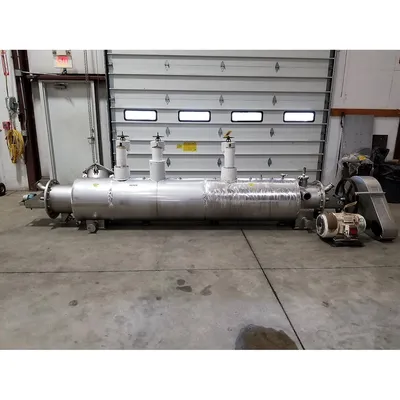

Bepex Solidaire Dryer Cooler
Model No: SJS-16-10
Serial No: SJS 98005581

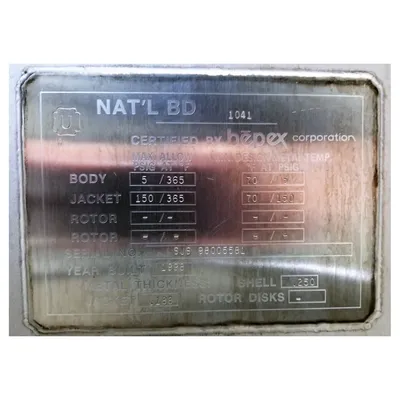

Maximum Pressure: Body - 5 PSIG @ 365°F, Jacket - 150 PSIG @ 365°F
Minimum Metal Temp: 70°F @ 5 PSIG, Jacket - 70°F @ 150 PSIG
Jacket Thickness: .188
Shell Thickness: .250

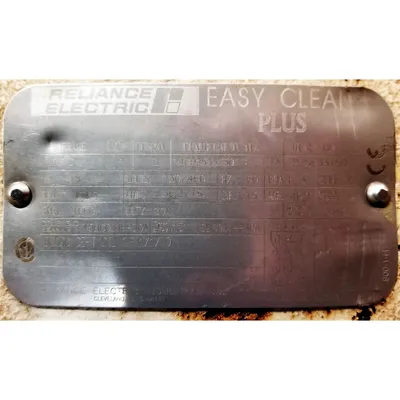

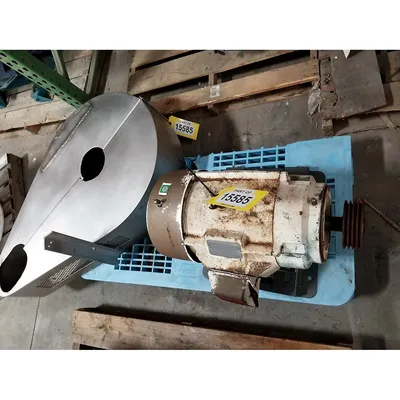

15 HP Reliance Motor: 230/460 Volt, 1765 RPM, 3 Phase, Frame: 256TC

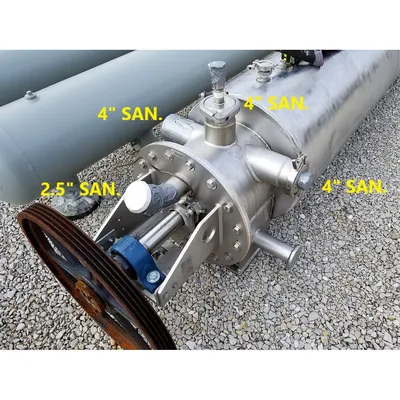

2-3/4"Ø product inlet.
The paddles are oriented 180° apart, staggered. (2) rows
(2) rows with paddles spaced every 3.25". Totaling (94) paddles. Paddles have adjustable angle via the treaded ends and the lock nut. Please refer to the .pdf manual.

FOB: Millwood, WV 25262
