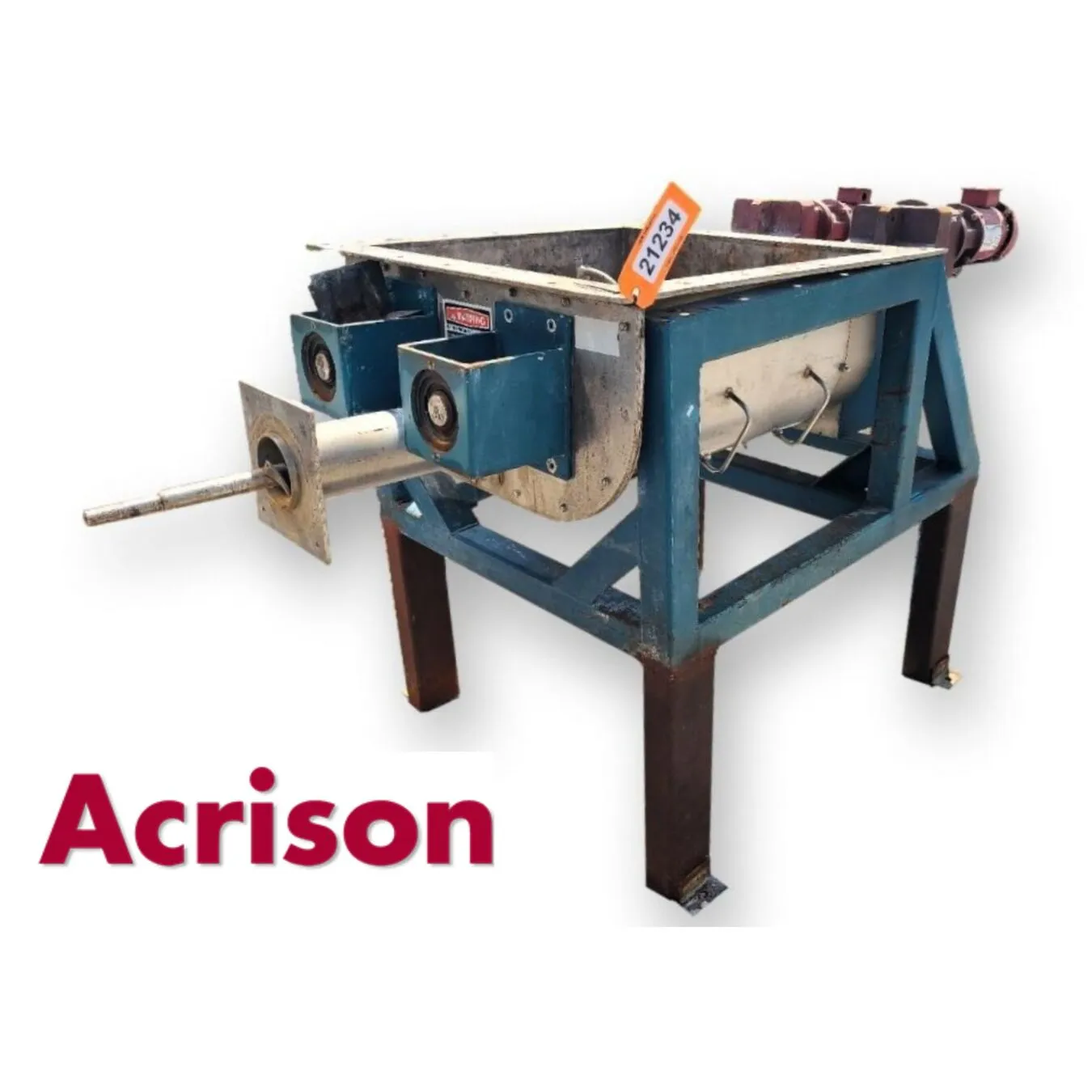

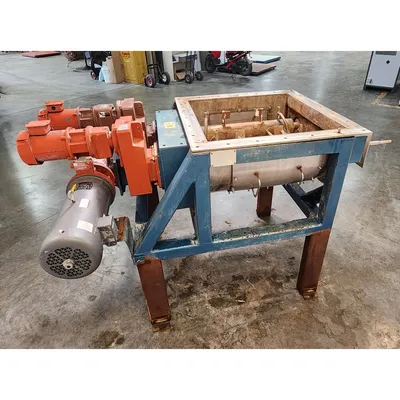

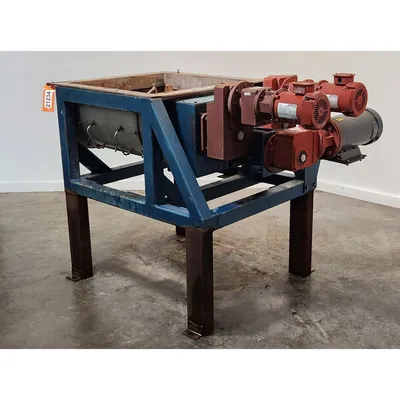

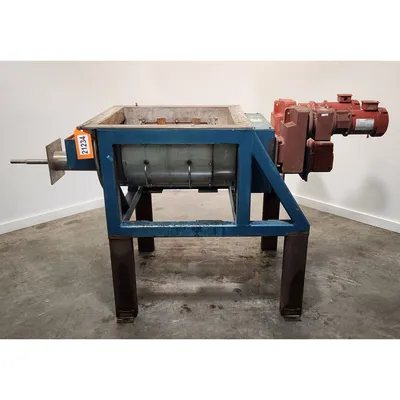

USED ACRISON INC. SBDF-10-2.5-N

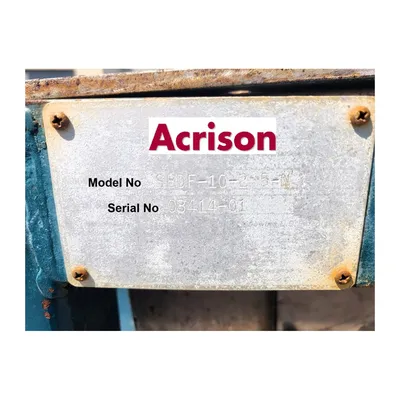

Serial # 03414-01.
For mass gravity flow of product from storage above feeder.
304 stainless steel contact parts.
Curved bottom housing with inlet flange (30"W X 29.5"W).
Auger: 4.25"Ø X 46"L

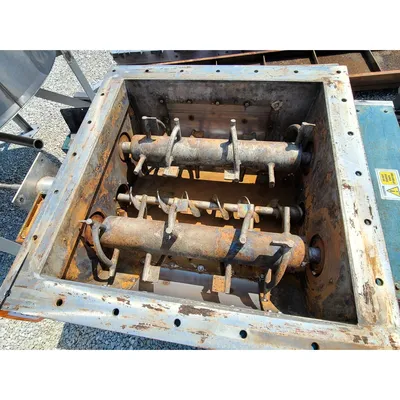

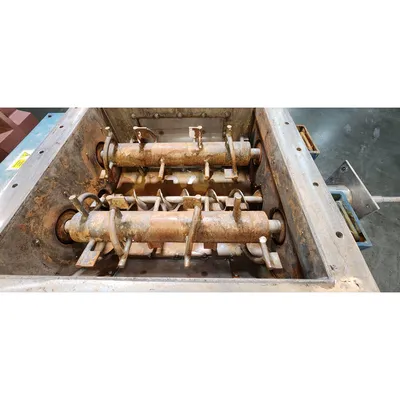

Twin Agitators: 11"Ø pin-bars & paddles, counter-rotating
Feeder tube is 15" long, the auger shaft extends 26'5" from housing.

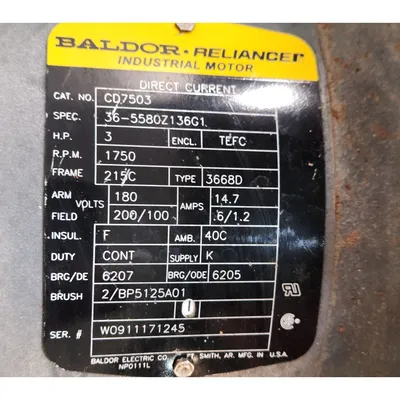

Auger Drive: 3HP, 180Volt DC

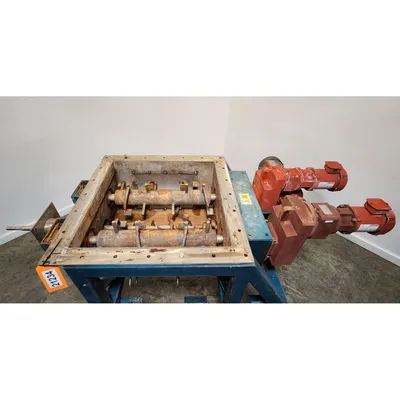

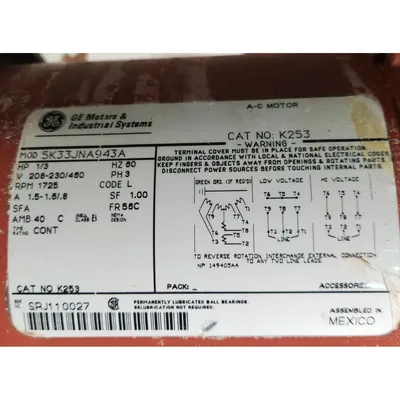

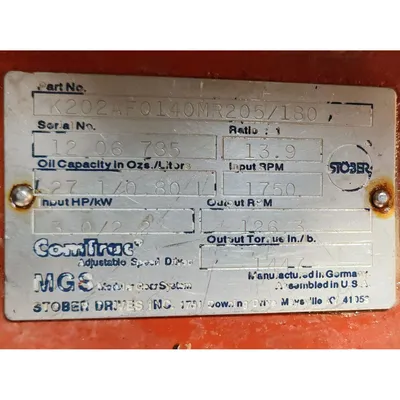

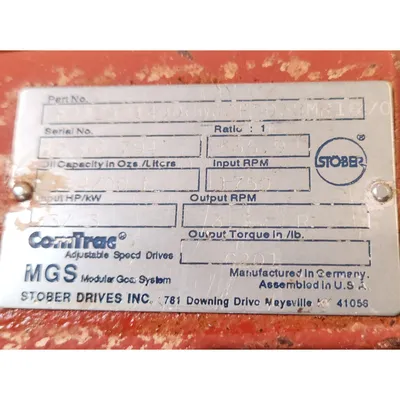

Agitator Drives (X2): 1/3HP AC gearmotors (208-230/460V, 60Hz, 3ph)
Agitator conditioners speed = 3.37 RPM.
Overall dimensions: 92x52x51" H.
Weight = 1,578 LBS.

FOB: Millwood, WV 25262

Item: 21234      Model :   SBDF-10-2.5-N
 MFG: Acrison Inc.
 Diameter (inches): 0
