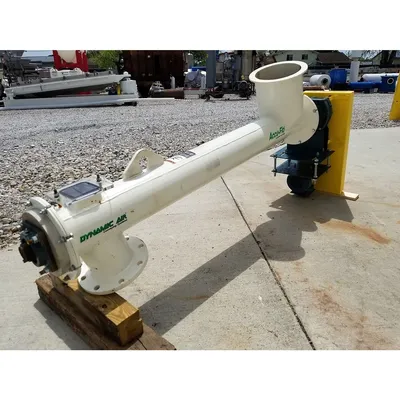

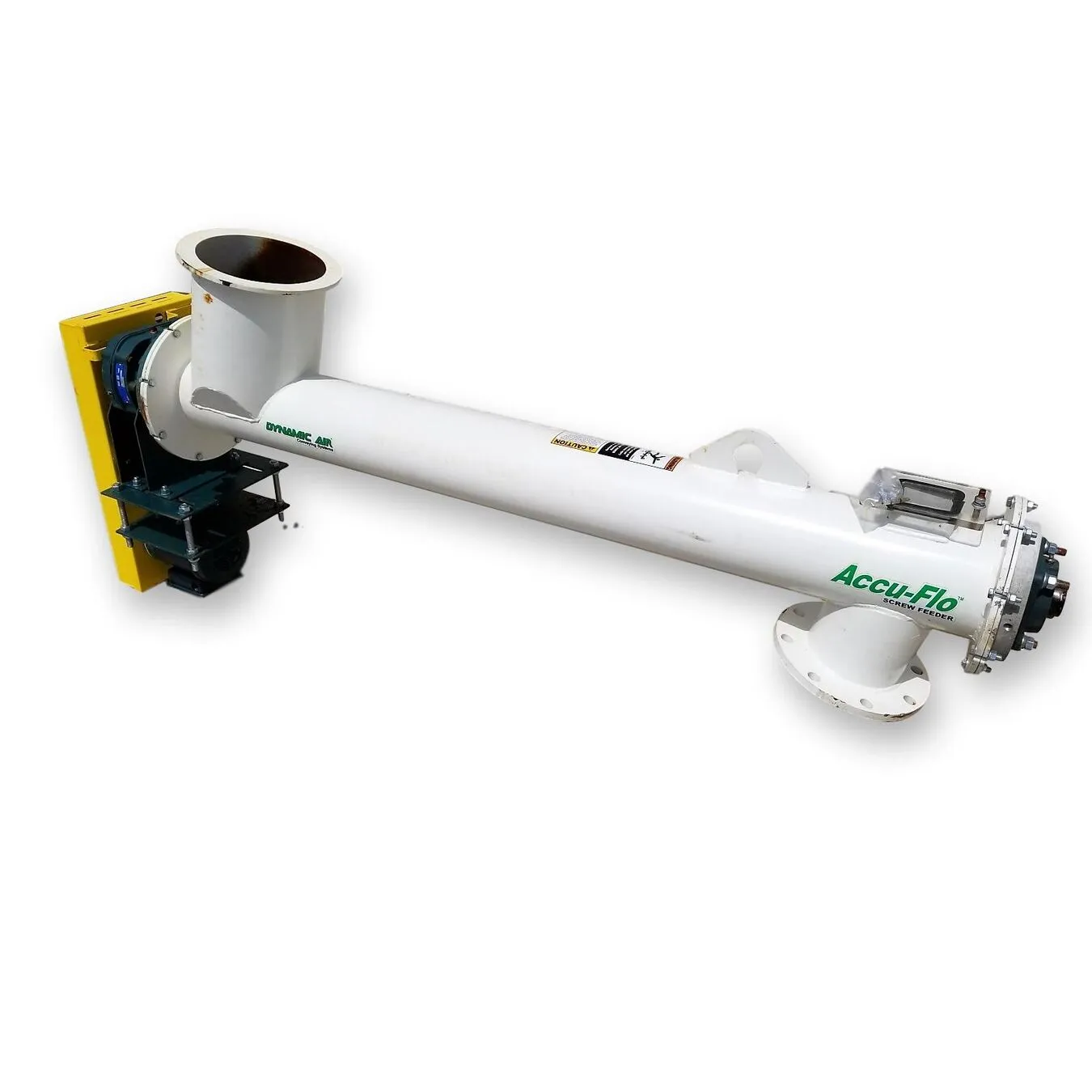

NEW DYNAMIC AIR 495-946

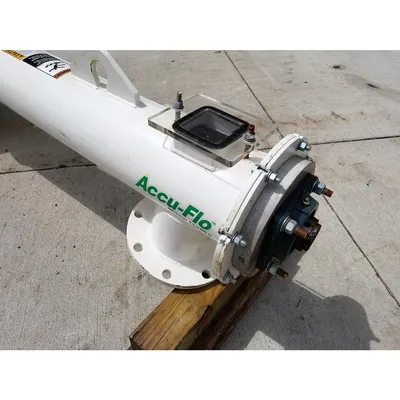

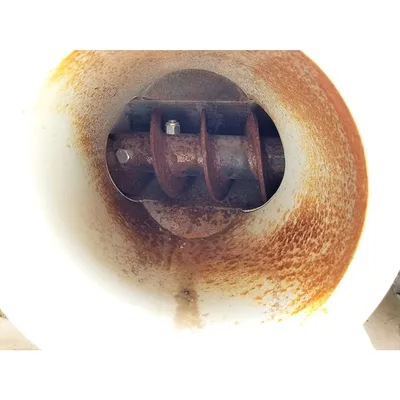

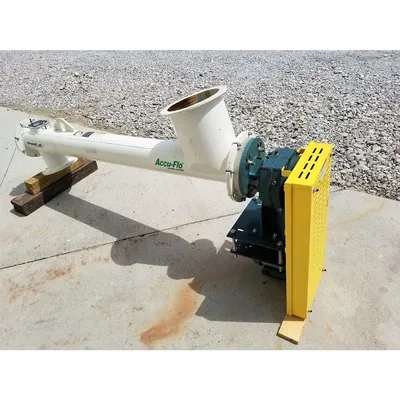

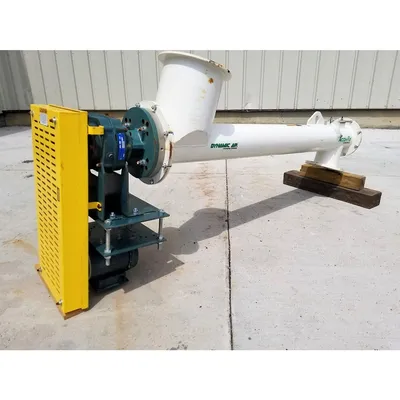

Carbon steel construction. The tubular housing is 5'-8" in length (end plate to end plate). 4'-7" between inlet/discharge centers. Heavy-duty shaft with 1/2 pitch, full length flighing. The drive end inlet is 10.25" I.D. with a blank flange. Discharge is a 6"Ø ANSI 125/150 standard flange connection with an installed sight glass above. Auger RPM: 18. 1 HP drive is belt-driven through a Dodge torque-arm speed reducer. Drive assembly will pivot in 90° increments. Requires 230/460 volt, 60Hz, 3 phase AC. Overall Length: 87". Weight: 451 LBS.

FOB: Millwood, WV 25262

Item: 16709      Model :   495-946
 MFG: Dynamic Air
 Diameter (inches): 6
