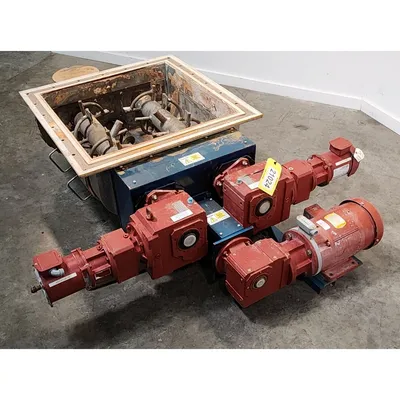

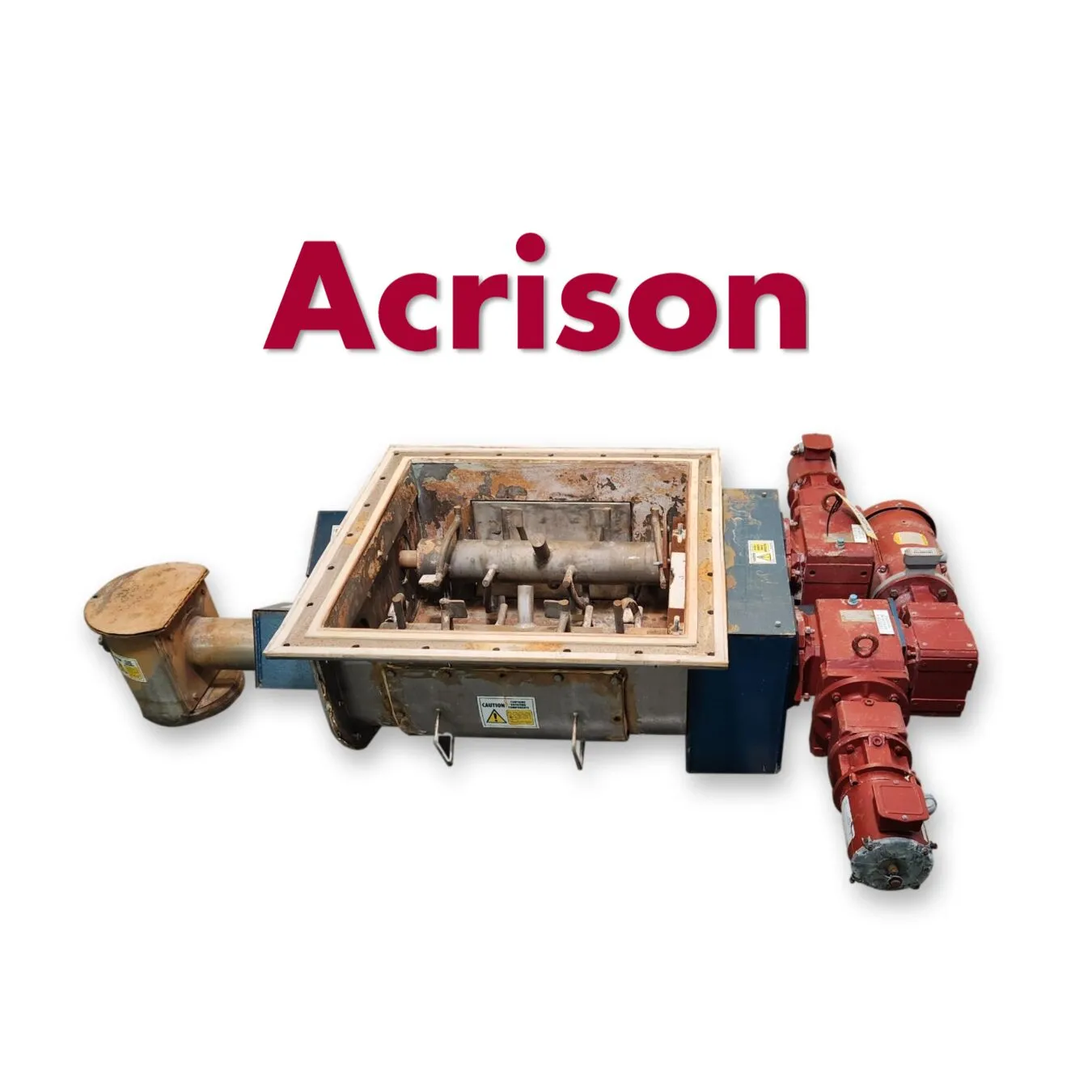

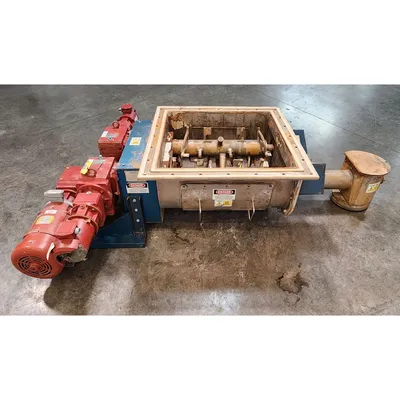

USED ACRISON, INC. BDF-25N

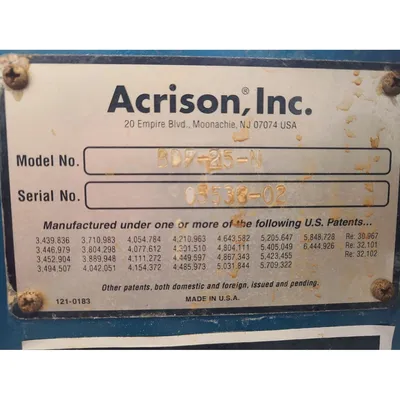

Serial No: 05536-02
Designed for mass gravity flow of product from storage above feeder.
304 stainless steel contact parts.
Curved bottom housing with double gasketed inlet flange (2.5' square inside opening).

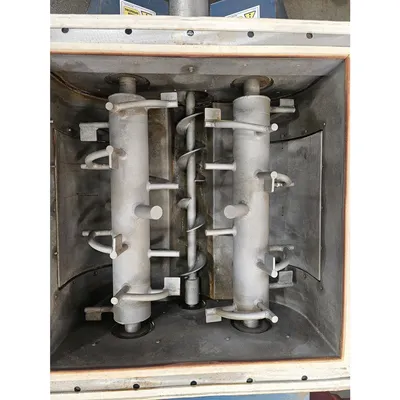

Metering Auger: 4.5"Ø with segmented curved flighting, center position

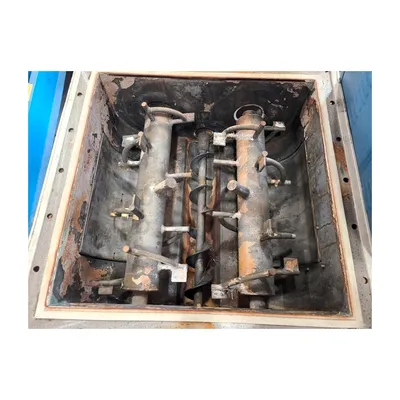

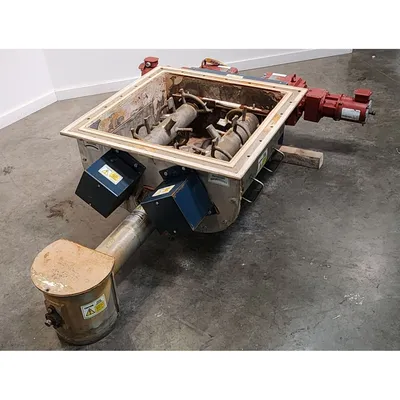

Twin Agitators: 11"Ø pin-bars & paddles, counter-rotating
Feeder tube is 24" long, with end bearing and 10"Ø gravity drop-out.

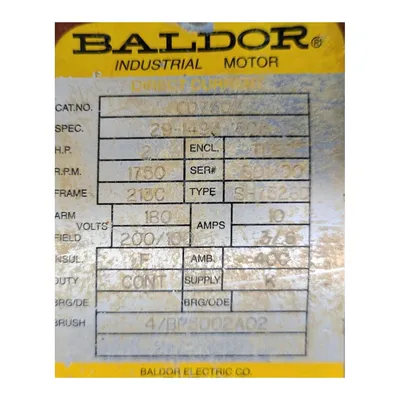

Auger Drive: 2HP, 180Volt DC, 1750RPM (gear tag missing – unknown turndown ratio)

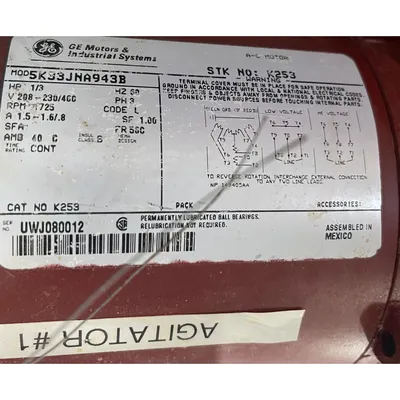

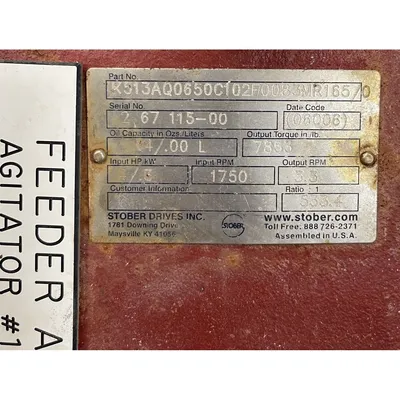

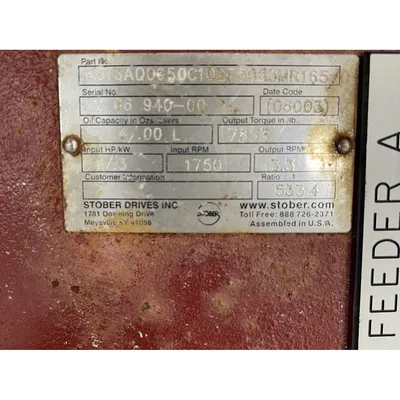

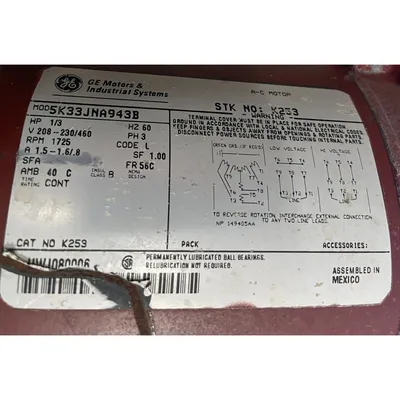

Agitator Drives (X2): 1/3HP AC gearmotors, 3.3RPM output (208-230/460V, 60Hz, 3ph)
Agitator motors have damaged cooling fans and covers.
Overall dimensions: 93" L x 64" W x 24" H.
Weight = 1,447 LBS

FOB: Millwood, WV 25262

Item: 21401      Model :   BDF-25N
 MFG: Acrison, Inc.
 Diameter (inches): 4.5
