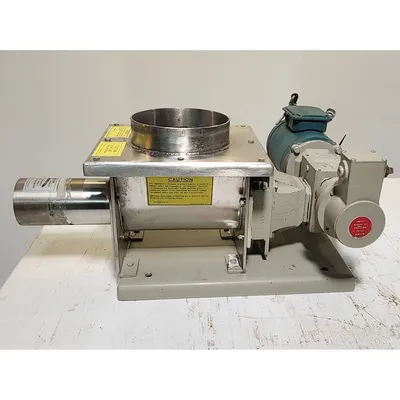

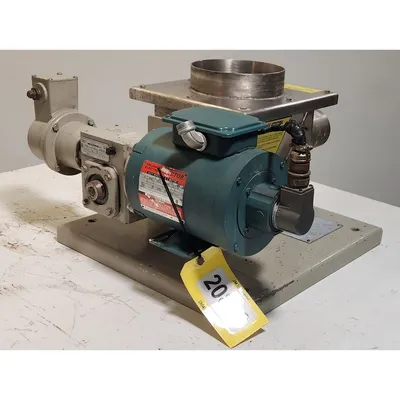

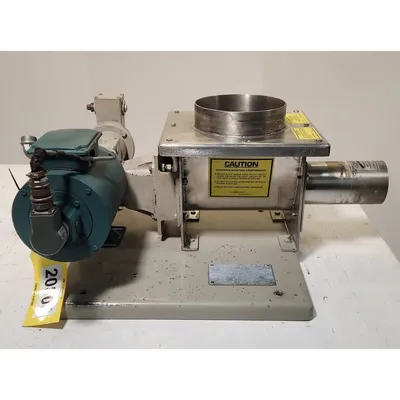

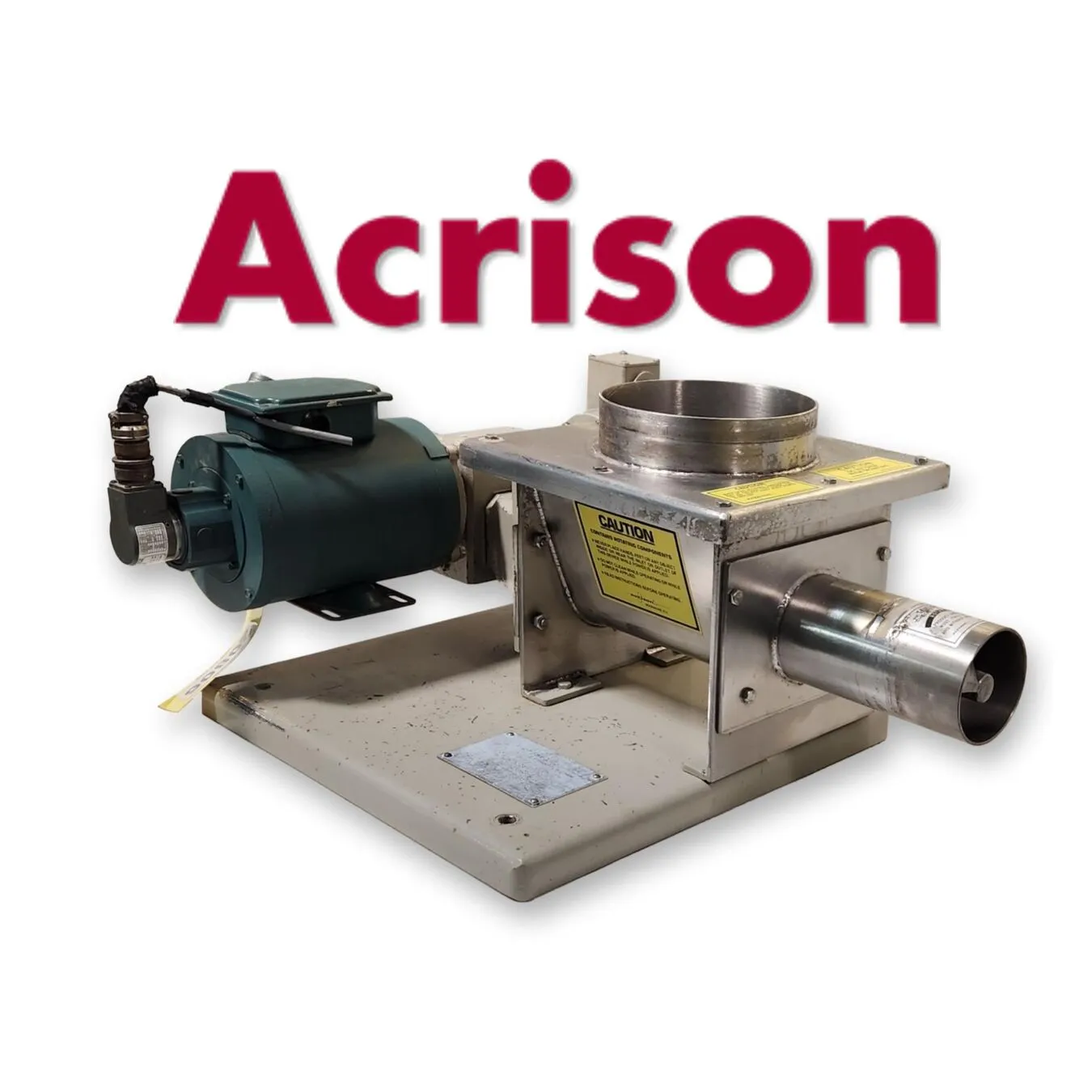

USED ACRISON INC. 101-K

For controlled metering of free-flowing dry solids, granules & pellets.
Max. Output Capacity: 84 cu/ft per hour
Min. Output Capacity: 9.4 cu/ft per hour
0.5 cubic foot hopper with an 8"Ø inlet sleeve.

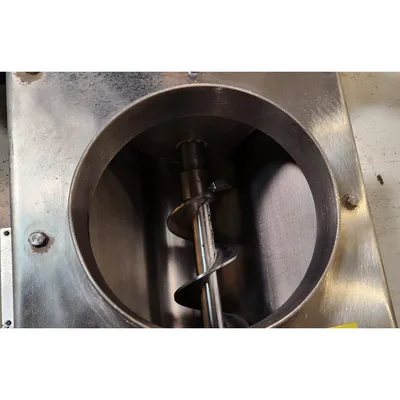

Auger: Ø3.5" size K solid flight metering auger, standard pitch, (working speed: 120RPM)
Feeder tube is Ø4" X 8"L with straight end

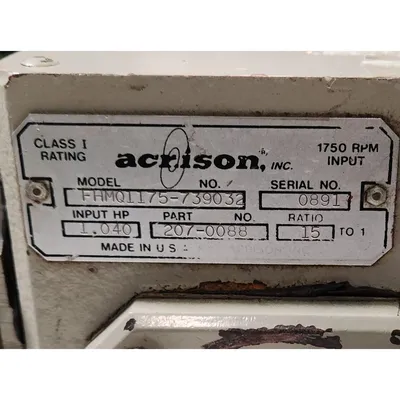

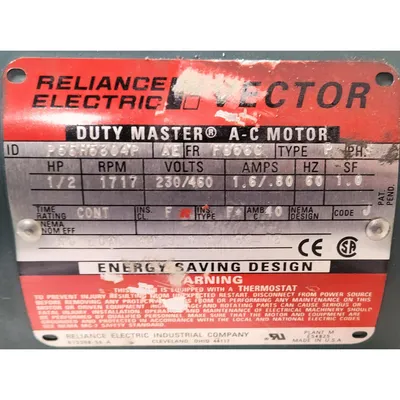

1/2HP gearmotor drive with a 15:1 ratio (230/460V, 60Hz, 3ph)
Mild steel base mounting plate.

FOB: Millwood, WV 25262

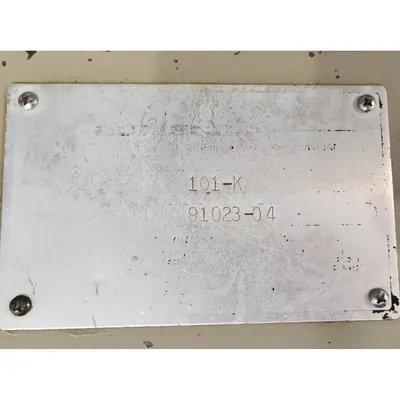

Item: 21399      Model :   101-K
 MFG: Acrison Inc.
 Diameter (inches): 4
