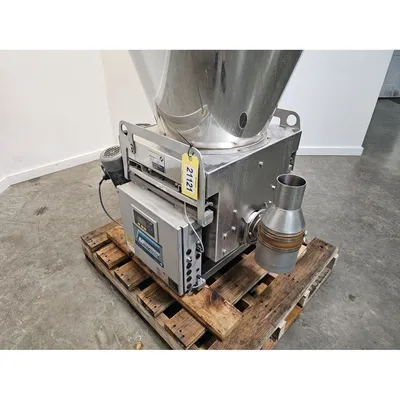

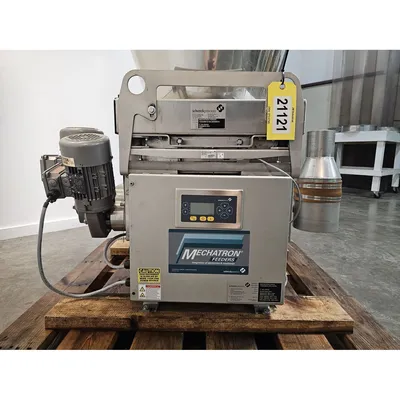

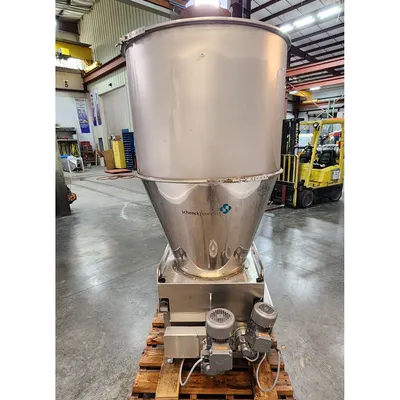

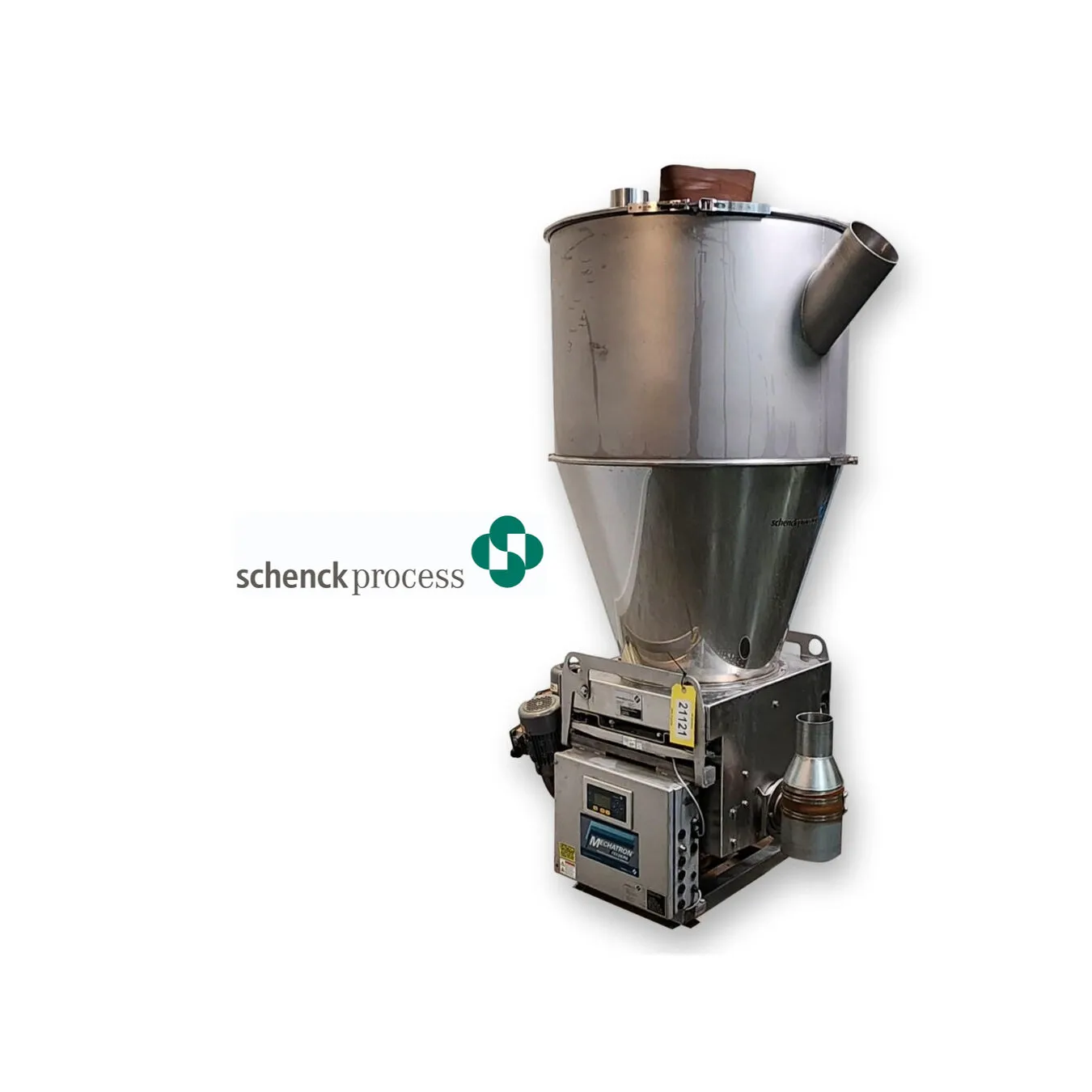

NEW SCHENCK PROCESS GMBH MECHATRON

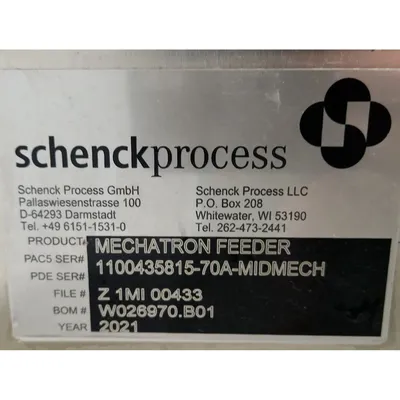

Serial # 1100435815-70A-MIDMECH
Contact Materials: 304 & 316 SS, FDA Approved Vinyl, HDPE, Nylon
Installed with two 300KG load cells, 1,320LBs total capacity.

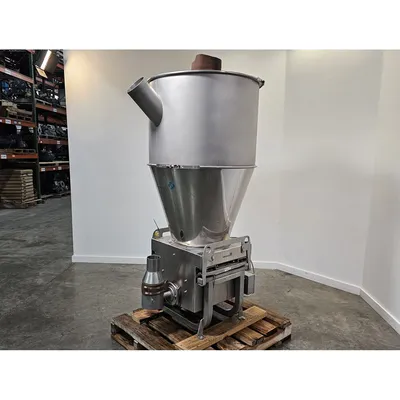

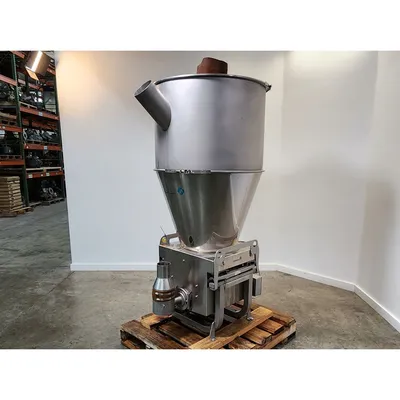

Loading Hopper: 316SS, 19.0 cu/ft capacity, Ø10" product inlet, Ø4" vent sock, Ø6" dust

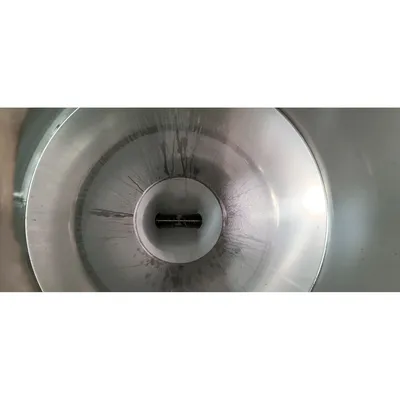

Internal Hopper: FDA vinyl, with paddle flow aid, 1.2 cu/ft capacity
Feed Auger: Ø1.5" std. flight, 316 stainless steel

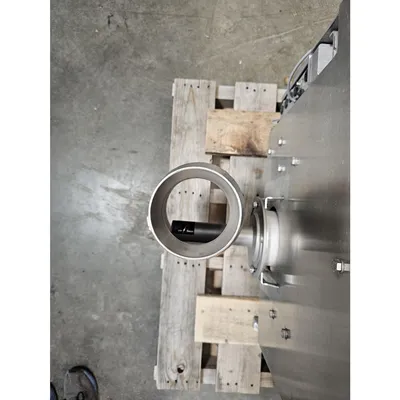

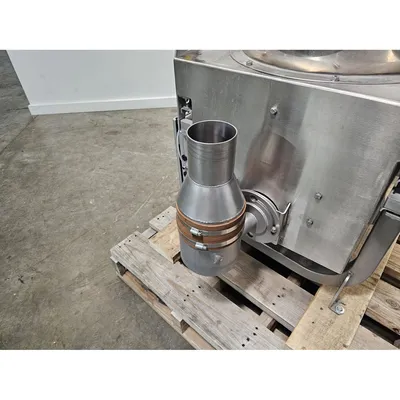

Discharge: Ø6.5" drop-out nozzle with top vent, 8" above base

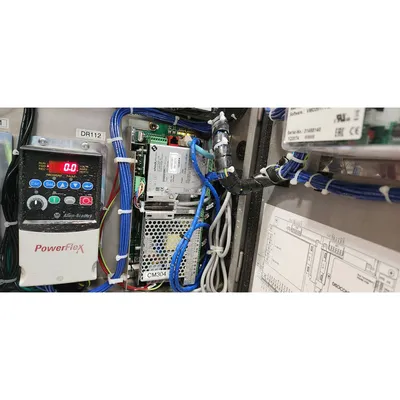

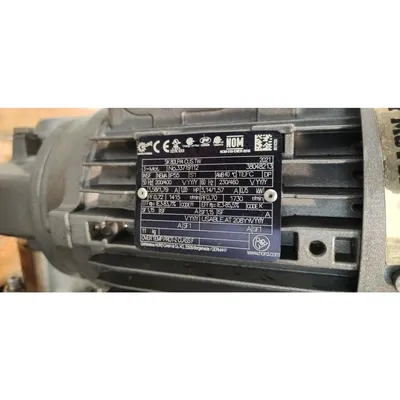

Speed controlled gearmotor drives for the auger (1HP) and agitator (0.5HP).

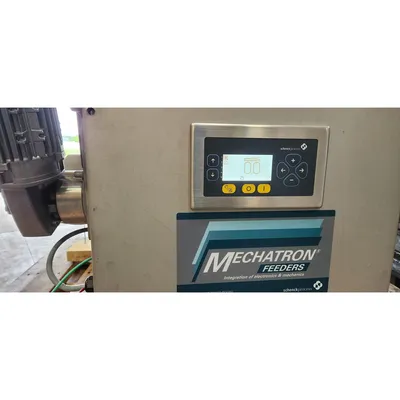

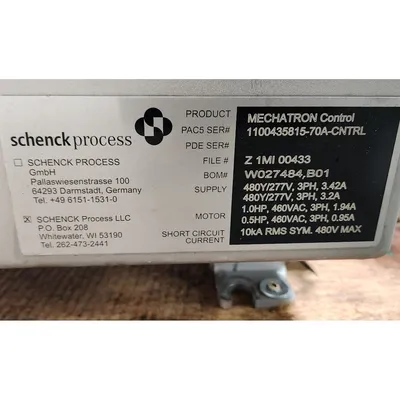

Mid-range Mechatron feeder controller with LCD touch display.
Electrical Service: 460 Volt, 3 phase AC
Design Application: Zeolite Fines (catalyst) 100-300LBS per 20 min. batch

FOB: Millwood, WV 25262

Item: 21121      Model :   MechaTron
 MFG: Schenck Process GmbH
 Diameter (inches): 1.5
