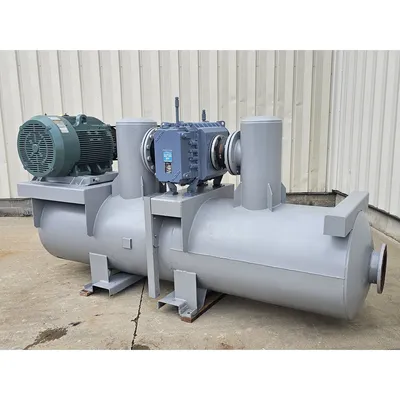

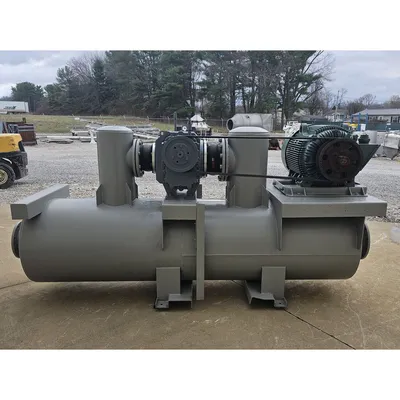

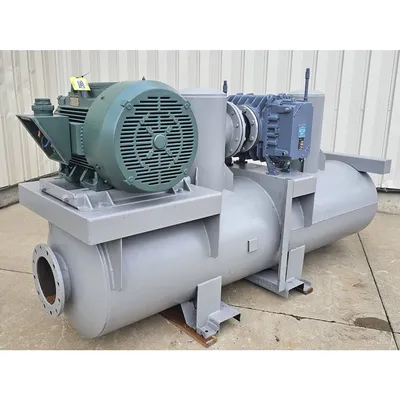

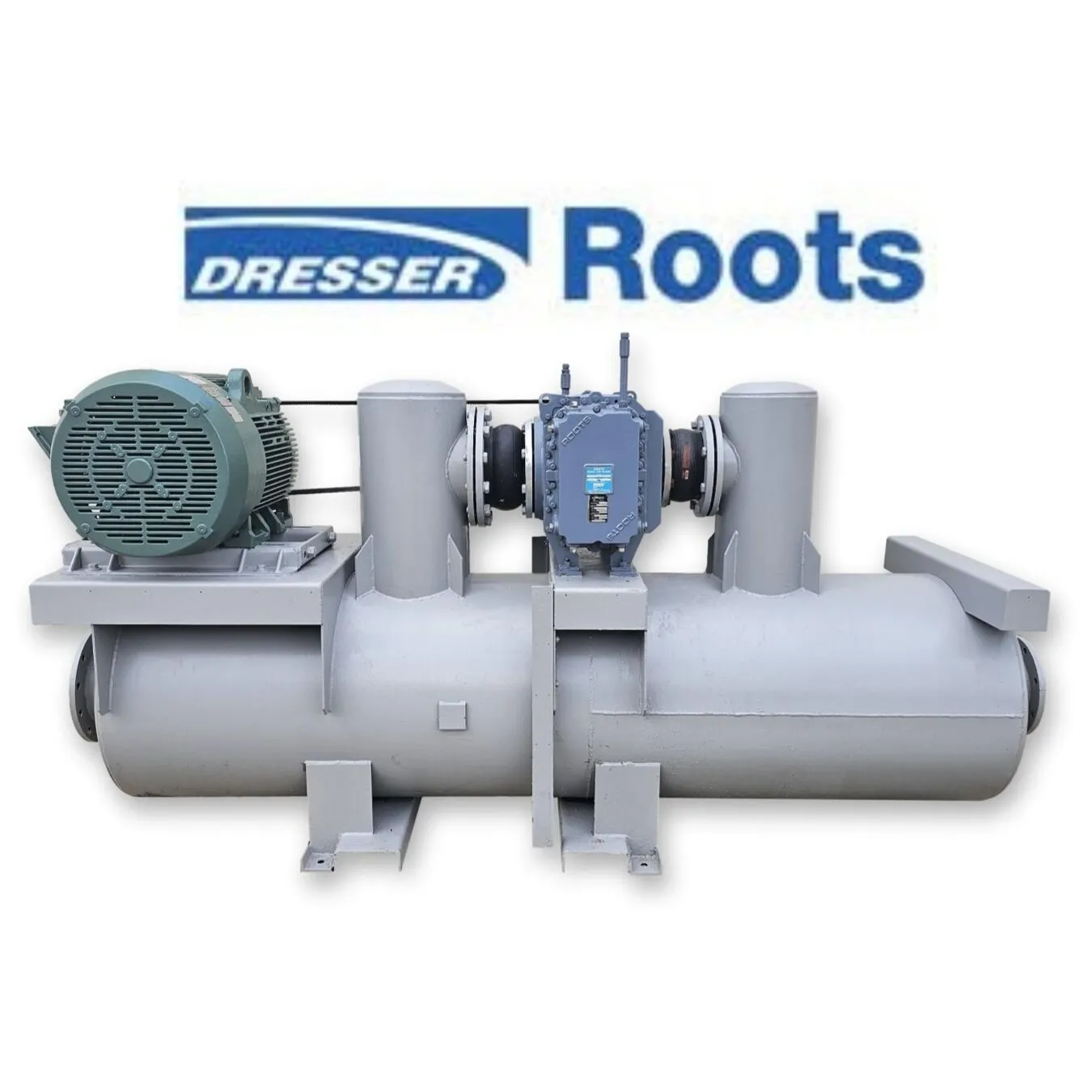

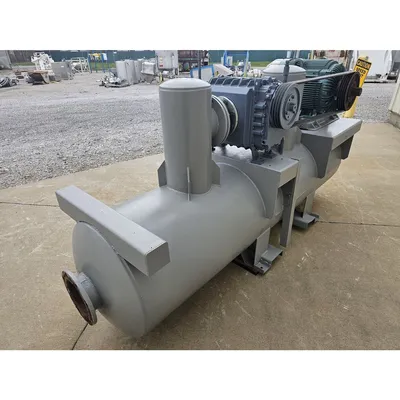

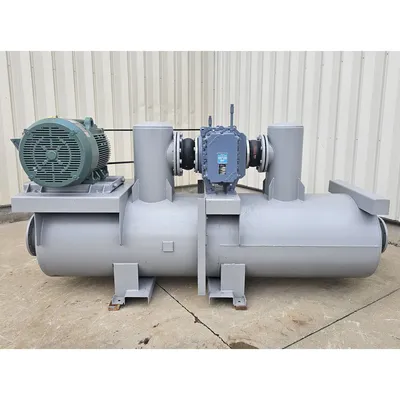

USED ROOTS DRESSER INC. 616 RAM-J

Horizontal, multi-chamber absorption silencer (combination intake & discharge).
Integrated blower and drive mounting to silencer.
Blower unit is configured vertically, with horizontal airflow.
Line Connections: IN= Ø10"; OUT= Ø8" (125 ASA flanges)

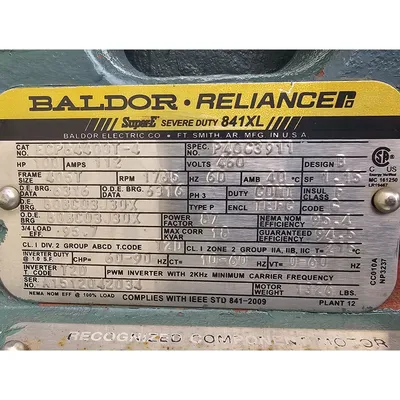

100HP v-belt drive (460V, 60Hz, 3ph, 1785RPM)
Includes mild steel sheet cladding for outdoor operation.
Will require an inlet air filter and pressure relief valve.
Speed controllers sold separately
IOM Manual on file

FOB: Millwood, WV 25262

Item: 19962      Model :   616 RAM-J
 MFG: Roots Dresser Inc.
 HP: 100
