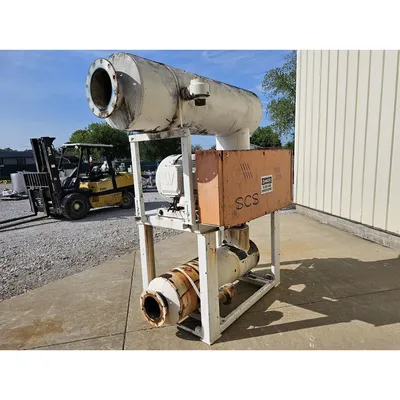

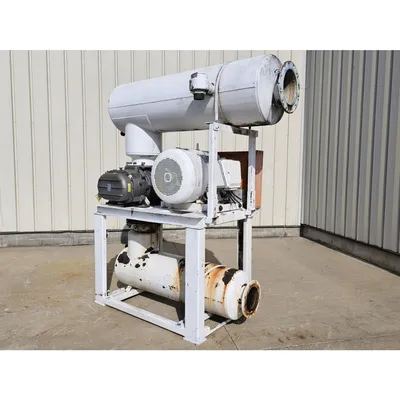

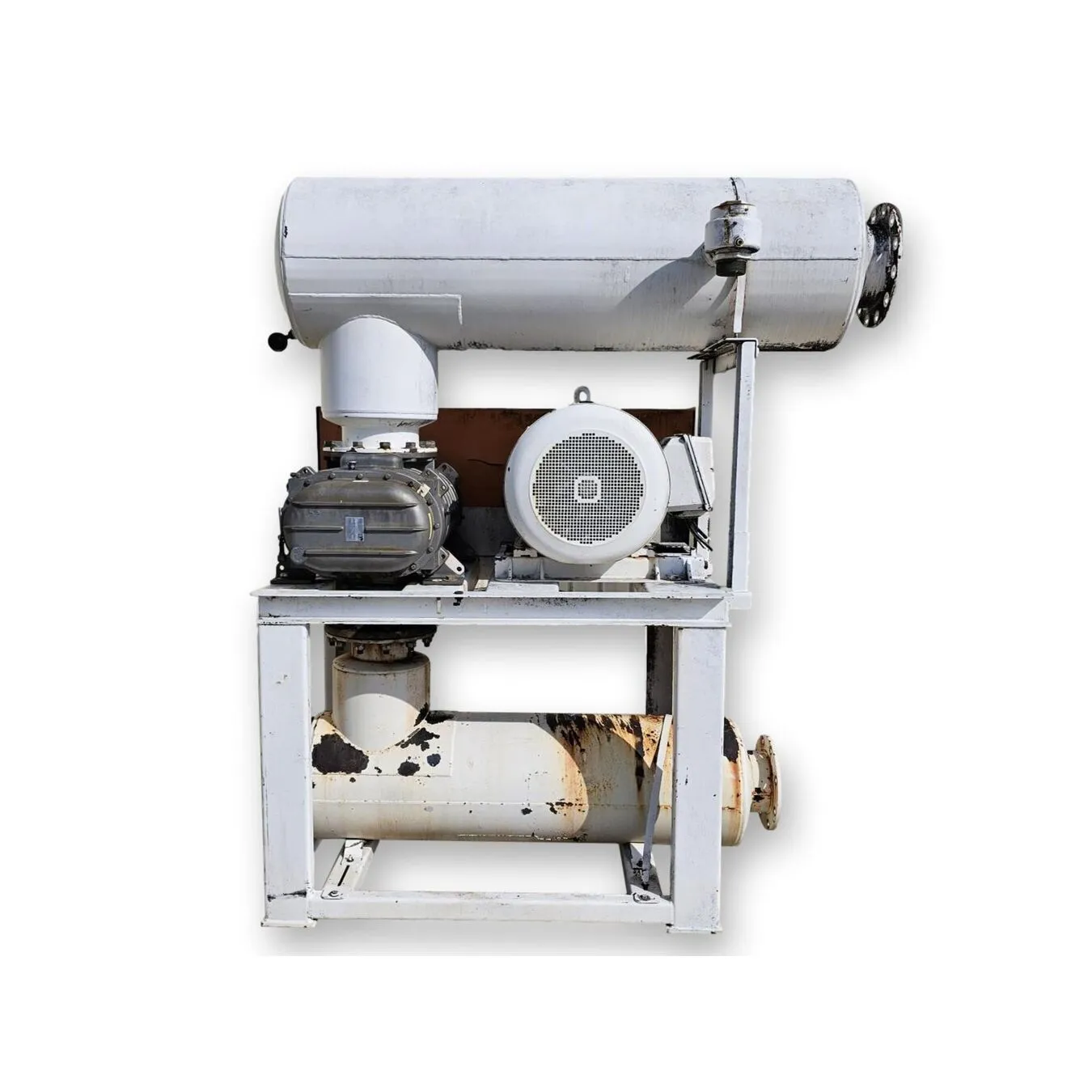

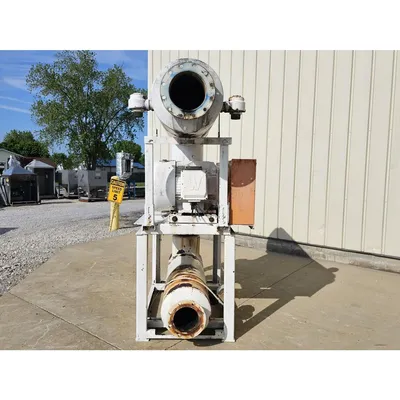

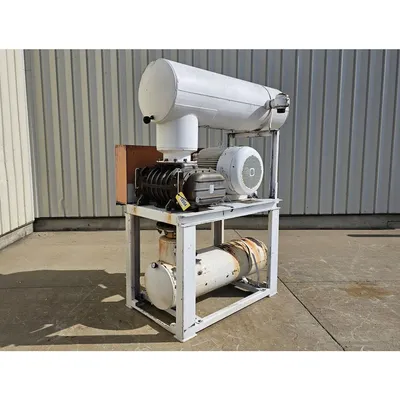

Series 70 horizontal configuration, left-hand drive
Line Connections: (AIR IN) 10"Ø ANSI #150 flange; (AIR OUT) 8"Ø ANSI #150 flange
Inlet & outlet absorptive silencers with pressure reliefs
Flow Range: to 2,309CFM
Max. Pressure: 15PSI
Max. Δ Vacuum: 16″ Hg
Max. Speed: 2,650RPM
Performance Curve on file

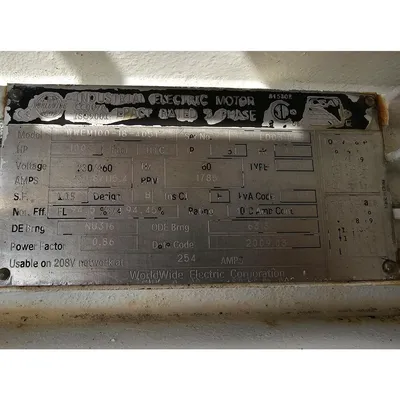

100HP V-belt reduction drive (208-230/460V, 60Hz, 3 ph)
Tubular steel frame assembly, 37"W X 60"L base area

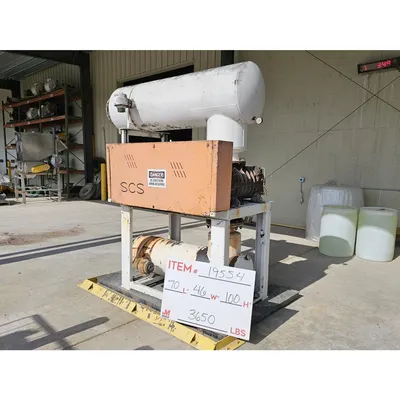

Overall dimensions: 70" L x 46" D x 100" H
Weight = 3,650 LBS.
FOB: Millwood, WV 25262
Item: 19554 Model : 7018
MFG: Gardner Denver
HP: 100
