Blower Configuration: Horizontal, left-hand drive, counter-clockwise rotation
Line Connection: 4"NPT
Air inlet filter with inlet & outlet chamber-absorption silencers.

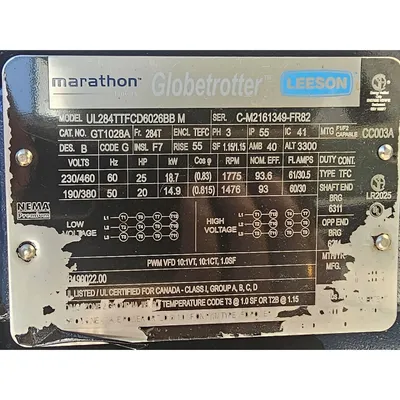

25HP V-belt drive (230/460V, 60Hz, 3ph, 284T frame, 1775RPM)
Welded mild steel base assembly 32"W X 44"L.
Blower speed: 2,253RPM
Performance pressure curve on file.
Overall dimensions: 68x34x65" H
Weight = 1,102 LBS
FOB: Millwood, WV 25262

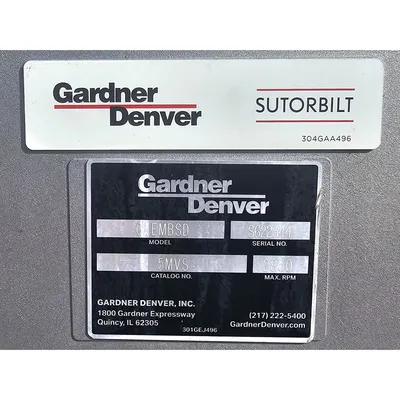

Item: 20400 Model : GAEMBSD
MFG: Gardner Denver
HP: 25
