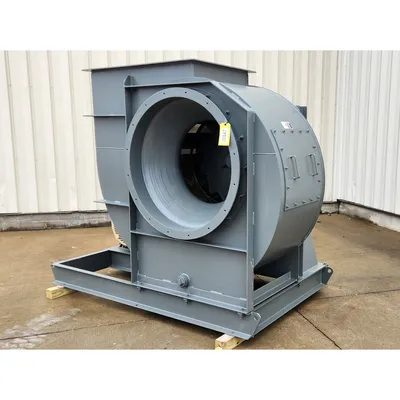

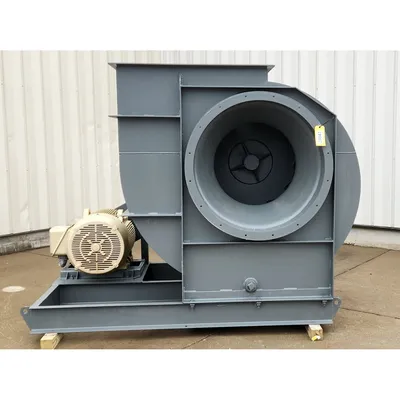

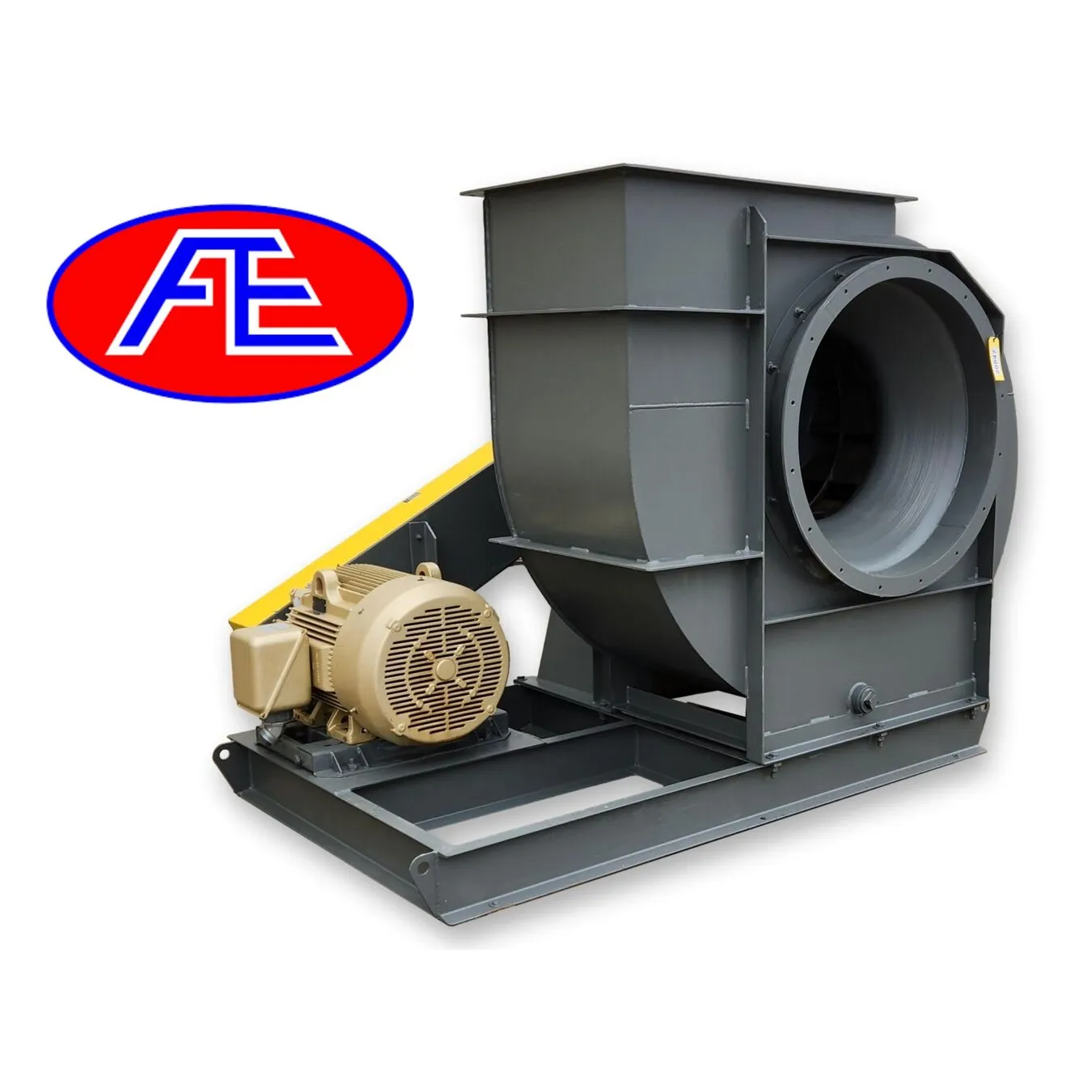

USED FAN EQUIPMENT CO. BCS

High-efficiency output for dust collection and air handling applications.
Fan Type: BCS; Fan Size: 6 1/2

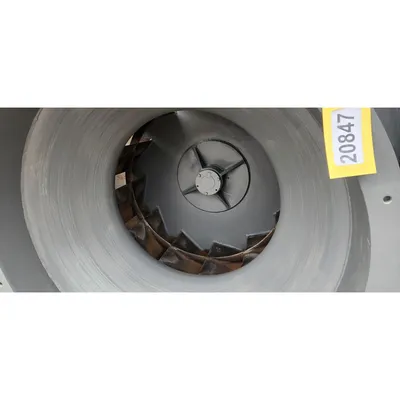

Wheel: Ø42" flat blade backward incline, welded carbon steel
Fan Speed: 1,451RPM (1,570RPM max.)
Inlet: Ø40.25" flange with inlet funnel
Discharge: 30" X 45.5" flange
Structural steel base frame assembly, measuring 61" X 95".

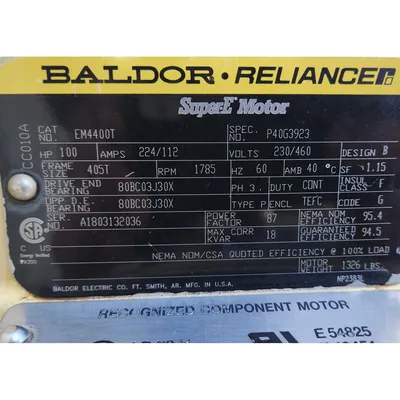

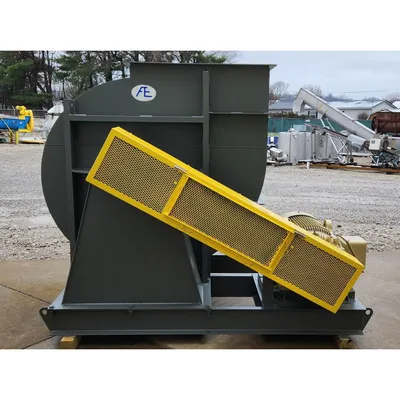

100HP V-belt drive (230/460V, 60Hz, 3ph)
Includes isolation springs, bottom drain, and side panel.
Overall dimensions: 113" L x 72" W x 87" H.
Weight = 4,652 LBS.

FOB: Millwood, WV 25262

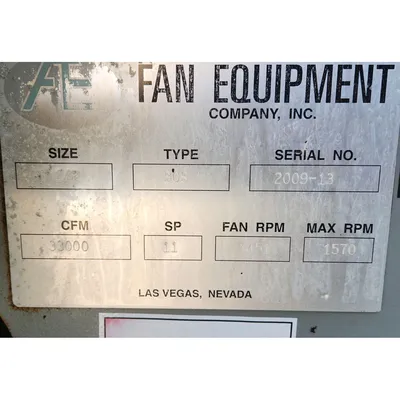

Item: 20847      Model :   BCS
 MFG: Fan Equipment Co.

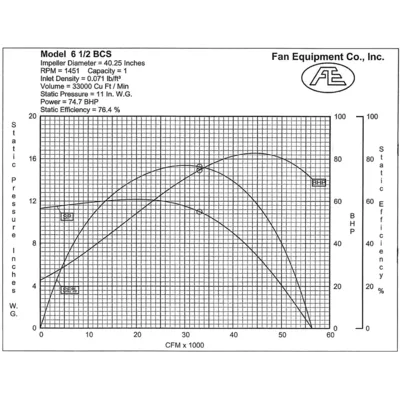

 CFM: 33000
  Static Pressure: 11
