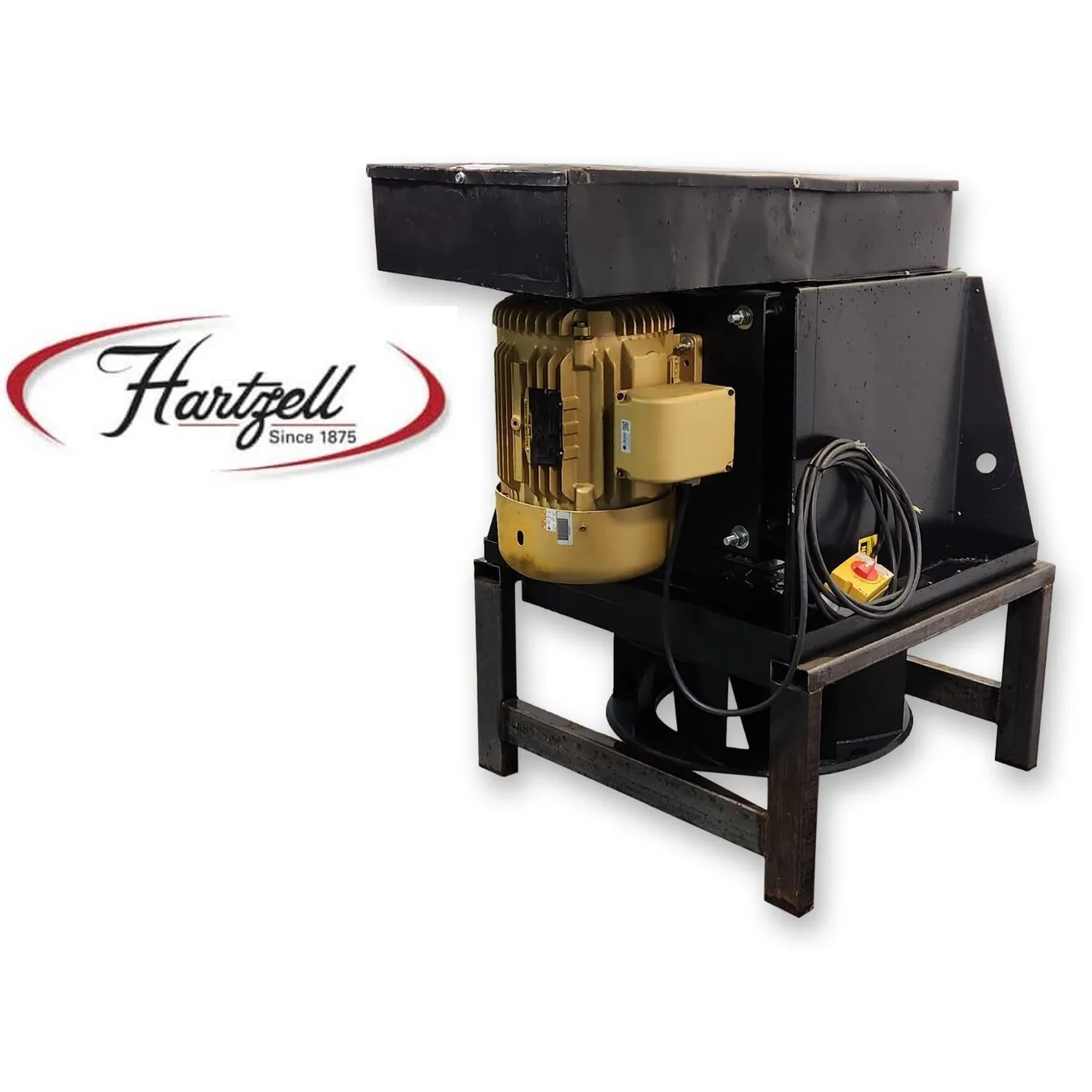

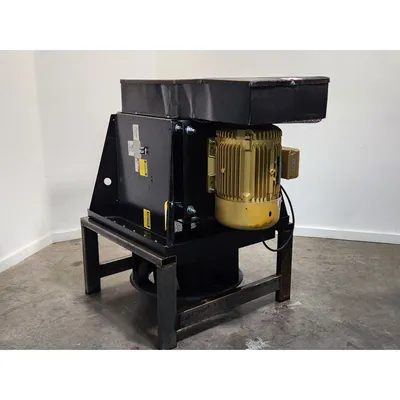

NEW HARTZELL AIR MOVEMENT A12-9

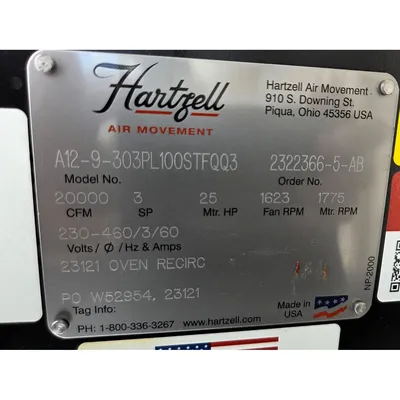

Order No: 2322366-5-AB
Arrangement 9 (unhoused configuration)
Wheel: 30"Ø type PL backward curve single thickness airfoil, 1,623RPM speed
Plug Panel: standard 39" square with inlet cone

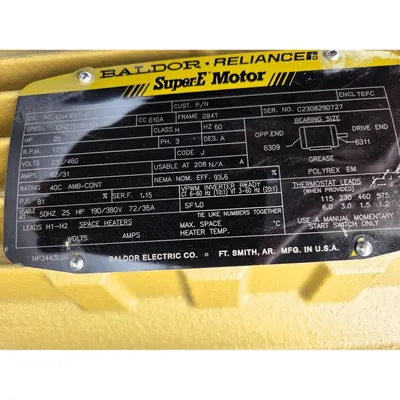

25HP V-belt drive, with guard (230/460V, 60Hz, 3ph, 284T frame)

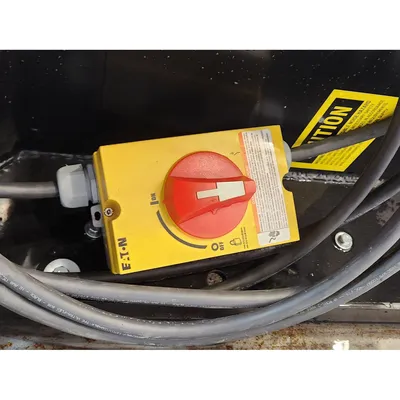

Installed 30Amp rotary disconnect switch and outboard bearing lube ports.
VPWM inverter ready – speed controllers sold separately.

FOB: Millwood, WV 25262

Item: 21389      Model :   A12-9
 MFG: Hartzell Air Movement
 CFM: 20000
  Static Pressure: 3
