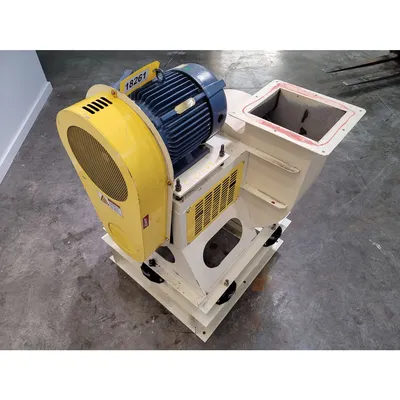

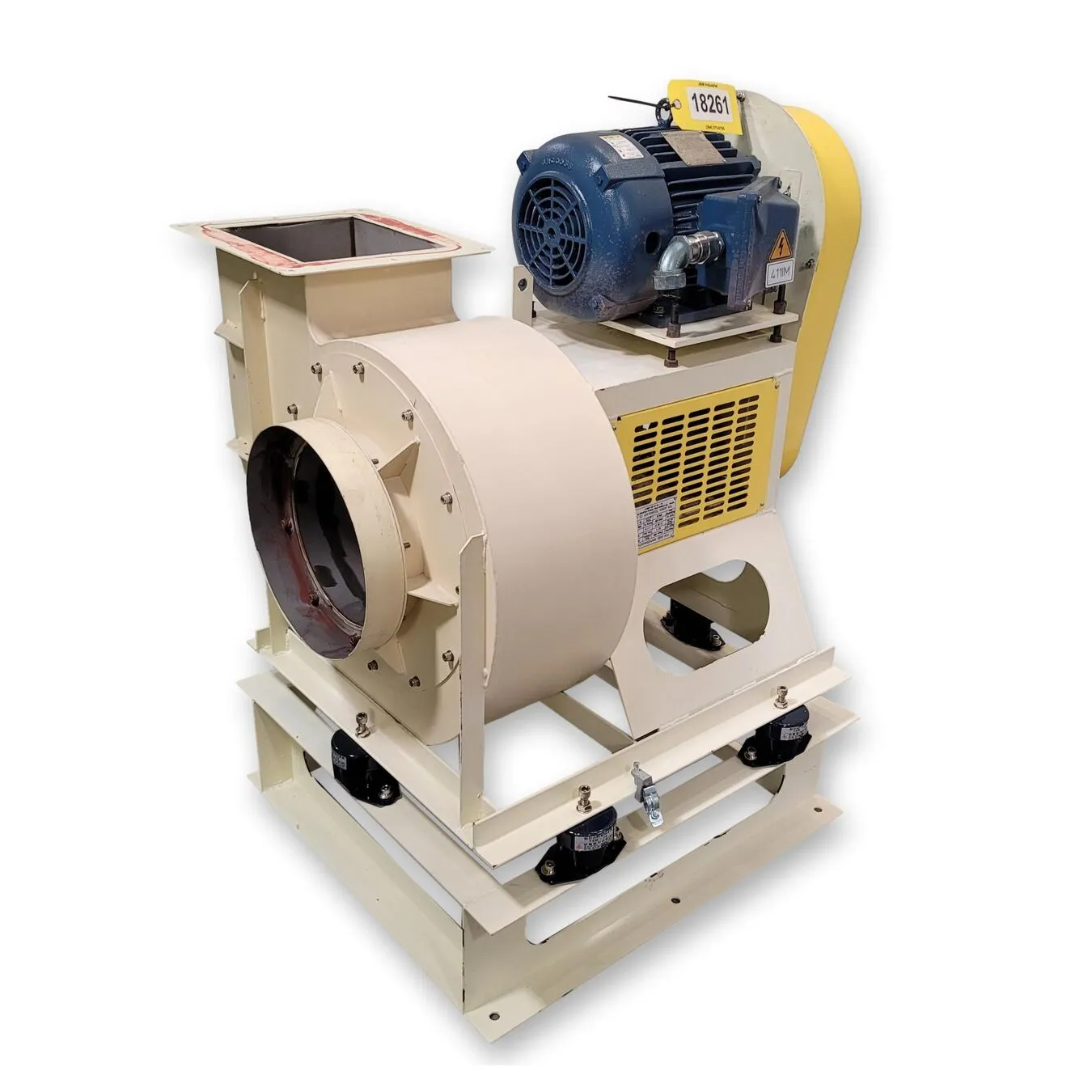

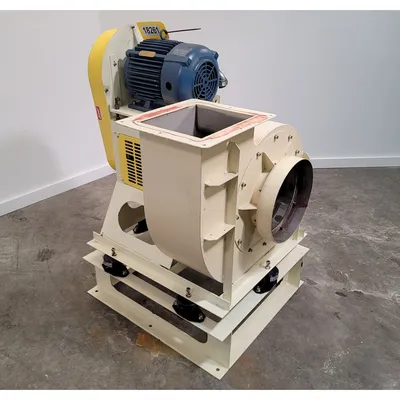

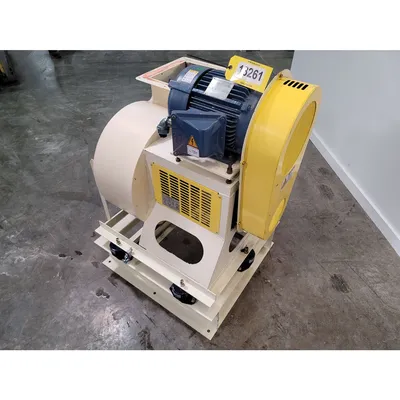

USED KOREA FAN ENGINEERING CO. KR. FDB-046S

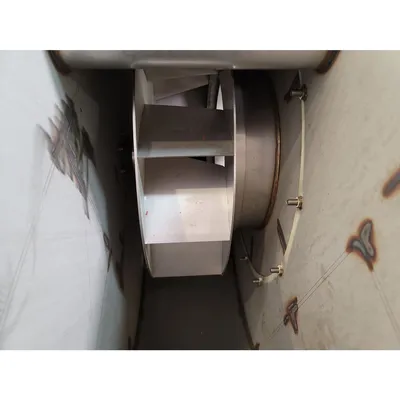

Stainless steel housing and wheel with CCW rotation

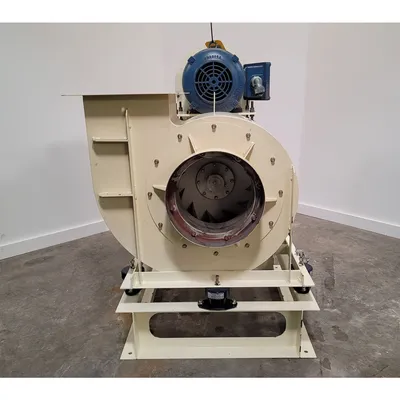

Inlet: 11"Ø flange with sleeve adapter
Outlet: 11.75" X 10" flanged up-blast

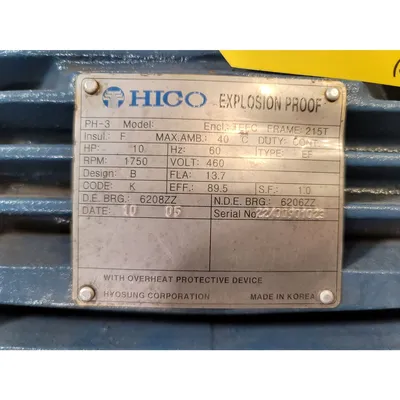

1780RPM explosion-proof motor with 5:3 belt reduction drive
Fan shaft supported by twin pillow block bearings
Welded mild steel base frame with six vibration isolators
Base footprint measures 31.5"W X 33.5"L
Supply: 460VAC, 60Hz, 3ph

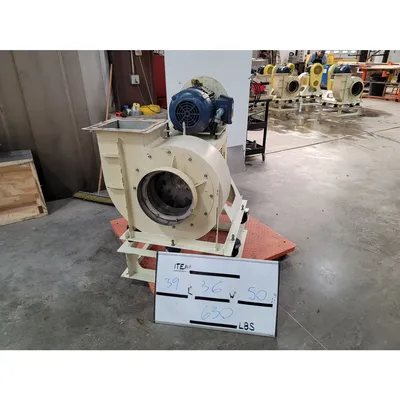

Overall dimensions: 39' long x 36" wide x 50" high.
Weight = 630 lbs.

FOB: Millwood, WV 25262

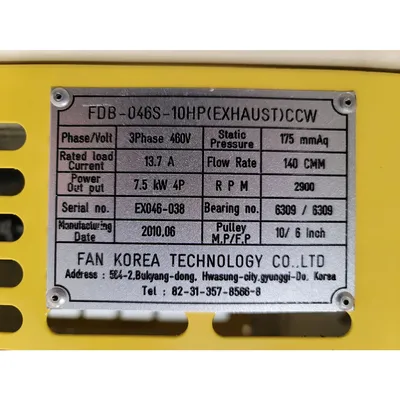

Item: 18261      Model :   FDB-046S
 MFG: Korea Fan Engineering Co. KR.
 CFM: 5000
  Static Pressure: 7
